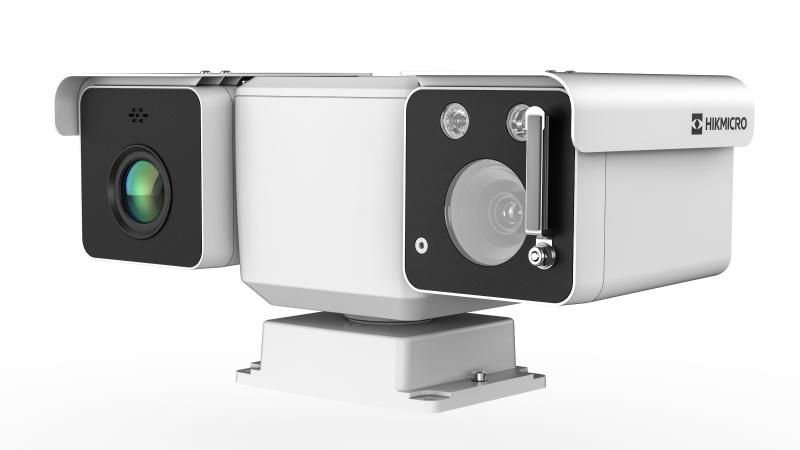

Hikvision Bi-spectrum Thermography Mini Positioning system HM-TD5567T-25/W

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 640 × 512; Pixel Pitch: 17 μm; Spectral Range: 8 μm to 14 μm; NETD: ≤ 35 mK (25°C, F# = 1.0); Focal Length: 25 mm; IFOV: 0.68 mrad; Aperture: F1.0; Field of View: 24.9°(H)*20°(V); Min. Focusing Distance: 1.5 m; Digital Zoom: ×2, ×4, ×8; Image Sensor: 1/2.8″ Progressive Scan CMOS; Resolution: 2688 × 1520, 4MP; Min. Illumination: Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON); Field of View: 58.4° × 33.8° (H × V) to 2.14° × 1.2° (H × V); Focal Length: 4.8 to 153 mm, 32x; Aperture (Range): F1.2 to F4.4; Focus Mode: Semi-auto, manual; Digital Zoom: ×2, ×4, ×8, ×16; Shutter Speed: 1 s to 1/100,000 s; WDR: 120 dB; Optical Defog: Yes; Picture in Picture: Display partial image of thermal channel on the full screen of optical channel; Target Coloration: Yes. Supported in white hot and black hot mode.; Movement Range: Pan: 360° Continuous Rotate; Tilt: From -90° to + 90° (auto flip); Pan Speed: Configurable, From 0.5°/s to 90°/s; Tilt Speed: Configurable, From 0.5°/s to 40°/s; Proportional Zoom: Yes; Presets: 300; Patrol Scan: 8 patrols; Up to 32 presets per patrol; Power Off Memory: Yes; Park: Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan; PT Status: Turn On/Turn Off; Scheduled Task: Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output; IR Distance: Up to 30 m; IR Intensity and Angle: Automatically adjusted; VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.; Temperature Measurement: 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line); Temperature Range: -20°C to 550°C (-4°F to 1022°F); Temperature Accuracy: Max (± 2°C, ±2%); Fire Detection: Dynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.; Main Stream: Optical channel
50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel
50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288); Sub-stream: Optical channel
50 Hz: 25fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 576, 352 × 288)
Thermal channel
50 fps (704 × 576, 640 × 512, 384 × 288); Video Compression: Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG; Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE; Network Storage: MicroSD/SDHC/SDXC card (up to 128 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); API: ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T); Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users. 3 levels: administrator, operator, user; Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering; Client: iVMS-4200, Hik-Connect; Web Browser: Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0 +, Firefox 52.0 +; Alarm Input: 2-ch inputs (0 to 5 VDC); Alarm Output: 2-ch relay outputs, alarm response actions configurable; Alarm Action: Preset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkage; Audio Input: 1; Audio Output: 1; Communication Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface.
1, RS-485 interface; Menu Language: 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: 24 VDC; Power Consumption: 20 W; Working Temperature/Humidity: -40°C to 70°C (-40°F to 158°F)
90% or less; Wiper: Yes; Protection Level: IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection; Dimensions: 321 mm × 194 mm × 153 mm(12.64″ × 7.64″ × 6.02″); : Approx. 4.8 kg (10.582 lb); Detection Range for Humans (1.8×0.5m): 735 m; Detection Range for Vehicles (4.0×1.4m): 2255 m; Recognition Range for Humans (1.8×0.5m): 184 m; Recognition Range for Vehicles (4.0×1.4m): 564 m; Identification Range for Humans (1.8×0.5m): 92 m; Identification Range for Vehicles (4.0×1.4m): 282 m; VCA Range for Humans: 175 m; VCA Range for Vehicles: 525 m; Temperature Measurement Range for Object (2m×2m): 588 m; Temperature Measurement Range for Object (1m×1m): 294 m; Fire Detection Range for Object (2m×2m): 1471 m; Fire Detection Range for Object (1m×1m): 735 m
