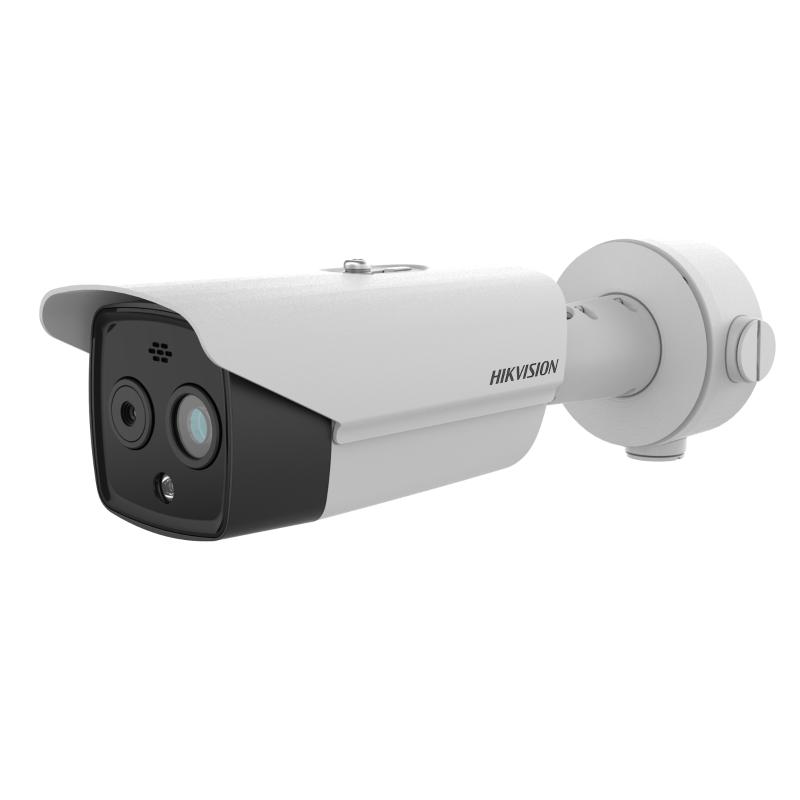

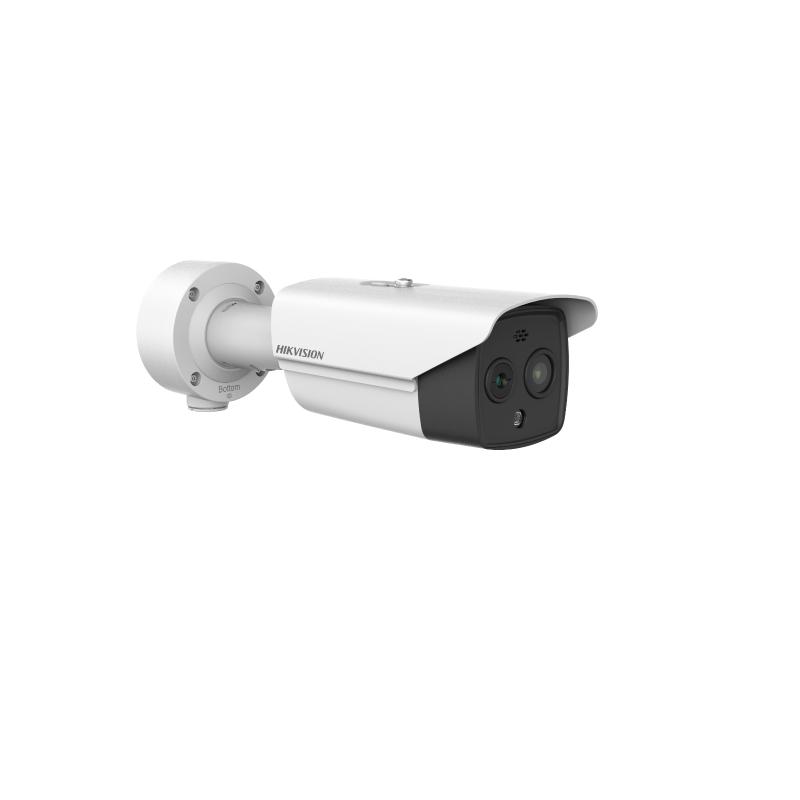

Hikvision Bi-spectrum Thermography Network Bullet Camera DS-2TD2628T-7/QA

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 256 x 192; Pixel Pitch: 12 μm; Spectral Range: 8 μm to 14 μm; NETD: ≤ 40 mK (@25° C,F# = 1.0); Focal Length: 6.9 mm; IFOV: 1.74 mrad; Aperture: F1.0; Field of View: 24.9° × 18.7° (H × V); Min. Focusing Distance: 1 m; Digital Zoom: ×2, ×4; Image Sensor: 1/2.7″ Progressive Scan CMOS; Resolution: 2688 × 1520; Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR; Field of View: 53.0° ×28.0° (H × V); Focal Length: 6.4 mm; Shutter Speed: 1 s to 1/100,000 s; White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light; Day & Night Mode: IR Cut Filter with Auto Switch; WDR: 120 dB; Aperture: F 1.6; Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel; Target Coloration: Yes. Supported in white hot and black hot mode.; IR Distance: Up to 30 m; IR Intensity and Angle: Automatically adjusted; White Light Range: Up to 30 m; Visual Alarm: Yes. White light alarm with adjustable flashing frequencies; Audio alarm: Yes, for three types of audible alarm (VCA and Temperature Exception)
3 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types); VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.; Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line); Temperature Range: -20°C to 550°C (-4°F to 1022°F);; Temperature Accuracy: Max (±2°C, ±2 %); General Function: Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter; Main Stream: Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-stream: Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240); Video Compression: Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG; Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS; Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); API: ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T); Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering; Client: iVMS-4200, Hik-Connect; Alarm Input: 2, alarm input (0-5 VDC); Alarm Output: 2, alarm output (alarm response actions configurable); Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage; Audio Input: 1, 3.5 mm Mic in/Line in interface
Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%; Audio Output: Linear level, impedance: 600 Ω; Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex); Analog Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC; Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, 24VDC ± 25%, two-core terminal block
PoE (802.3af, class 3); Power Consumption: 24 VAC ± 25%: 0.8 A, Max.8.5 W
12 VDC ± 25%: 0.7 A, Max.8.5 W
24VDC ± 25%: 0.22A to 0.75 A, max. 18W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W; Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less; Protection Level: IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing; Dimensions: 321.3 mm × 106.1 mm × 107.0 mm (12.65″ × 4.18″ × 4.21″); : 1550 g (3.41 lb); VCA Range for Humans: 56 m; VCA Range for Vehicles: 168 m; EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
KC (KSC9832: 2019; KSC9835: 2019)
FCC (ANSI C63.4;FCC Part15 sub B); Safety: CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.); Environment: CE-RoHS：2011/65/EU,
WEEE: 2012/19/EU,
Reach：Regulation(EC) No 1907/2006; Protection: IP67: IEC 60529-2013
IK10: IEC 62262-2002
