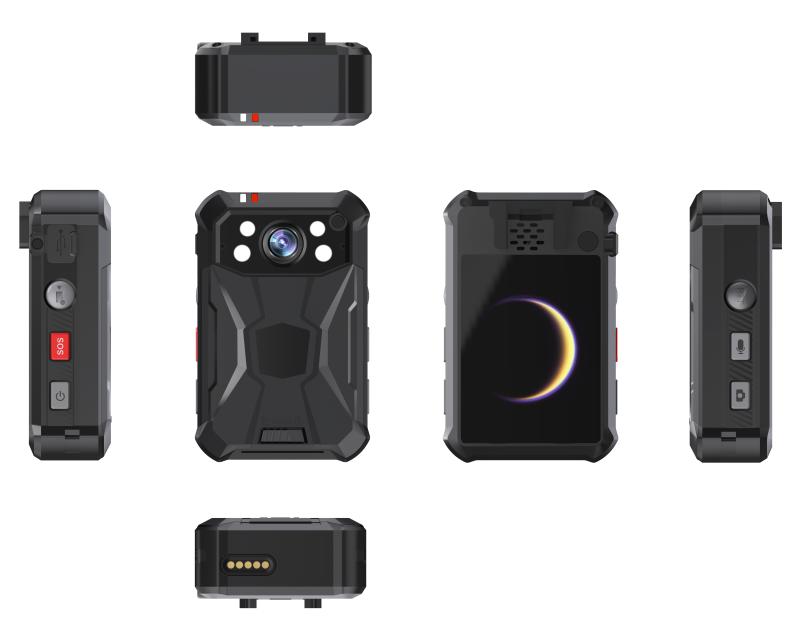

Hikvision Body Camera DS-MCW409/32G/GLE©

Specifications

CPU: 8 cores,
64 bit,
Main frequency: 1.8 GHz; Image Sensor: 1/3″ progressive scan CMOS; Max. Recording Resolution: 2688 × 1512; Min. Illumination: Color: 0.11 Lux @ (F22, AGC ON), 0 Lux with supplement light; Day & Night: Switch IR cut filter automatically; White Light: Supported; Aperture: F2.2; FOV: Horizontal FOV: 132°, Vertical FOV: 72°, Diagonal FOV: 148°; Focal Length: 2.4 mm fixed lens; Main Stream: 60 Hz: 30 fps / 15 fps / 5fps (2688 × 1512, 1920 × 1080, 1280 × 720, 720 × 576); Pre-record & Post-record: Pre-record: 60/10/5/3 s,
Post-record: 60/10/5/3 s; Sub-Stream: 30 fps (1280 × 720, 720 × 576); Video Compression: H.264,H.265; Video Format: MP4,PS; Audio Bit Rate: G722(16 kbps) ,AAC(dynamic),PCM(256 kbps),G711.A(64 kbps) ,G711.U(64 kbps); Audio Compression for Video Recording: AAC,G722; Audio Compression for Audio Recording: PCM; Audio Compression for Group Intercom: G711.A,G711.U,G722; Image Format: JPEG; Resolution: 40 M (8832 × 4960),30 M (7296 × 4104),16 M (5312 × 2988),5 M (3072 × 1728); Image Stabilization Algorithm: GIS: Optional; Screen Size: 2.4″; Touchscreen: Supported; Display Resolution: 320 × 240; Screen Brightness: Typical value: 540 cd/m²; RAM: 2 GB; ROM: 32 GB by default, 64/128/256 GB optional; IR Range: Up to 10 m,Illumination range greater than 90%; IR Wavelength: 850 nm; Wi-Fi Protocol: 802.11 a/b/g/n/ac; Positioning Mode: GPS; Wi-Fi Frequency Band: 2.412 to 2.472 GHz,5.15 to 5.25 GHz,5.725 to 5.875 GHz; Bluetooth: BT4.0; Cellular Network: GSM: 850/900/1800/1900,WCDMA: B1/B2/B4/B5/B8, FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28, TDD-LTE: B38/B39/B40/B41; NFC: Optional; API: ISAPI,SDK,ISUP; Protocol: HTTPS, RTSP, NTP, FTP; Encryption: AES128, AES256; Watermark: Supported; Button: Power,Video recording,PTT,SOS,Picture capture,Audio recording; Charging Interface: Type-C, Pogo Pin; Indicator: 2 indicator(s) for charging/working/recording/exception; Laser Positioning: Supported; SIM Card: 1 Nano-SIM card(s); USB: 1 USB 2.0 port(s); Audio Type: 2 built-in mic(s),1 speaker(s); Face Picture Capture: Supported; Face Picture Recognition: Optional; License Plate Recognition: Optional; Basic Event: SOS alarm; Group Intercom: Supported for firmware version V2.6.0 or above; Power: 5 VDC, 2.0 A, max. 10 W; : 194.5 g (without mounting) (0.4 lb.); Dimensions: 92.8 mm × 59.7 mm × 28.5 mm (3.7″ × 2.4″ × 1″); Speaker: 1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 95 dB (10 cm); Client: HikCentral Pro,HikCentral Master; Operating System: Android 9.0; Operating Condition: -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing); Vibration Motor: Not supported; Gyroscope: Optional; Battery Type: Lithium-ion battery, dismountable; Capacity: 3300 mAh; Charging Time: ≤ 4 h; Battery Life: Up to 12h in 720p resolution¹; Embedded Sub-Battery: 50 mAh,Models with SE are not supported.; EMC: CE-EMC: EN 55032: 2015,EN 61000-3-2: 2019,EN 61000-3-3: 2013,EN 50130-4: 2011 +A1: 2014; Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,CE-RoHS: EN IEC63000:2018; Protection: IP68: IEC 60529-2013; RF: EN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G),EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013,EN 50130-4:2011+A1:2014),CE-RED: EN 300 330V2.1.1; Safety: CB: IEC 62368-1: 2014+A11,IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014/A11: 2017,EN IEC 62368-1:2020+A11:2020,CE-LVD: EN 62368-1: 2014/A11: 2017; Drop Test: MIL-STD-810G,
2 m drop test; Warranty: 2 years for the device without battery, 1 year for the battery
