The Hikvision DS-1CK6U180T is a specialized network camera designed for panoramic surveillance. It features a high-resolution sensor and a 180-degree field of view, providing seamless, wide-area coverage. The camera is equipped with advanced video analytics and is ideal for monitoring large spaces like plazas, parking lots, and campuses. It delivers clear images and intelligent features for enhanced security.
Copper Cables

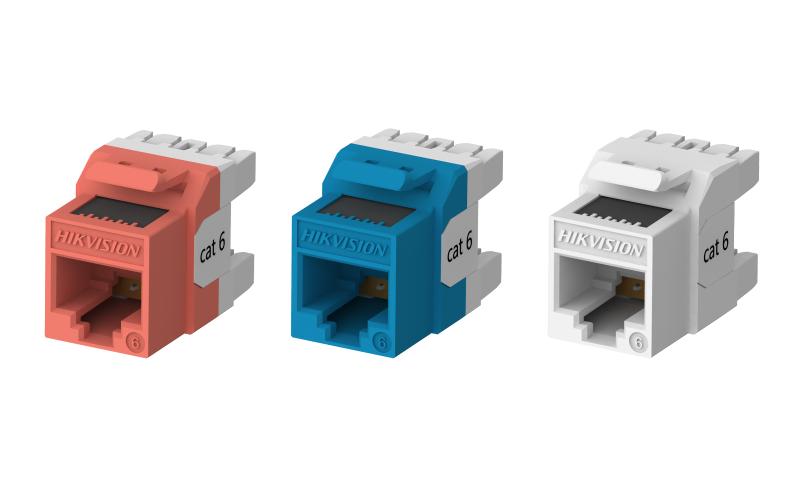

Hikvision Cat6 Unsheilded 180° Punch Down Keystone Jack (DS-1CK6U180T; DS-1CK6U180T; DS-1CK6U180T)
Hikvision DS-1CK6U180T panoramic network camera. 180-degree FOV with high-resolution and advanced analytics for wide-area surveillance.
Specifications
Product Category: Keystone Jack; Fire resistance: UL 94 V-0; Color: White, Blue, Orange; ANSI/TIA Category: 6; Cable Type: Unshielded; Conductor Type: Solid, Stranded; Integrated Dust Cover Type: None; Termination Type: IDC; Wiring: TIA 568A, TIA 568B; Material Type: Conductor: Phosphor Bronze
Housing: PC
IDC: PC
IDC Cap: PC; Termination Contact Plating: 50 u inch gold; DC resistance: ≤ 20 mΩ; Current Rating: 1.5 A @ 20 °C; Dielectric Withstand Voltage, RMS, conductive surface: 1,000 Vac @ 60s; Dielectric Withstand Voltage, RMS, contact-to-contact: 1,000 Vac @ 60s; Insulation Resistance, minimum: 500 MΩ; Plug to Jack Mating Cycles: ≥ 750 times; Height: 20.05 mm; Width: 16.80 mm; Depth: 27.40 mm; Compatible Conductor Gauge, solid: 22-24 AWG; Compatible Conductor Gauge, stranded: 22-24 AWG; Operating Temperature: -10 °C to +60 °C; Storage Temperature: -40 °C to +68 °C; Relative Humidity: 10%~90%; Packaging Type: Box; Package dimension: 160 x 110 x 98 mm; Packaging quantity: 50; : 7g/pcs
420g/Box
DataSheet
Related products
-
Copper CablesAcheter via Whatsapp

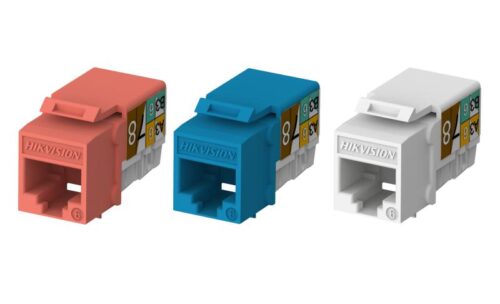

Hikvision Cat6 Unsheilded 90° Punch Down Keystone Jack (DS-1CK6U90T; DS-1CK6U90T; DS-1CK6U90T)
