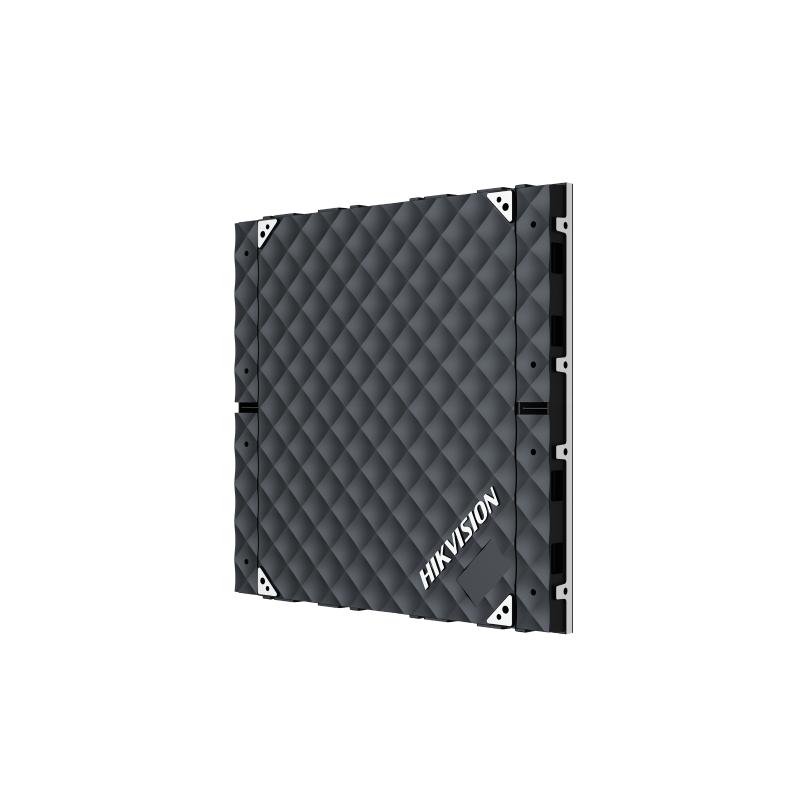

Hikvision DS-D4019CD-1F 500*500/mm DS-D4019CD-1F

Specifications

Pixel Configuration: SMD Triad LED; Pixel Pitch Category: P1.9; Pixel Pitch: 1.9531 mm; Modules Component: 2 × 2; Dimensions (W × H × D): 500 mm × 500 mm × 50 mm (19.685″ × 19.685″ × 1.969″); Resolution: 256 × 256; Area: 0.25 m²; : 5.6 KG (12.346 lb); Pixel Density: 262144‬ dots/m²; Lamp Board Housing: With housing; Cabinet Material: Aluminum die casting; Maintenance Method: Front maintenance for all components; Cabinet Flatness: 0.1 mm (0.0039″); Protection Level: Front protection level IP60; White Balance Brightness: 800 cd/m² (Peak 1000 cd/m²); Color Temperature: 3000 K to 10000 K adjustable; Viewing Angle: Horizontal 160°, vertical 160°; Contrast Ratio: ≥ 5000:1; Color Uniformity: ≤ ± 0.003Cx，Cy; Brightness Uniformity: ≥ 97％; Driving Method: Constant current driving; Frame Frequency: 60 Hz; Refresh Rate: Up to 3840 Hz; Grey Level: Up to 18 bit; Display Color: 281 trillion; Power Supply: 110~220 VAC ± 15%; Max. Consumption: ≤ 582 W/m²; Average Consumption: < 194 W/m²; Working Temperature: -10 to 40 °C (14 °F to 104 °F); Working Humidity: 10%~80%RH; Storage Humidity: 10%~80%RH; Storage Temperature: -20 to 60 °C (-4 °F to 140 °F); Gross Weight: 9.4 kg (34.488" × 5.354" × 12.992") (Carton，1 cabinet in 1 box) 95 kg (36.023" × 40.984" × 27.755") (Carton，10 cabinets in 1 box); Package Dimension (W × H × D): 876 mm × 136 mm × 330 mm (34.488" × 5.354" × 12.992") (Carton，1 cabinet in 1 box) 1237 mm × 1041 mm × 652 mm (48.700" × 40.984" × 25.669") (Carton，10 cabinets in 1 box); Lifespan: Lamp 100,000 hours; Modular Bracket: DS-DL115050W 1*1;DS-DL215050W 2*1
