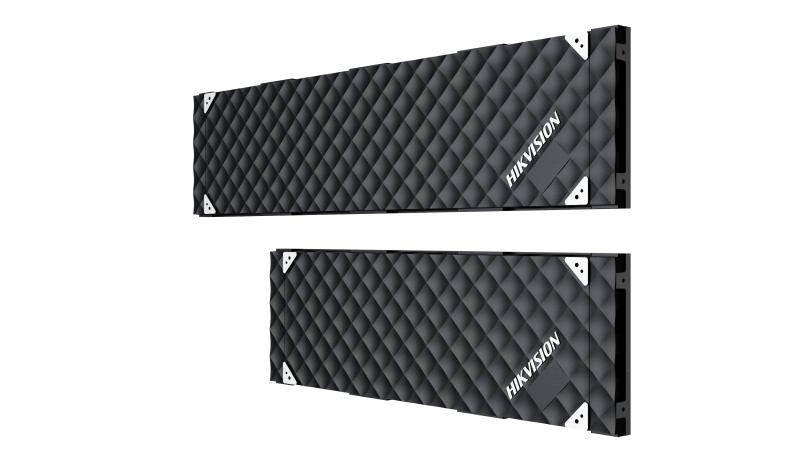

Hikvision DS-D4039CC-1F 1000*250/mm DS-D4039CC-1F

Specifications

Pixel Configuration: SMD Triad LED; Pixel Pitch Category: P3.9; Pixel Pitch: 3.906 mm; Modules Component: 1 × 4; Dimensions (W × H × D): 1000 mm × 250 mm × 50 mm (39.370″ × 9.843″ × 1.969″); Resolution: 256 × 64; Area: 0.25 m² (387.501 in²); : 5.65 Kg (12.456 lb); Pixel Density: 65536 dots/m²; Lamp Board Housing: With housing; Cabinet Material: Aluminium die casting; Maintenance Method: Front maintenance for all components; Cabinet Flatness: 0.1 mm (0.00039″); Protection Level: Front protection level IP60; White Balance Brightness: 800 cd/m² (Peak 1000 cd/m²); Color Temperature: 3000 K to 10000 K adjustable; Viewing Angle: Horizontal 160°, vertical 160°; Contrast Ratio: ≥ 5000:1; Color Uniformity: ≤ ± 0.003Cx，Cy; Brightness Uniformity: ≥ 97％; Driving Method: Constant current driving; Frame Frequency: 60 Hz; Refresh Rate: Up to 3840 Hz; Grey Level: Up to 16 bit; Display Color: 281 trillion; Power Supply: 110 ~ 220 VAC ± 15%; Max. Consumption: ≤ 494 W/m²; Average Consumption: < 165 W/m²; Working Temperature: -10 to 40 °C (14 °F to 104 °F); Working Humidity: 10%~80%RH; Storage Humidity: 10%~80%RH; Storage Temperature: -20 to 60 °C (-4 °F to 140 °F); Gross Weight: 9.3 kg (34.488" × 5.354" × 12.992") (Carton，1 cabinet in 1 box) 94 kg (36.023" × 40.984" × 27.755") (Carton，10 cabinets in 1 box); Package Dimension (W × H × D): 1180 mm × 136 mm × 330 mm (46.456" × 5.354" × 12.992") (Carton，1 cabinet in 1 box) 1237 mm × 1041 mm × 652 mm (48.700" × 40.984" × 25.669") (Carton，10 cabinets in 1 box); Lifespan: Lamp 100,000 hours; Modular Bracket: DS-DL111025W 1*1;DS-DL211025W 2*1
