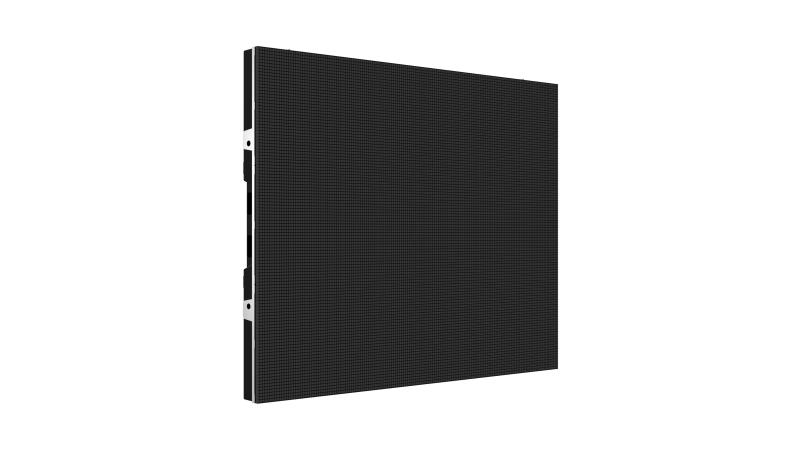

Hikvision DS-D40S-2F 640*480mm

Specifications

Product Model: DS-D4012CS-1F; Product Type: LED Display Structure; Pixel Configuration: SMD Triad LED; Modules Component: 2 × 3; Dimensions (W × H × D): 640 (W) mm × 480 (H) mm ×36 (D) mm (25.197” × 1.898” × 1.42”); Area: 0.3072 ㎡; : 6 kg (13.23 lb.); Cabinet Material: Die cast aluminum; Maintenance Method: Complete front maintenance; Dimension (W × H × D): 320 mm × 160 mm; Module Resolution: 256 × 128; White Balance Brightness: 600 cd/㎡; Color Temperature: 3000-10000 K adjustable; Viewing Angle: 160°(H)/160°(V); Contrast Ratio: 5000:1; Color Uniformity: ≤ ± 0.003Cx，Cy; Brightness Uniformity: ≥ 97％; Driving Method: Constant current driving; Frame Frequency: 60 Hz; Refresh Rate: 3840 Hz; Grey Level: Up to 16 bit; Max. Consumption: 450W/㎡; Average Consumption: 150W/㎡; Input Voltage: 100~240 VAC ± 10％; Working Temperature: -10 ℃ to 40 ℃ (14 ℉ to 104 ℉); Working Humidity: 10% to 60% RH (without condensation); Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉); Storage Humidity: 10% to 85% RH (without condensation); Package Dimension (W × H × D): 760 (W) mm × 318 (H) mm × 587 (D) mm (29.92 ” × 12.52 ” × 23.11 ”); Packing List: Regulatory Compliance and Safety Information × 1
Several Joint pieces,Fixing screws and Signal cables
Several LED lamp beads and IC components; Gross Weight: 4.7 kg (10.3 lb.); Net Weight: 3.7 kg (8.15 lb.); Modular Bracket: DS-DL116448W 1*1;DS-DL126448W 1*2;DS-DL226448W 2*2
