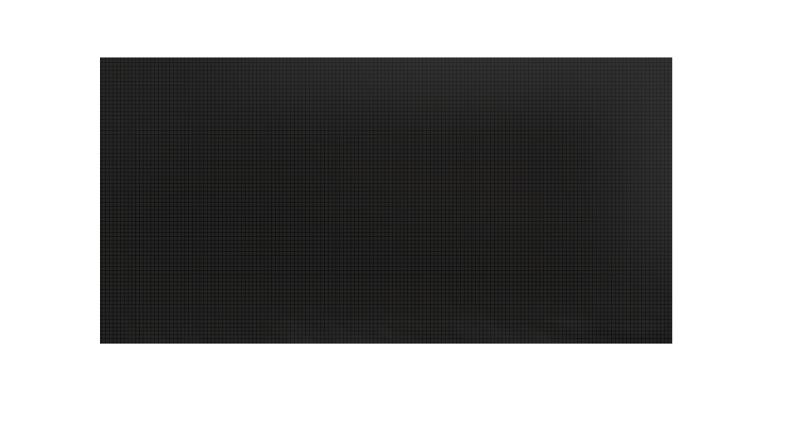

Hikvision DS-D41Q12CA-1GS,Soft LED modules,indoor,1.25mm,320*160mm,3840hz

Specifications

Product Model: DS-D41Q12CA-1GS; Pixel Configuration: SMD Triad LED; Pixel Pitch Category: P1.2; Pixel Pitch: 1.25; Lamp Bead Dimensions: 1010; Dimensions (W × H × D): 320 mm × 160 mm × 13 mm (12.60″ × 6.30″ × 0.51″) (connectors contained); Resolution: 256 × 128; : 0.26 kg; Pixel Density: 640000 dot/m²; Maintenance Method: Front and Rear Maintenance; Signal Source Interface: HUB320; Module Flatness: ≤ 0.3 mm; Waterproof Level: IP30; Component Material: Silicon soft panel; Curvature: Out Arc & Inner Arc ≥ 157°; Blind Spot Rate: < 0.0003, 0 by default; White Balance Brightness: 600cd/㎡; Color Temperature: 3000 K to 10000 K adjustable; Viewing Angle: 160°(H)/160°(V); Brightness Uniformity: ≥ 97%; Color Uniformity: ≤ ± 0.003Cx，Cy; Contrast Ratio: 3000:1; Refresh Rate: 3840 Hz; Optimal View Distance: 1.6 m to 4.2 m; Power Interface: VH4PIN; Driving Method: Constant current driving; Scanning Amount: 64S; Frame Frequency: 60 Hz; Grey Level: Up to 16 bit; Max. Consumption: 450W/m²; Average Consumption: 150W/m²; Input Voltage: AC 100 V to 240 V~; Working Voltage: DC 4.5 V to 5 V; Modular Max. Consumption: 23 W; Modular Max. Current: 5 A; Working Temperature: -10 ℃ to 40 ℃ (14 ℉ to 104 ℉); Working Humidity: 10% to 80% RH (without condensation); Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉); Storage Humidity: 10% to 85% RH (without condensation); Package Dimensions (W × H × D): 634 (W) mm × 410 (H) mm × 380 (D) mm (24.96 '' × 16.14 '' × 14.96 ''); Packing Method: 48 modules in 1 package; Packing List: Lamp beads, Driver IC, signal cables, 5 V power cables，protective sticker; Gross Weight: 0.32 kg (0.71 lb); Net Weight: 0.26 kg (0.57 lb); Min. Diameter: 815 mm
