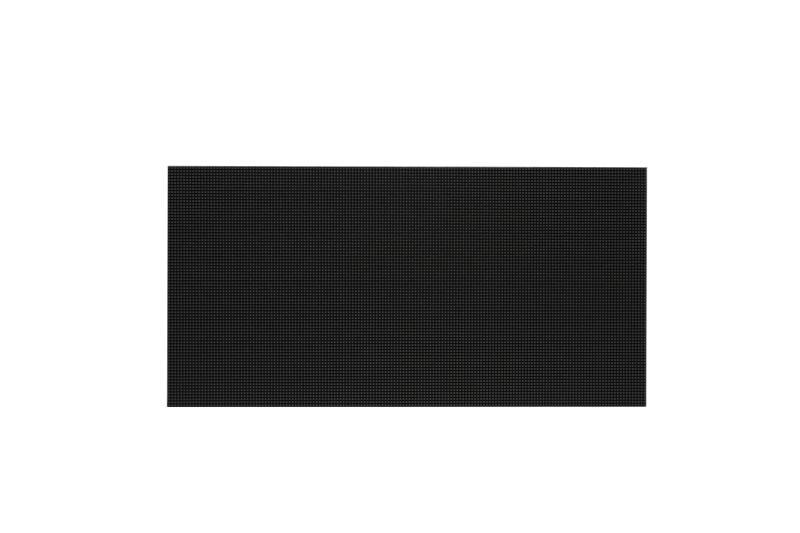

Hikvision DS-D41Q12CA-1PH,indoor,1.2mm,320*160mm,3840hz

Specifications

Product Model: DS-D41Q12CA-1PH; Pixel Configuration: SMD Triad LED; Pixel Pitch Category: P1.2; Pixel Pitch: 1.25 mm; Lamp Bead Dimensions: 1010; Dimensions (W × H × D): 320 mm × 160 mm × 17 mm; Resolution: 256 × 128; Pixel Density: 640000; Signal Source Interface: HUB320; White Balance Brightness: 550cd/㎡; Color Temperature: 3000—10000K adjustable; Viewing Angle: 160°(H)/160°(V); Brightness Uniformity: ≥97%; Color Uniformity: ≤ ± 0.003Cx，Cy; Contrast Ratio: 3000:1; Refresh Rate: 3840 Hz; Scanning Amount: 64; Grey Level: Up to 16 bit; Max. Consumption: ≤ 600 W/㎡; Average Consumption: ＜ 290 W/㎡; Input Voltage: DC：4.5~5V; Working Temperature: -10 ℃ to 40 ℃ (14 ℉ to 104 ℉); Working Humidity: 10% to 80% RH (without condensation); Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉); Storage Humidity: 10% to 85% RH (without condensation); Package Dimensions (W × H × D): 673 (W) mm × 248 (H) mm × 390 (D) mm（20 cabinets in 1 box）; Packing List: Several high magnetic brackets
Several LED lamp beads and IC components

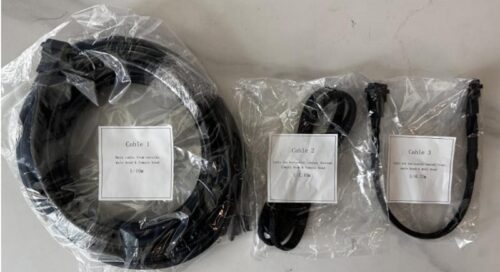

Several signal cables and power cables; Gross Weight: 0.55 Kg; Net Weight: 0.48 Kg; : 0.48 Kg
