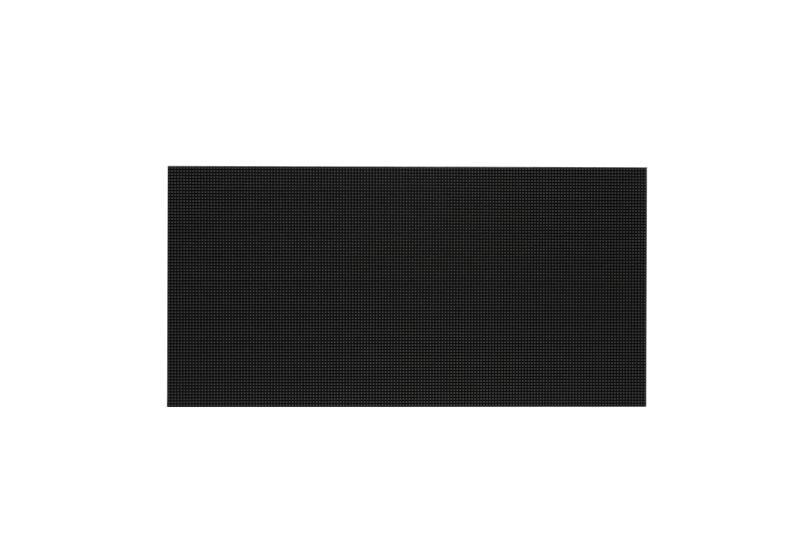

Hikvision DS-D41Q18CA-1PHT，1.86mm，edge-cut

Specifications

Product Model: DS-D41Q18CA-1PHT; Pixel Configuration: SMD Triad LED; Pixel Pitch Category: P1.8; Pixel Pitch: 1.86 mm; Lamp Bead Dimensions: 1515; Dimensions (W × H × D): 320 mm × 160 mm × 16.6 mm(12.6” × 6.3” × 0.65”); Resolution: 172 × 86; Pixel Density: 288906; Signal Source Interface: HUB75E; White Balance Brightness: 550cd/㎡; Color Temperature: 3000—10000K adjustable; Viewing Angle: 160°(H)/160°(V); Brightness Uniformity: ≥97%; Color Uniformity: ≤ ± 0.003Cx，Cy; Contrast Ratio: 3000:1; Refresh Rate: 3840 Hz; Scanning Amount: 43; Grey Level: Up to 16 bit; Max. Consumption: ≤ 600 W/㎡; Average Consumption: ＜ 290 W/㎡; Input Voltage: DC：4.5~5V; Working Temperature: -10 ℃ to 40 ℃ (14 ℉ to 104 ℉); Working Humidity: 10% to 80% RH (without condensation); Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉); Storage Humidity: 10% to 85% RH (without condensation); Package Dimensions (W × H × D): 673 (W) mm × 453 (H) mm × 390 (D) mm(26.496″ × 17.834″ × 15.354″)（40 cabinets in 1 box）; Packing List: Several LED lamp beads and IC components
Several signal cables and power cables; Gross Weight: 0.61 kg (1.34 lb); Net Weight: 0.48 kg (1.06 lb)
