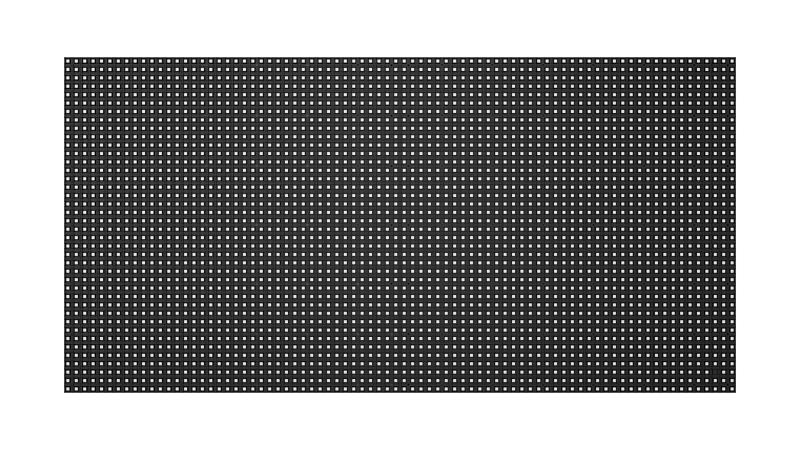

Hikvision DS-D43Q50CA-1PH,outdoor,5.0mm,320*160mm,3840hz

Specifications

Pixel Configuration: SMD Triad LED; Pixel Pitch Category: P5.0; Pixel Pitch: 5 mm; Dimensions (W × H × D): 320 mm × 160 mm x 17.3 mm; Resolution: 64 × 32; Pixel Density: 40000 dots/m²; Maintenance Method: Back maintenance; Signal Source Interface: HUB75E; Module Flatness: 0.2 mm; Waterproof Level: IP65 (Front); Lamp Encapsulation: 1921; Control System: DS-D42C08-H
DS-D42C16-H; White Balance Brightness: 4500cd/㎡; Color Temperature: 2000～14000K adjustable; Viewing Angle: Horizontal 140°, vertical 120°; Contrast Ratio: ≥ 5000:1; Color Uniformity: ≤ ± 0.003Cx，Cy; Brightness Uniformity: ≥ 97％; Driving Method: Constant current driving; Frame Frequency: 60 Hz; Refresh Rate: Up to 3840 Hz; Grey Level: Up to 14 bit; Power Supply: 110~220 VAC ± 15%; Max. Consumption: ≤ 500 W/m² (4500nits); Average Consumption: ≤ 170 W/m² (4500nits); Working Temperature: -20 ℃ to 50 ℃ (-4 ℉ to 120 ℉); Working Humidity: 10%~80%RH; Storage Humidity: 10%~90%RH; Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉); Package Dimensions (W × H × D): 634 (W) mm × 410 (H) mm × 380 (D) mm (25 ” × 16 ” × 15 ”); Net Weight: 22450g (40pcs in 1); : 22.45Kg(40pcs in 1)
