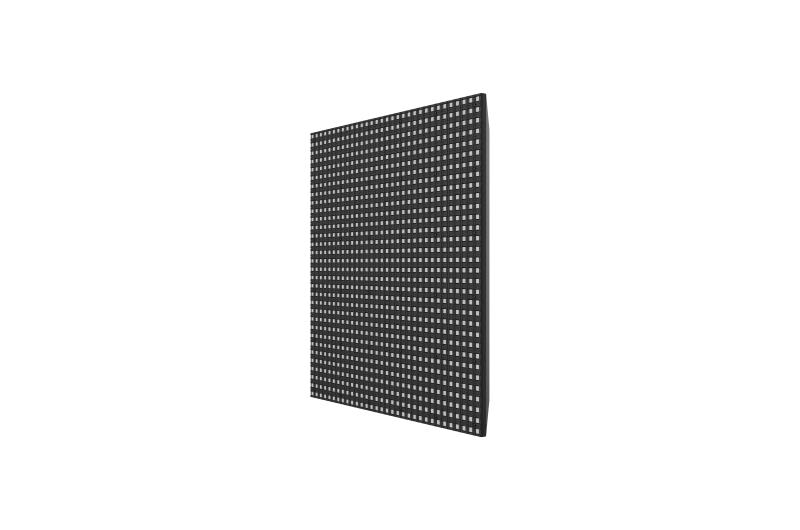

Hikvision DS-D43Q50CA-1PHT,Outdoor 45° cutting Angle, 5.0mm, 160*160mm

Specifications

Pixel Configuration: SMD Triad LED; Pixel Pitch Category: P5.0; Pixel Pitch: 5 mm; Dimensions (W × H × D): 160 mm × 160 mm x 21 mm; Resolution: 32 × 32; Pixel Density: 40000 dots/m²; Maintenance Method: Back maintenance; Waterproof Level: IP65 (Front); Lamp Encapsulation: 1921（Copper）; Control System: DS-D42C08-H
DS-D42C20-H; White Balance Brightness: 4500cd/㎡; Color Temperature: 2000K～14000K adjustable; Viewing Angle: Horizontal 160°, vertical 140°; Contrast Ratio: ≥ 3000:1; Color Uniformity: ≤ ± 0.003Cx，Cy; Brightness Uniformity: ≥ 95％; Driving Method: Constant current driving; Frame Frequency: 50/60 Hz; Refresh Rate: Up to 3840 Hz; Grey Level: 13-15bit adjustable; Power Supply: DC4.5V~5V; Max. Consumption: ≤580 W/m² (4500nits); Average Consumption: ≤193 W/m² (4500nits); Working Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉); Working Humidity: 10%~90%RH（No condensation）; Storage Humidity: 10%~90%RH（No condensation）; Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
