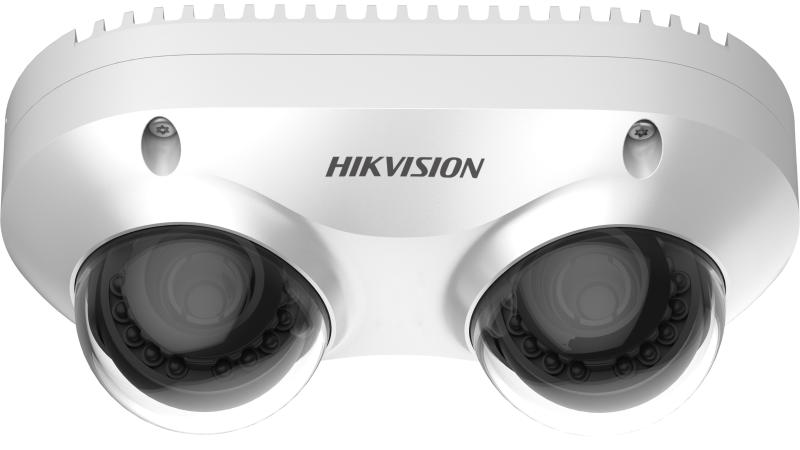

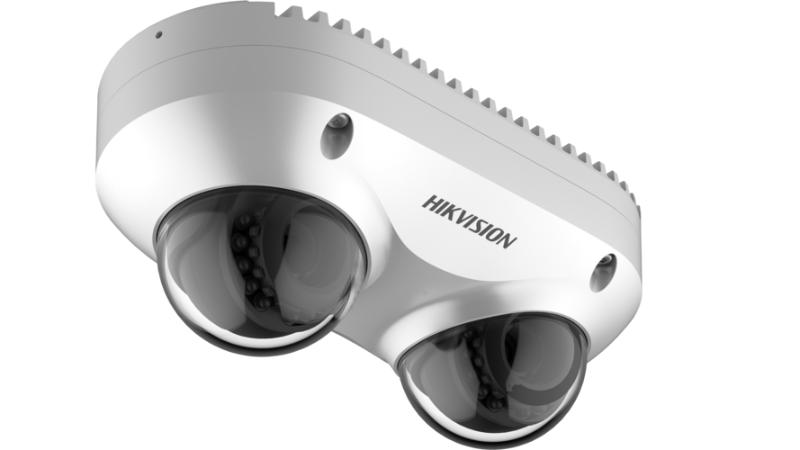

Hikvision Dual-Directional PanoVu Camera

Specifications

Image Sensor: 1.3″ Progressive Scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR; Shutter Time: 1 s to 1/100,000 s; Day & Night: IR cut filter; Angle Adjustment: Pan: -90° to 90°,tilt: 0 to 60° (2.8 mm),0 to 70° (4/6 mm),rotate: 0° to 355°; Focal Length & FOV: 2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6°
4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 93.9°
6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°; Lens Mount: M12; Aperture: F1.6; DORI: 2.8 mm: D: 61.1 m, O: 24.2 m, R: 12.2 m, I: 6.1 m
4 mm: D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m
6 mm: D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m; Supplement Light Type: IR; Supplement Light Range: Up to 10 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 24 fps (704 × 480, 640 × 480); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480); Video Compression: Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 4 fixed region(s) for each stream; Target Cropping: Yes; Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC); Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz; Environment Noise Filtering: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets; Simultaneous Live View: Up to 20 channels; API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2; Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200,Hik-Connect; Web Browser: Plug-in required live view: IE 11,
Plug-in free live view: Safari 12+,
Local service: Chrome 57.0+, Firefox 52.0+,
Not recommended: Safari 11+, Edge; Image Parameters Switch: Yes; Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger; Wide Dynamic Range (WDR): 120 dB; Image Enhancement: BLC,HLC,3D DNR,Defog; Privacy Mask: 8 programmable polygon privacy masks; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB; Built-in Microphone: 2 built-in microphone(s); Audio: 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound; Alarm: 1 input(s), 1 output(s) (max. 36 VDC, 30 mA); RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Reset Key: Yes; Basic Event: Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,abnormal reboot,alarm input and output,video quality diagnosis; Smart Event: scene change detection,audio exception detection,defocus detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture; Power: 12 VDC ± 20%, 0.58 A, max. 7.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9.0 W; Dimension: 164.3 mm × 84.6 mm × 67.4 mm (6.5″ × 3.3″ × 2.7″); Package Dimension: 227 mm × 172 mm × 125 mm (8.9″ × 6.8″ × 4.9″); : Approx. 770 g (1.7 lb.); With Package Weight: Approx. 1053 g (2.3 lb.); Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Heartbeat,mirror,flash log,password reset via email,password protection,one-key reset,anti-banding; EMC: FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015; Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
