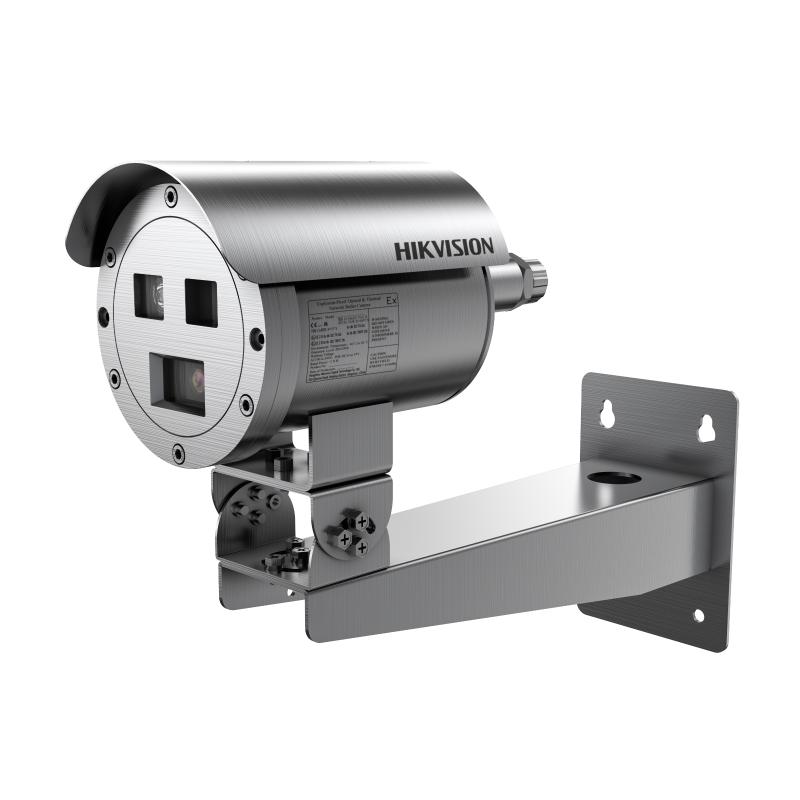

Hikvision Explosion-Proof Optical & Thermal Network Bullet Camera DS-2TD2537T-10/Q(C)

Specifications

Max. Resolution: 384 × 288; Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Pixel Interval: 17 μm; NETD: less than 35 mk (@25°C), F#=1.0; MRAD: 1.75 mrad; Field of View: 37.9° × 28.7° (H × V); Min. Focusing Distance: 1.5 m; Aperture: F1.0; Lens (Focal Length): 9.7 mm; Response waveband: 8 μm to 14 μm; Max. Resolution: 2688 × 1520; Image Sensor: 1/2.7″ Progressive Scan CMOS; Min. Illumination: Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON); Field of View: 84.0° × 44.8°(H × V); Aperture Range: F1.6; WDR: 120 dB; Shutter Speed: 1s to 1/100,000s; Day & Night: IR cut filter with auto switch; Focal Length: 4 mm; VCA(Video Content Analysis): 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.; Temperature Measurement: 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).; Temperature Range: -20°C to 650°C (-4°F to 1,202°F); Temperature Accuracy: Max (± 2°C, ± 2%); IR Distance: up to 30m; IR Intensity and Angle: Automatically adjusted; Main Stream: Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)」; Sub stream: Thermal:
25 fps (704 × 576, 384 × 288, 352 × 288)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240); Video compression: H.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile; Audio compression: G.711u/G.711a/G.722.1/MP2L2/G.726/PCM; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE; Simultaneous live view: Up to 20; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security measures: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering; Alarm Input: 2-ch inputs (0 to 5 VDC); Alarm Output: 2-ch relay outputs, alarm response actions configurable; Alarm Action: SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage; Audio Input: 1 3.5mm Mic in/Line in interface. Line input: 2 to 2.4V[p-p], output impedance:1 KΩ ± 10%; Audio Output: Linear Level; Impedance: 600 Ω; Ethernet: 1 RJ45 10M/100M Self-adaptive Ethernet interface; SD Memory Card: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording; Application Programming: Support ISAPI, HIKVISION SDK and third-party management platform; Client: iVMS-4200; Web Browser: Google Chrome 57+, Mozilla Firefox 52+, Internet Explorer 10+, Mac Safari 12+; Menu Language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; Power: 100 to 240 VAC, PoE (802.3af); Power Consumption: 100 to 240 VAC, PoE (802.3af), max.8W; Work Temperature/Humidity: -40°C to 60°C (-40°F to 140°F), 90% or less; Protection Level: IP68 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection; Dimensions: 286.7 mm × 175.2 mm × 150.1 mm (11.29″ × 6.9″ × 5.91″); : Approx. 5.85 kg (12.90 lb); EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7); Safety: CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005; Protection: IP68: IEC 60529-2013; Explosion-Proof Protection: ATEX: II 2 G Ex db IIC T6 Gb/II 2 D Ex tb IIIC T80°C Db
IECEx: Ex db IIC T6 Gb/ Ex tb IIIC T80°C Db; Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018), C5
