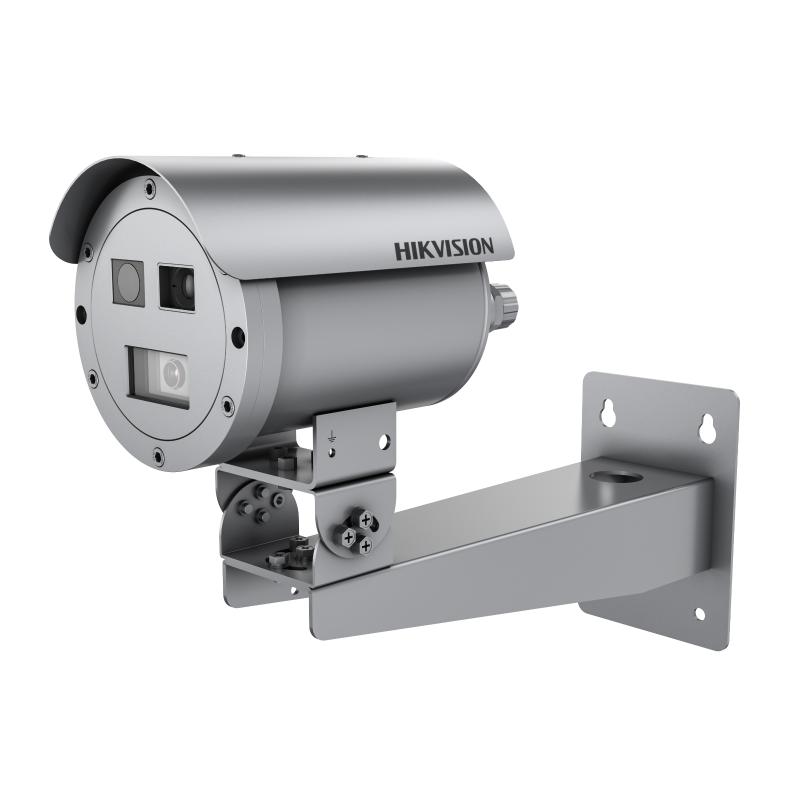

Hikvision Explosion-Proof Thermographic Network Bullet Camera DS-2TD2568T-15/G0/T1Y

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 640 x 512; Pixel Pitch: 12 μm; NETD: ≤ 25 mK (@25° C,F# = 1.0); Focal Length: 15 mm; IFOV: 0.8 mrad; Aperture: F1.0; Field of View: 29.7° × 23.6° (H × V); Min. Focusing Distance: 3 m; Digital Zoom: x2, x4; Image Sensor: 1/2.7″ Progressive Scan CMOS; Resolution: 2688 × 1520; Min. Illumination: Color: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON); Field of View: 51.6° × 28°(H × V); Focal Length: 6.4 mm; WDR: 120 dB; Picture in Picture: Display partial image of thermal channel on the full screen of optical channel; Target Coloration: Yes. Supported in white hot and black hot mode.; EIS: Thermal channel supports EIS, exclusive with all smart functions; IR Distance: Up to 30m; IR Intensity and Angle: Automatically adjusted; VCA: 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.; Temperature Measurement: 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).; Temperature Range: -20°C to 650°C (-4°F to 1,202°F); Temperature Accuracy: Max (± 2°C, ± 2%); Fire Detection: Dynamic fire detection, up to 10 fire points detectable; Smoke Detection: Support smoke detection on optical channel; Alarm Input: 2-ch inputs (0 to 5 VDC); Alarm Output: 2-ch relay outputs, alarm response actions configurable; Alarm Action: SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage; Audio Input: Mic in/Line in interface. Line input: 2 to 2.4V[p-p], output impedance:1 KΩ ± 10%; Audio Output: Linear Level; Impedance: 600 Ω; Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex); Main Stream: Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub stream: Thermal:
25 fps (704 × 576, 640 × 512, 384 × 288)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240); Video compression: H.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile; Audio compression: G.711u/G.711a/G.722.1/MP2L2/G.726/PCM; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE; Simultaneous live view: Up to 20; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security measures: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering; SD Memory Card: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 256G), support manual/alarm recording; Application Programming: Support ISAPI, HIKVISION SDK and third-party management platform; Client: iVMS-4200; Web Browser: Google Chrome 57+, Mozilla Firefox 52+, Internet Explorer 10+, Mac Safari 12+; Menu Language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; Power: 100 to 240 VAC, PoE (802.3af); Power Consumption: 100 to 240 VAC, PoE (802.3af), max.11W; Work Temperature/Humidity: -40°C to 60°C (-40°F to 140°F), 95% or less; Protection Level: IP68 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection; Dimensions: 290.7 mm × 177.5 mm × 152.0 mm (11.44″ × 6.99″ × 5.98″); : Approx. 6.5 kg (14.33 lb); EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7); Safety: CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017; Protection: IP68: IEC 60529-2013; Explosion-Proof Protection: ATEX: II 2 G Ex db IIC T6 Gb/II 2 D Ex tb IIIC T80°C Db
IECEx: Ex db IIC T6 Gb/ Ex tb IIIC T80°C Db; Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018), C5
