The Hikvision DS-QAZ0610G1-S is a professional audio zone controller for public address (PA) systems. It allows for the management and control of audio output in specific zones, ensuring targeted and efficient broadcasting. The device is built for seamless integration with Hikvision PA system components, offering flexible configuration and reliable performance.

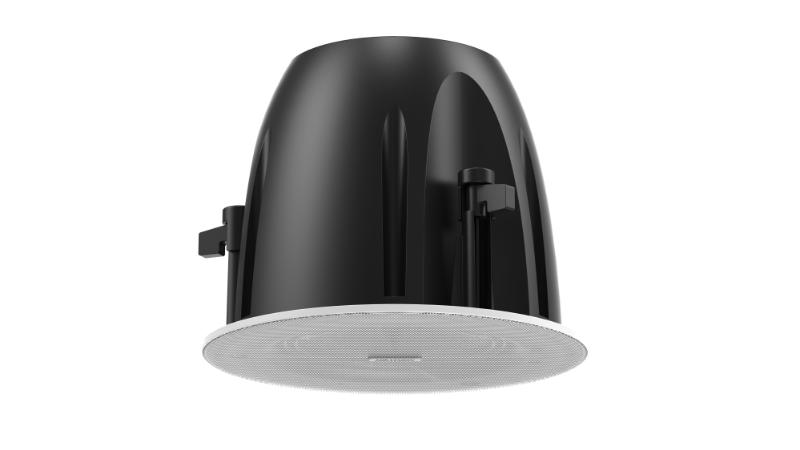

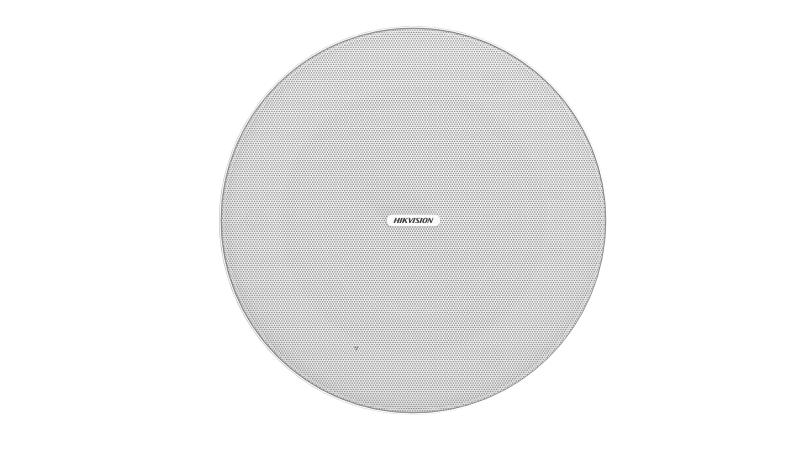

Hikvision Frameless Ceiling Sub Speaker 10W (DS-QAZ0610G1-S)
Hikvision DS-QAZ0610G1-S audio zone controller. Manages and controls audio output in specific zones for efficient PA systems.
Specifications
Impedance: 8Ω; Rated Power: 10W; Total Harmonic Distortion (THD): ≤1%; Sensitivity(1 m, 1 W): 89dB; Max. Acoustic Pressure: 98dB; Frequency Response: 120Hz~20kHz(-10dB); Speaker Unit: 1* 1.0-inch tweeter and 1* 6.5-inch woofer; Coverage Angle: Conical Coverage: 88°; Voltage Input: 100V × 2; Material: Main body: PC
Base: ABS; Dimension: φ242.78mm X 192.7mm; : Approx. 2.7 kg (5.95 lb.); Language: 5 languages: English, French, Spanish, German, Italian; Package Dimension: 305mm×305mm×315mm; With Package Weight: Approx. 2.9 kg (6.49 lb.); Packing List: Device × 1
Regulatory Compliance and Safety Information × 1
2-pin phoenix connector × 1
4-pin phoenix connector ×1; Operating Temperature: -10 °C to 45 °C; Operating Humidity: <90% (No condensation)
