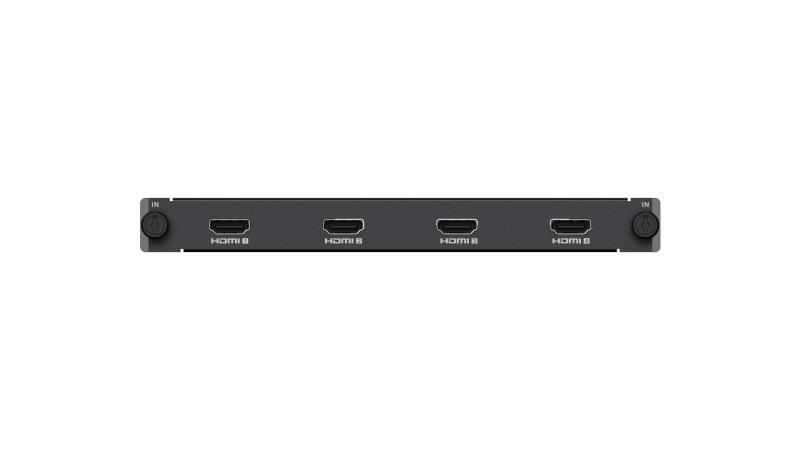

Hikvision HDMI Input Board DS-C60S-04HI

Specifications

Occupied Slot: Input slot; Audio Input Interfaces: 4; Audio Input Interface Type: HDMI composite audio; Audio Sampling Rate: 32K / 48K sampling rate; Audio Channel: Dual channel; Video Input Interface Type: HDMI 1.4; Video Input Interfaces: 4; Video Input Resolution: 1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz,
1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720p@50 Hz,
1280 × 720p@60 Hz, 1920 × 1080p@50 Hz, 1920 × 1080p@60 Hz, 1920 × 1200@60 Hz
Custom resolution: width ranges from 800 to 2560, height ranges from 600 to 2560. Width must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz. When configuring 30 Hz frame rate, the resolution ranges from 1280 × 720 to 2048 × 1152. When configuring 60 Hz frame rate, the resolution ranges from 800 × 600 to 2048 × 1152.; Max. Video Input Resolution: 1080p
