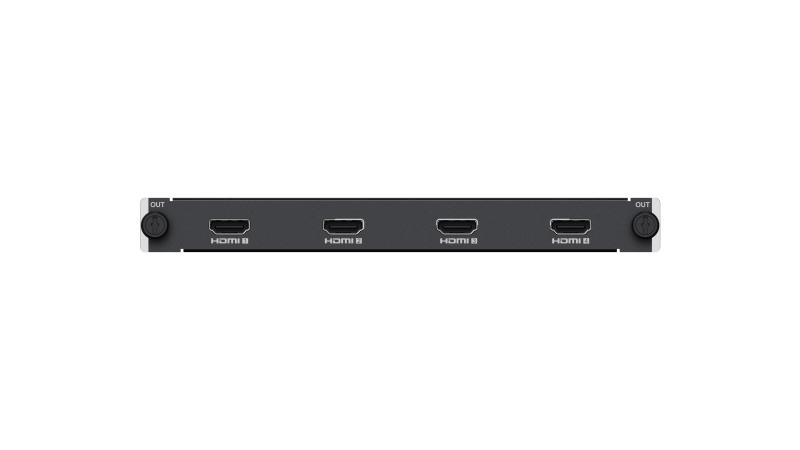

Hikvision HDMI Output Board DS-C60S-04HO

Hikvision HDMI Output Board DS-C60S-04HO

Hikvision DS-C60S-04HO HDMI output card. Outputs video signals to monitors for a seamless video wall, supporting various resolutions.

SKU: DS-C60S-04HO Category: Brand:
Guaranteed Safe Checkout

The Hikvision DS-C60S-04HO is an HDMI output card for video wall controllers. It is designed to output video signals to a variety of monitors and displays, creating a seamless video wall. The card supports a variety of resolutions and is an essential accessory for a professional and durable installation.

Specifications

Occupied Slot: Output slot; Layers: 16 layers per port (2K/4K); Video Output Interface Type: HDMI 1.4; Video Output Interfaces: 4; Video Output Resolution: 1920 × 1200@60 Hz, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1680 × 1050@60 Hz,
1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1024 × 768@60 Hz
Supports LED screen, custom resolution output, 60 Hz loading output, and 2.6 MP loading with width ranging from 144 to 4096 and height ranging from 144 to 2160.; Max. Video Output Resolution: 1080P; Loading Capacity for Video Output to LED: Single port load 2600000,
Width 144 – 4096,
Height 144 – 2160; Audio Output Interface: HDMI composite audio; Audio Output Interfaces: 4

DataSheet

Click Here for the DataSheet
