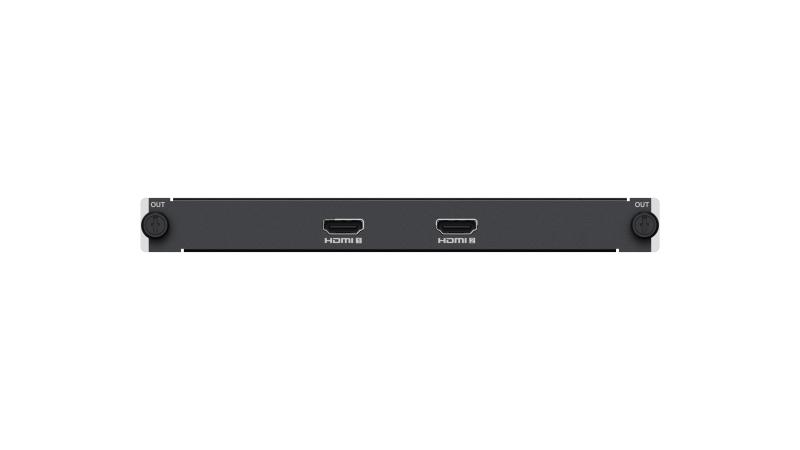

Hikvision HDMI Output Board(4K) DS-C60S-02HO4K

Hikvision HDMI Output Board(4K) DS-C60S-02HO/4K

Hikvision DS-C60S-02HO/4K HDMI output card. Outputs video signals up to 4K resolution to monitors for a seamless video wall.

SKU: DS-C60S-02HO/4K Category: Brand:
Guaranteed Safe Checkout

The Hikvision DS-C60S-02HO/4K is an HDMI output card for video wall controllers. It is designed to output video signals to a variety of monitors and displays, creating a seamless video wall. The card supports up to 4K resolution and is an essential accessory for a professional and durable installation.

Specifications

Occupied Slot: Output slot; Layers: 16 layers per port (2K/4K); Video Output Interface Type: HDMI 2.0; Video Output Interfaces: 2; Video Output Resolution: 4096 × 2160@60 Hz, 3840 × 2160@60 Hz, 4096 × 2160@30 Hz, 3840 × 2160@30 Hz,
2560 × 1600@60 Hz, 2560 × 1440@60 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz
Supports LED screen, custom resolution output, 60 Hz loading output, and 8.84 MP loading with width ranging from 144 to 8192 and height ranging from 144 to 4320.; Max. Video Output Resolution: 4K; Loading Capacity for Video Output to LED: Single port load 8840000,
Width 144 – 8192,
Height 144 – 4320;; Audio Output Interface: HDMI composite audio; Audio Output Interfaces: 2

DataSheet

Click Here for the DataSheet
