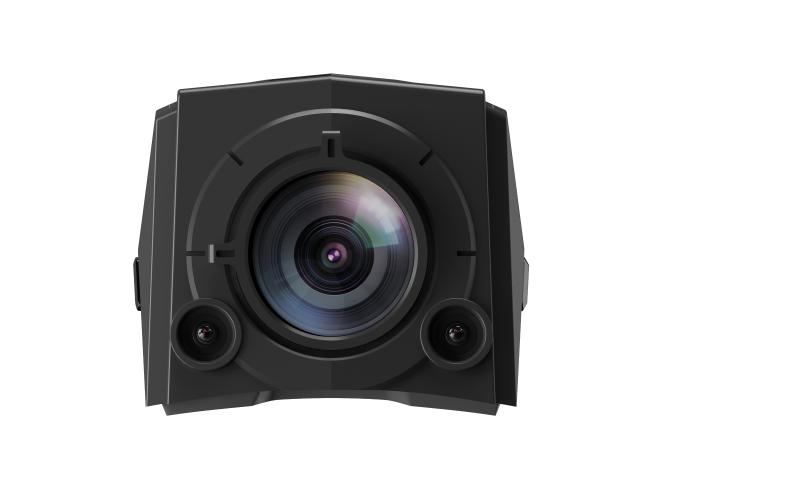

Hikvision Helmet Camera DS-MCH508/3/I/32G/GPS/WIFI(D)

Specifications

CPU: Single core,
32 bit,
Main frequency: 0.96 GHz; Max. Recording Resolution: 1920 × 1080; Image Sensor: 1/2.8″” progressive scan CMOS; Min. Illumination: Color: 0.03 Lux @ (F2.4, AGC ON), 0 Lux with supplement light; Day & Night: Switch IR cut filter automatically; Zoom: Not supported; Focal Length: 2 mm fixed lens; FOV: Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 124°; Aperture: F2.4; Video Compression: H.264,H.265; Main Stream: 30 fps (1920 × 1080, 1280 × 720, 720 × 576); Sub-Stream: 30 fps, 15fps, 5fps(1280 × 720, 720 × 576); Video Format: PS，MP4; Audio Compression for Video Recording: G722_1,AAC; Audio Compression for Group Intercom: G711_A,G711_MU,G722_1; Audio Bit Rate: G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps); Image Format: JPEG; Image Resolution: 5 MP,
16 MP,
30 MP,
40 MP; Image Stabilization Algorithm: Not supported; Screen Size: 0.88″; Display Resolution: 128 × 32; Screen Brightness: Typical value: 150 cd/m²; Capacity: 32 GB eMMC; RAM: 128MB; IR Range: Up to 10 m; IR Wavelength: 940 nm; Bluetooth: BT4.0; Wi-Fi Protocol: IEEE 802.11 b/g/n; Positioning Mode: GPS; Cellular Network: Only available for models with /GLE: GSM: 850/900/1800/1900 WCDMA: B1/B8 FDD -LTE: B1/B3/B5/B7/B8/B20/B28 TDD -LTE: B38/B40/B41; NFC: Not supported; Protocol: HTTPS, RTSP, NTP, FTP; API: ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP 5.0; Encryption: AES128 / AES256; Watermark: Supported; USB: 1 USB 2.0 port(s); Indicator: 1 Dual color Indicator for Charging/Working/Recording/Exception; Button: Power,Fn; SIM Card: Only available for models with /GLE :1 (Nano-SIM); Charging Interface: Type-C; Smart Event: Fall detection; Group Intercom: Not supported; Operating System: Linux; Power: 5 VDC, 2 A, max. 10 W; Vibration Motor: Supported; Operating Condition: -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing); Dimensions: 94 mm × 54 mm × 48 mm (3.7″ × 2.3″ × 1.9″); : 233 g (without mounting) (0.51 lb.); MIC: Supported; Gyroscope: Supported; Speaker: Not supported; Capacity: 2700 mAh; Battery Type: Lithium-ion battery, dismountable; Charging Time: ≤ 4 h; Battery Duration: Up to 11h in 720p resolution¹; RF: EN 301489-1 V2.2.3 EN 301489-3 V2.1.1 EN 301489-17 V3.2.4 EN 301489-52 V1.2.1 EN 301 489-19 V2.2.1 EN 300328 V2.2.2 EN 303413 V1.2.1 EN 300330 V2.1.1 EN 50360:2017 EN 50566:2017 EN 300 440 V2.1.1 EN 301908-1 V15.1.1 EN 301 908-13 V13.1.1; EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011+A1: 2014; Safety: CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017; Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006; Protection: IP67; Drop Test: MIL-STD-810G,
2 m drop test; Warranty: 2 years for the device without battery, 1 year for the battery
