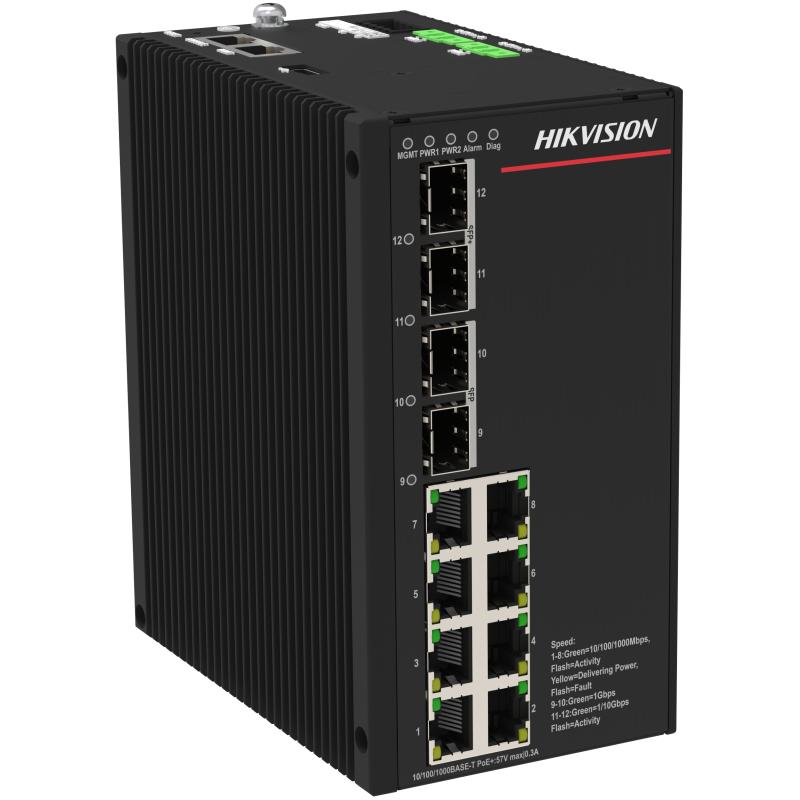

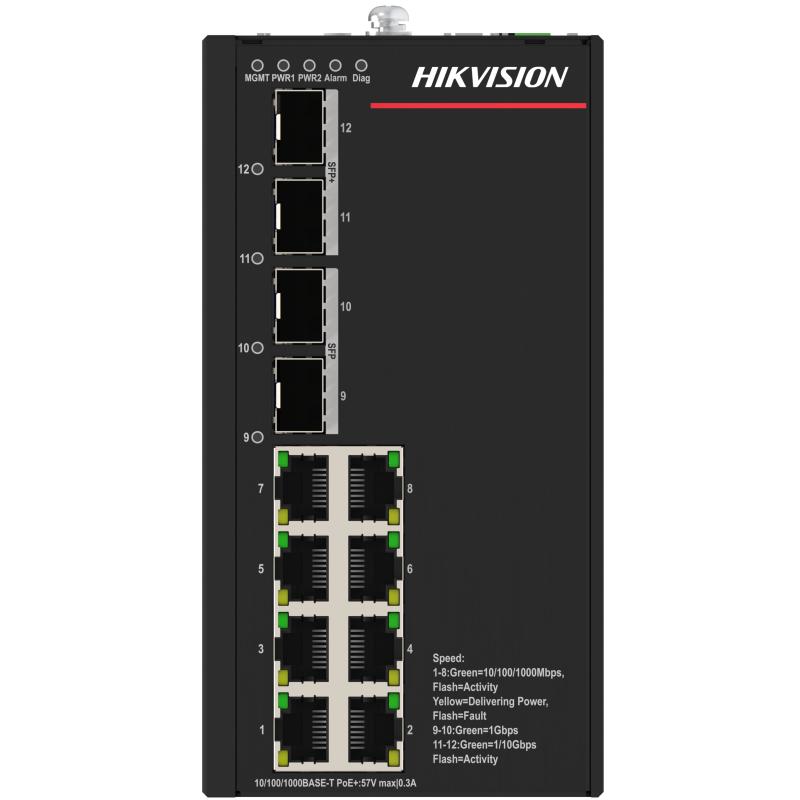

Hikvision Industrial Full Managed PoE Switch DS-3T3512P-H

Specifications

Net Weight: 1.15 kg (2.54 lb); Gross Weight: 1.45kg (3.2 lb); Dimension (W × H × D): 79 mm × 150 mm × 130 mm (0.259″ ×0.492″ × 0.427″); Working Temperature: -40°C to 75°C (-40°F to 167°F); Storage Temperature: -40°C to 85°C (-40°F to 185°F); Working Humidity: 5% to 95% (no condensation); Storage Humidity: 5% to 95% (no condensation); Power Supply: 52-57 V DC, 5A Redundant dual inputs
48V~57V for PoE
52V~57V for PoE+; Max. Power Consumption: 145W(PoE 125W); Shell: Metal material, IP40; MAC Address Table: 8 K; Ports: 8 × Gigabit PoE port,2 × Gigabit fiber optical port,2 × 10G fiber optical port,2 × RS485 port; Switching Capacity: Whole-Device Performance: 40 Gbps
Port Performance: 40 Gbps; Packet Forwarding Rate: Whole-Device Performance: 29.76 Mpps
Port Performance: 29.76 Mpps; PoE Power Pin: 2-pin Phoenix terminal ×2; VLAN: 4K VLAN
Port-based VLAN
Mac-based VLAN
Protocol-based VLAN
Based on the VLAN of the IP subnet
QinQ, Flexible QinQ
VLAN Mapping
Voice VLAN
MVRP; Reliability: Support STP/RSTP/MSTP
Support EAPS/MEAPS
Support MRD-Ring
Support ERPS
Support VRRP
Support BFD for OSPF
Support BFD for OSPF; Security: Support user classification management and password protection.
802.1X Authentication/Centralized MAC Address Authentication
Portal Authentication
MAC address Authentication
Guest VLAN
RADIUS Authentication
SSH 2.0
Port isolation
Port security
EAD
DHCP Snooping, Prevent deception DHCP server
Support dynamic ARP detection to prevent man-in-the-middle attacks and ARP denial of service.
uRPF, Prevent IP source address spoofing to guard against viruses and attacks.
IP/Port/MAC bind
Support plaintext and MD5 ciphertext authentication for OSPF and RIPv2 messages.
PKI(Public Key Infrastructure)
Attack source tracing
IP Source Guard
DAI, ARP protection, DDOS protection
Secure boot; Multicast: IGMP Snooping v1/v2/v3,MLD Snooping v1/v2
IPv4 IGMP Snooping
IPv6 MLD Snooping
PIM Snooping
MLD Proxy
MVRP
Multicast VLAN
IGMP v1/v2/v3,MLD v1/v2
PIM-DM,PIM-SM,PIM-SSM
MSDP,MSDP for IPv6
MBGP,MBGP for Ipv6; DHCP: DHCP Client
DHCP Snooping
DHCP Relay
DHCP Server
DHCP Snooping option82/DHCP Relay option8; IPv6: ND
PMTU
IPv6-Ping,IPv6-Tracert,IPv6-Telnet,IPv6-TFTP
Tunnel
6to4 tunnel
ISATAP tunnel
GRE tunnel; Virtualization: Intelligent and Elastic Architecture
Support distributed device management, distributed link aggregation, distributed elastic routing.
Support stacking through standard Ethernet interfaces
Support local stacking and remote stacking
Maximum stacking of 4 units; Forwarding Mode: store-forward; Green Energy Saving: Automatic power down function for ports
Port timing down function (Schedule job)
EEE(802.3az) Standard for Energy Efficient Ethernet; ACL&QoS: Support packet filtering functions from L2 (Layer 2) to L4 (Layer 4), providing traffic classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, and VLAN.
Time Range ACL
Dual-directional ACL policy for inbound and outbound orientation.
VLAN based ACL
Support limiting the rate of receiving messages and sending messages on ports, with a minimum granularity of 8Kbps.
Packets redirection
Supports re-marking of 802.1p and DSCP priority for messages
Supports Committed Access Rate (CAR) function
Supports flexible queue scheduling algorithms, which can be set based on both port and queue, supporting SP, WRR, and SP+WRR modes; Layer 2 Ring Network Protocol: STP/RSTP/MSTP
SmartLink
BPDU Protection
RRPP, ERPS, recovery time ≤ 30ms
MRP(IEC62439-2), recovery time ≤ 20ms; IP Routing: Static route
RIPv1/v2, RIPng
OSPFv1/v2, OSPFv3
BGP4, BGP4+ for IPv6
Support equal cost route, policy-based routing (PBR)
VRRP/VRRPv3
BFD FOR VRRP
BFD FOR IPv4
BFD FOR IPv6; OpenFlow: OpenFlow 1.3
Supported multiple controllers (EQUAL mode, primary and standby mode)
Supported multi-table pipelining
Support Group table
Support Meter; Mirroring: Support for traffic mirroring
Support for N:4 port mirroring
Support for local and remote port mirroring
Support for ERSPAN; Management and Maintenance: XModem/FTP/TFTP load upgrade
Support configuration via command line interface (CLI), Telnet, and console port.
SNMPv1/v2/v3, WEB
RMON (Remote Monitoring) Alarm, event, historical record
iMC
SmartMC
Support syslog, hierarchical alarm, debugging information output.
NTP
Supported power alarm and temperature alarm
Ping、Tracert
VCT(Virtual Cable Test)
DLDP
LLDP
Loopback-detection
DDM(Digital Diagnostic Monitoring); Port Aggregation: Support GE port aggregation
Support 10GE port aggregation
Support static aggregation
Support dynamic aggregation
Support cross-device aggregation; MAC Address Table: Black hole mac-address
Port MAC address learning maximum number; Port Characteristics: Support IEEE802.3x traffic control (full duplex)
Support storm suppression based on port rate percentage
Support storm suppression based on PPS
Support storm suppression based on bps; Industrial Protocol: Support for industrial protocols such as Profinet, Ethernet/IP, Modbus, etc. pass through.; Jumbo Frame: Jumbo Frame; MFF: MFF(MAC-Forced Forwarding); EMC: CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 28); Safety: UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2038); Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2027)
