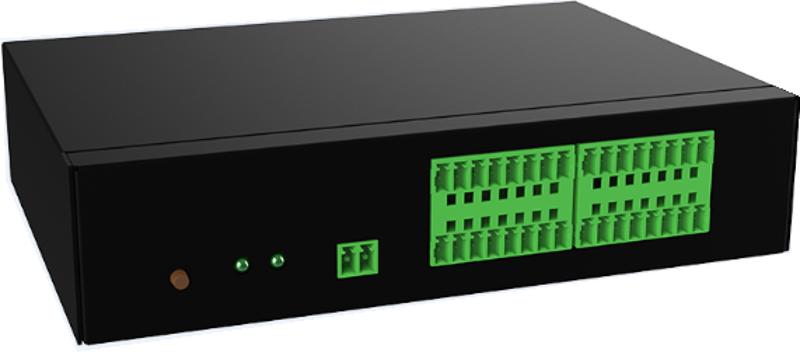

Hikvision Interface Converter (RSC-2100-B/V2)

Specifications

Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port(s); Alarm: 16 input(s),16 output(s); RS-485: 1 RS-485; Reset Key: Supported; Material: SECC; Power: DC 9 V to 12 V, 0.4 A, max. 5 W, two-core terminal block; Dimension: 157.3 mm × 111 mm × 36 mm (6.19″ × 4.37″ × 1.42″) (L × W × H); Package Dimension: 244 mm × 175 mm × 110 mm (9.61″ × 6.89″ × 4.33″) (L × W × H); Weight: Approx. 0.5 kg (1.1 lb.); With Package Weight: Approx. 0.9 kg (1.98 lb.); Operating Condition: -20 °C to 70 °C (-4 °F to 158 °F). Humidity 95% or less (non-condensing); Storage Condition: -20 °C to 70 °C (-4 °F to 158 °F). Humidity 95% or less (non-condensing); EMC: CE-EMC: EN 55032: 2015+A11:2020+A1:2020 EN 61000-3-3: 2013+ A1:2019+A2:2021 EN IEC 61000-3-2: 2019+A1:2021 EN 50130-4: 2011 +A1:2014; Safety: CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017,CE-LVD: EN IEC 62368-1:2020 +A11:2020; Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
