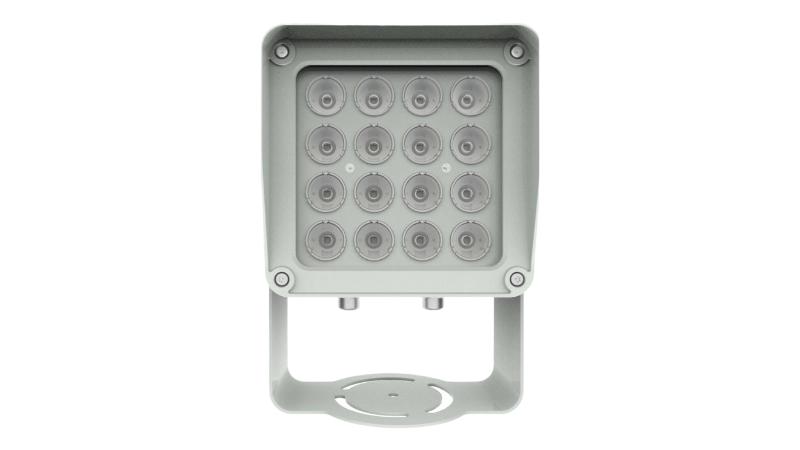

Hikvision IR LED Strobe Supplement Light DS-TL2000AI-L1

Specifications

Light Type: IR light; Angle of Light: 10°; IR Wavelength: 850nm; Coverage: 1 lane(s); LED Lamp Beads: 16; Center Illuminance: 800 mW/㎡; Effective Distance: 16 to 25 m; Trigger Manner: TTL level (switch trigger optional); Trigger Level: 4 to 6 V (High level trigger); Trigger Duty Ratio: 1% to 39% (Enter the protection state at Duty Radio ≥ 40%); Color Temperature: 2800 K to 3200 K; Response Time: ≤ 20 us; Trigger Frequency: 15 to 250 Hz; Service Life: ≥ 50000 Hours; Power: AC 100 V to 240 V, 0.18 A, 39.8 W, 3-core terminal block; Material: Aluminium alloy; Dimensions: 128 mm × 216 mm × 159 mm (5.0″ × 8.5″ × 6.3″) (L × W × H); Package Dimensions: 290 mm × 247 mm × 230 mm (11.42″ × 9.72″ × 9.05″) (L × W × H); Weight: Approx. 2.8 kg (6.17 lb.); With Package Weight: Approx. 3.87 kg (8.53 lb.); Operating Condition: -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing); Storage Condition: -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing); EMC: EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021; Safety: CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031,CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP66: IEC 60529: 1989+A1: 1999+A2: 2013
