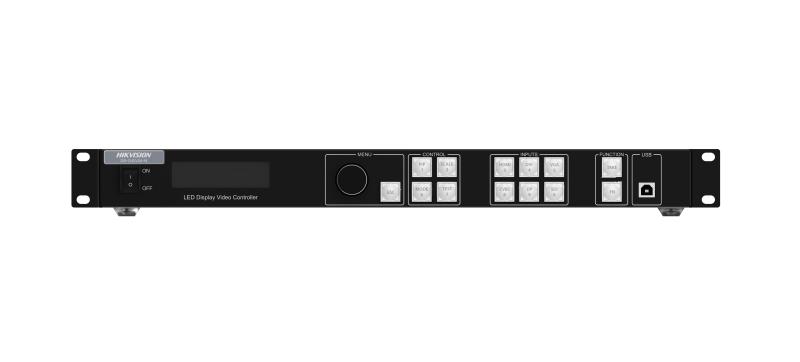

Hikvision LED Controller DS-D42V04-N

Specifications

Brightness Control: 1-100 Levels; Frame Frequency: 25HZ-60HZ; Grey Level: 256; Display Color: 1 Billion; Processing Depth: 8bit; Image Scaling: Support; Product Model: DS-D42V04-N; Chassis Height: 1.12 U; Chassis Width: 301.2mm; Product Type: LED Controller; Average Consumption: ≤28W; Number of power interfaces: 1; Power interface specifications: 100-240V，1.6A，50/60Hz; Working Temperature: 0°C~ +45°C; Storage Humidity: 10%~95%; Working Humidity: 20% ～ 90%; Storage Temperature: ‘-20°C~ +70°C; Packaging Size (W × H × D): 550.0mm×175.0mm×400.0mm; Net Weight: 4KG; Gross Weight: 6.8kg; Dimensions (W × H × D): 483.6mm×301.2mm×50.1mm; Packing List: 1×DS-D42V04-N,1×Power Cable，1×USB Cable，1×HDMItoDVI Cable，1×HDMI Cable,1×Ethernet Cable; Audio Input Interface(s): 1; Audio Input Interface Type: HDMI inline; Video Input Interface(s): 4; Video Input Interface Type: 2 HDMI1.3+1 3G-SDI+1 DVI; Max. Input Resolution: 2K; Video Input Resolution: HDMI1.3 interface
Supports 1920 x 1200@60Hz Video source input.
Supports HDCP1.4. Not supporting interlaced signal input.
Support custom resolution.
Custom maximum width: 3840 (3840 x) 648@60Hz ）
Custom maximum height: 2784 (800 x 2784@60Hz ）
Support front-end device push input: 600 x 3840@60Hz
HDMI 1.3-1 supports LOOP loop output.

SDI interface
Supports ST-424 (3G), ST-292 (HD), and ST-259 (SD) standard video source inputs.
Single channel support 1920 x 1080@60Hz Video source input.
Support de interlacing processing.
Input resolution and bit depth settings are not supported.
Supports 3G-SDI Loop output.

DVI interface
Supports 1920 x 1200@60Hz Video source input.
Supports HDCP1.4.
Interlaced signal input is not supported.
Support custom resolution.
Custom maximum width: 3840 (3840 x) 648@60Hz ）
Custom maximum height: 2784 (800 x 2784@60Hz ）
Support front-end device push input: 600 x 3840@60Hz
DVI supports LOOP loop output.; Video Input Processing Characteristics: Processing depth 8
Sampling format:
RGB:444
YUV:4:4:4
YUV:422; Max. Output Resolution: 2.6 Million; Loading Capacity for Video Output to LED: Single port with load 650000
Width 1~10240
Height 1~8192; LED Loading Interfaces: 4; LED Loading Interface Type: RJ45; Number of video ring pass output interfaces: 2; Video looping output interface type: HDMI 1.3+DVI; Video looping output resolution: 1920×1200@60Hz; Audio Output Interface(s): NA; Audio Output Interface Type: NA; Screen: LCD screen; Key: “”knob””: Select menus, adjust parameters, and confirm operations.
“”ESC””: Exit the menu or cancel the operation.
“”MAIN/PIP 1/PIP 2″”: Layer on, off, and layer state display.
“”SCALE””: Full screen auto zoom shortcut key, adaptively fills the window with the lowest priority to full screen.
“”PRESET””: Enter the scene settings menu.
“”TEST””: Enter the test screen settings menu.
“”FREEZE””: Freeze the output screen.
“”FN””: Customizable function shortcut key.
“”HDMI1/HDMI2/DVI/SDI”” Input source status display, supporting one click switching of the main window input source.; pilot lamp: “”MAIN/PIP 1/PIP 2″”: Long blue light: The layer is turned on.
Blue flashing: The layer is currently being edited.
Long white light: The layer is not turned on.
“”SCALE””:Long blue light: Full screen automatic scaling is enabled.
Long white light: Full screen auto zoom is not enabled.
“”HDMI1/HDMI2/DVI/SDI””: Long blue light: There is an input source connected.
Blue flashing: No input source connected, already used by the layer.
Long white light: No input source connected or input source abnormal.; Control network port: “1 RJ45, 10M/100M/1000M adaptive Ethernet ports
Connect and control the computer or router.”; 3D interface: NA; IR input: NA; Serial Interface: 1, 1 debug serial port (RJ45); Light perception: LIGHT SENSOR：Connect the optical probe to obtain ambient brightness, which can achieve automatic adjustment of screen brightness.; USB: 2 x USB 2.0; On-off: Switch
