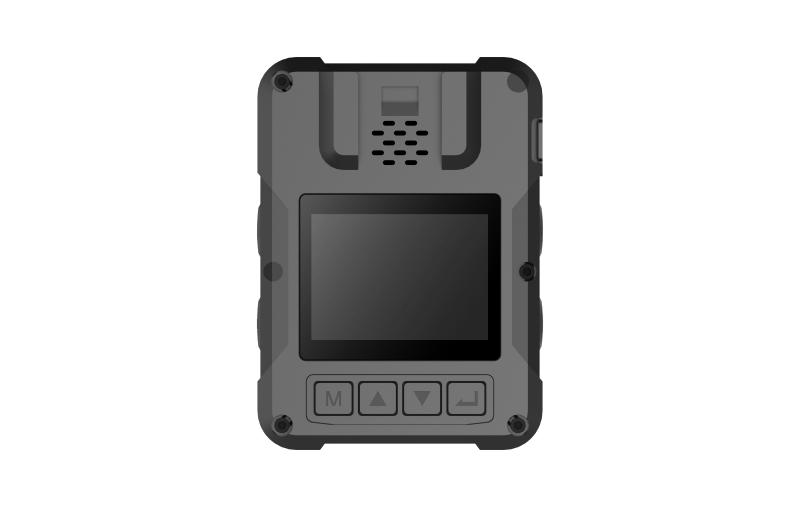

Hikvision Linux Economical Wi-Fi Body Camera DS-MCW406/32G

Specifications

CPU: Single core,
32 bit,
Main frequency: 0.96 GHz; Image Sensor: 1/3″ progressive scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.07 Lu×@ (F2.0, AGC ON), 0 Lux with supplement light; Day & Night: Switch IR Cut Filter Automatically; Zoom: 4x Digital; Focal Length: 2.4 mm fixed lens; FOV: Horizontal FOV: 129°
Vertical FOV: 70°
Diagonal FOV: 140°; Aperture: F2.0; Video Format: PS, MP4; Pre-record & Post- record: Pre-record: 10 s;
Post-record: 60 s; Sub Stream: 30 fps (1280 × 720, 720 × 576); Video Compression: H.264, H.265; Main Stream: 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 720 × 576); Audio Compression for Video Recording: G722_1,AAC; Audio Compression for Audio Recording: PCM; Audio Compression for Group Intercom: G711_A,G711_MU,G722_1; Audio Bit Rate: G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps),PCM(128 kbps); Image Format: JPEG; Image Resolution: 5 MP,
16 MP,
30 MP,
40 MP; Image Stabilization Algorithm: Not supported; Touchscreen: Not supported; Screen Size: 1.77″; Display Resolution: 128 × 160; Screen Brightness: Typical value: 400 cd/m²; RAM: 128 MB; ROM: Default 32 GB, 64 GB/128 GB/256 GB optional; IR Range: Up to 10 m; IR Wavelength: 850 nm; Wi-Fi Frequency Band: 2.412 to 2.472 GHz; Bluetooth: Not supported; Wi-Fi Protocol: 802.11 a/b/g/n; Positioning Mode: GPS; NFC: Not supported; Protocol: HTTPS, RTSP, NTP, FTP; API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP; Encryption: AES128,AES256; Watermark: Supported; Audio Type: 1 built-in mic(s),1 speaker(s); USB: USB 2.0; Indicator: 2 Indicator(s) for Charging/Working/Recording/Exception; Button: Power, Recording, Audio recording, Picture capture, Menu, Up, Down, Enter; Charging Interface: Type-C; Smart Functions: Not supported; Group Intercom: Not supported; Operating Condition: -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing); Power: 5 VDC, 2.0 A, max. 10 W; Dimension: 85 mm × 59 mm × 30 mm (3.4″ × 2.3″ × 1.2″); : 125 g (without mounting) (0.27 lb.); Operating System: Linux; Client: Hik-Connect, HikCentral Pro, HikCentral Master Lite; MIC: Supported; Speaker: 1 Built-in speaker, Max. power consumption: 1 W, Max. sound pressure level: 87dB (10 cm); Vibration Motor: Not supported; Gyroscope: Not supported; Battery Type: Lithium-ion battery, integral; Capacity: 2500 mAh; Charging Time: ≤ 3 h; Battery Duration: Up to 12 h in 720p resolution¹; RF: EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G);; EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; Safety: CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018
CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020
CE-LVD: EN 62368-1: 2014/A11: 2017; Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013; Drop Test: MIL-STD-810G,
2 m drop test; Warranty: 2 years for the device without battery, 1 year for the battery
