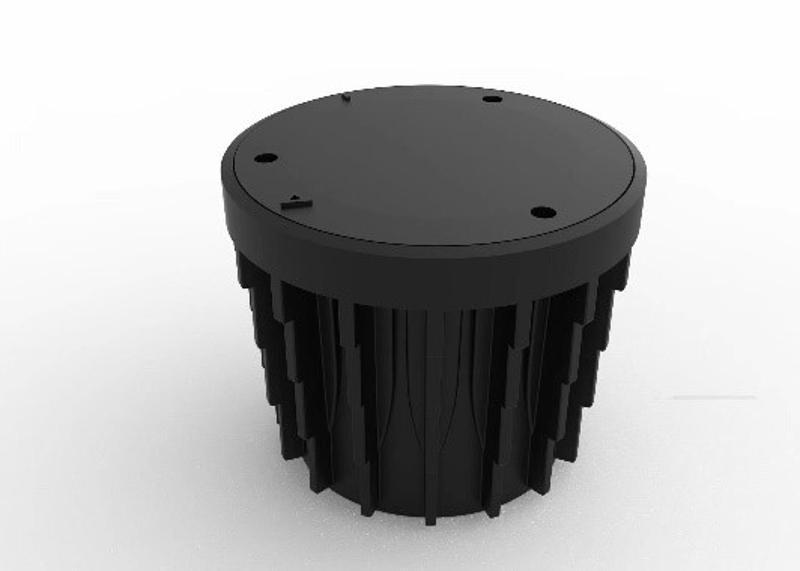

Hikvision LoRaWAN Geomagnetic Detector DS-TDP110-L

Specifications

Communication Mode: LoRaWAN; Heartbeat Interval: 60～43200 s; Detector ID: 16 BitID; Receiving Sensitivity: -129 dBm; Max. Working Current: 150 mA; Sleeping Current: 30 uA; Device Working Time: 10 ms; Max. Detection Distance: 2 m; RF Band: Default EU868, Support CN470/IN865/RU864/US915/AU915/KR920/AS923-1&2&3&4); RF Interconnection Distance: 150 m in open air (depending on RF power and environment); RF Transmission Rate: 4800 bps; RF Transmitting Power: +23 dBm Max (depending on national policy); Working Temperature and Humidity: -34 °C to +74 °C; Working Voltage: 3.6 V; Package Dimensions: 155× 155× 105 mm (6.10 × 6.10 × 4.13 inch); Dimensions: φ 114 mm × h 94 mm (φ 4.49 inch × h 3.70 inch); : 0.565 kg (1.25 lb.); Installation Mode: Built-in type，The upper surface is level with the ground; Storage Temperature and Humidity: -40 °C to +80 °C; Lifespan: 5 years; Material: Super Tough Nylon
