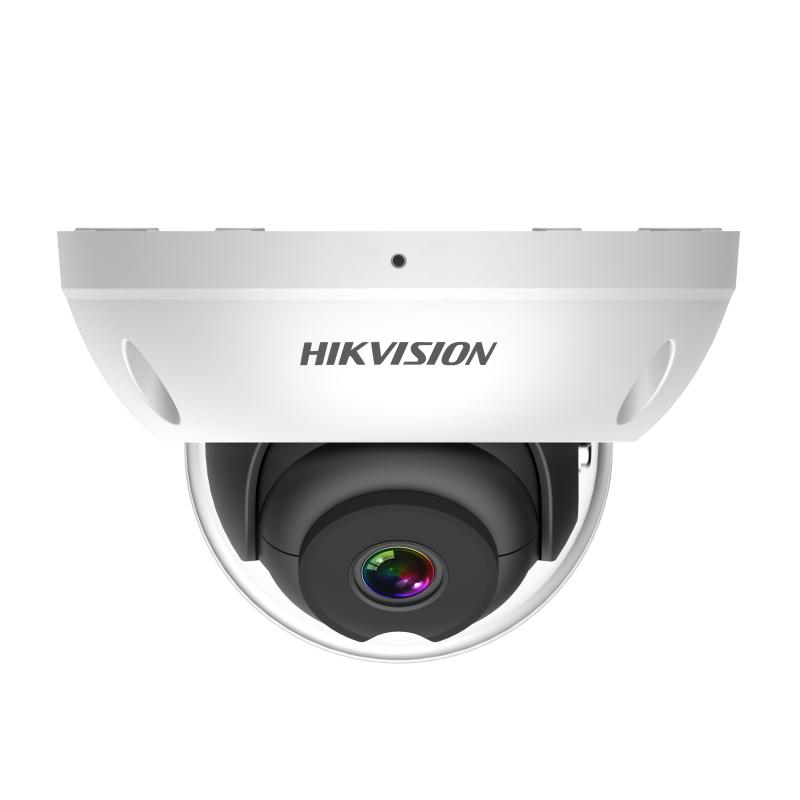

Hikvision Mobile mini dome AE-VC215I-ISF

Specifications

Image Sensor: 1/2.8”CMOS Progressive Scan; Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR; Resolution: 1920 × 1080; Shutter Speed: 1/3 s to 1/100, 000 s; Day & Night: Electronic Day to Night; Angle Adjustment: Pan: -50°~+50°
Tilt: 0~60°; Focal Length: 2mm/2.8mm/4mm; Focal Length & FOV: 2mm:Horizontal FOV:132°, Vertical FOV:77°, Diagonal FOV:152°
2.8mm:Horizontal FOV:105°, Vertical FOV:56°, Diagonal FOV:126°
4mm:Horizontal FOV:87°, Vertical FOV:44°, Diagonal FOV:104°; Lens Mount: M12; Focus: Manual; Max. Aperture: 2mm:F2.25
2.8/4mm: F1.6; Supplement Light Type: Infrared; IR Wavelength: 850 nm; IR Range: 3 m; Compression Type: H.264 (Main Stream, Sub Stream)
H.265 (Main Stream, Sub Stream)
MJPEG (only Sub Stream); Main Stream: 50Hz:25fps(1920×1080, 1280 x 960, 1280×720)
60Hz:30fps(1920×1080, 1280 x 960, 1280×720); Sub-Stream: 50Hz:25fps(704×576, 640×480, 352×288, 320×240)
60Hz:30fps(704×576, 640×480, 352×288, 320×240); Video Compression: Main Stream:H.264, H.265
Sub Stream:H.264, H.265, MJPEG; Video Bit Rate: 256Kbps-6Mbps; H.264 Type: BaseLine profile/Main Profile; H.265 Type: Main Profile; Bit Rate Control: CBR, VBR; Stream Type: Main Stream, Sub Stream; Region Of Interest (ROI): Support 1 fixed region for each stream（Main Stream, Sub Stream ）; Frame Rate: P(50Hz): 25fps
N(60Hz): 30fps
Default 25fps; Audio Compression: G711U, G711A, G726_A, AAC, G722_1, PCM; Audio Bit Rate: Raw data PCM:256kbps
G711U, G711A, G726_A, AAC,G722.1:≤64kbps; Audio Sampling Rate: 16kHz; Protocols: TCP/IP, onvif, http, https, DHCP, RTSP, QOS; Simultaneous Live View: Up to 6 channels; API: ONVIF (PROFILE S/G/T), ISAPI, DNS, TCP/IP, UDP, ICMP, NTP; User Management: Up to 16 users of 3 levels of user authority: administrator, operator and common user; Web Browser: IE8+, Chrome57+, Edge16+, Firefox 52+; Image Settings: Brightness, contrast, saturation and sharpness can be adjusted via browser and client program; Day/Night Switch: Day, Night, Auto, Scheduled; Wide Dynamic Range (WDR): 105 dB; SNR: ＞50 dB; Image Enhancement: 2DNR ,3DNR; Backlight Compensation(BLC): Support BLC adjustment of up, down, left, right, center area and customized BLC.; Others: Support customizing 3 lines OSD; Ethernet Interface: M12:M12-D code Aviation plug
RJ45:10 M/100 M self-adaptive Ethernet port; Audio: Built-in MIC; Reset Key: Built-in Reset; TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering); Linkage Method: Notify Monitoring Center; Basic Event: Disk full; Product Dimension: Φ97 mm × 62 mm (Φ3.8″ × 2.4″); Power: RJ45: 0.139-0.088A, Max. 5W
M12: 0.139-0.088A, Max. 5W; Protection: IP66, IK08; Power Supply: RJ45: PoE (802.3af, 36~57V)
M12: PoE (802.3af, 36~57V); Camera Material: Front Cover: plastic
Base: metal; Screw Material: SUS, Carbon steel coating; Package Dimension: 111 mm × 111 mm × 95 mm (4.4″ × 4.4″ × 3.7″); Product Weight: RJ45: Approx. 260 g (0.57 lb.)
M12: Approx. 255 g (0.56 lb.); Startup and Operating Conditions: -30°C to +60°C (-22°F to +140°F). Humidity 95% or less (non-condensing); Language: English; General Function: Anti-flicker, heart beat, mirror, password protection; Power Interface: RJ45: PoE power supply
M12: 4-core aviation plug; Cable Length: 50 cm; EMC: CE-EMC(EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); Safety: CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);BIS; Environment: CE-RoHS(2011/65/EU); Electrical Safety Protection: IP66(IEC 60529-2013);IK08(IEC 62262:2002)
