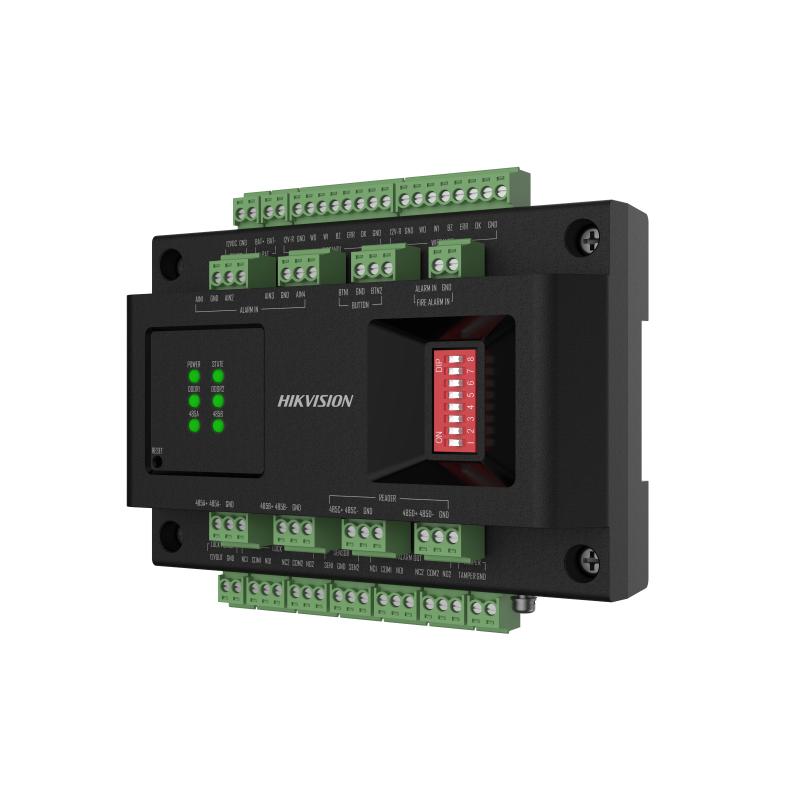

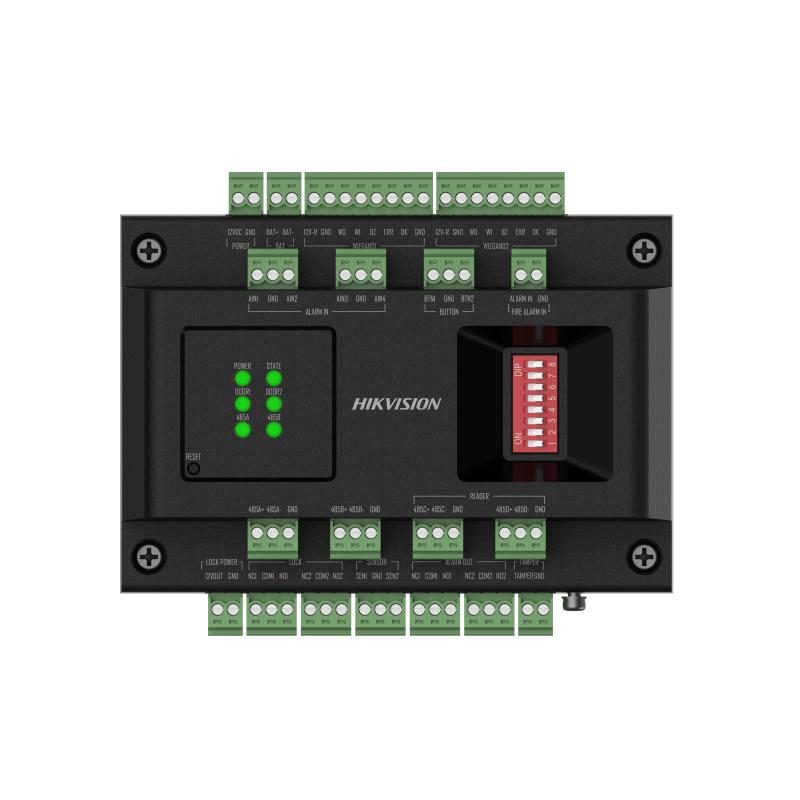

Hikvision Module (DS-K2M002X)

Specifications

Operating system: MCU; Lock control: 2; Exit button: 2; Door contact input: 2; Alarm input: 4; Alarm output: 2; TAMPER: 1; RS-485: 4, 2 for card reader, 2 for access controller; Wiegand: 2, standard 26/34 input, supports custom Wiegand settings; Linked door capacity: 2 doors; Linked card reader capaciry: 4 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers; Indicator: 6 indicators, 1 for indicating power status, 1 for running status, 2 for communication status, and 2 for door status; Battery: Charge and discharge; Power supply: 12 ± 15% VDC; Power consumption: ≤ 50 W; Working temperature: -10 °C to 55 °C (14 °F to 131 ° F); Working humidity: 0% to 90% (No condensing); Installation: Installation with guide rail; Configuration via Web browser: Support via access controller; Multi-factor authentication: Support via access controller; First person in: Support via access controller; Multi-door interlocking: Support via access controller: supports 32 groups (32 doors each)
