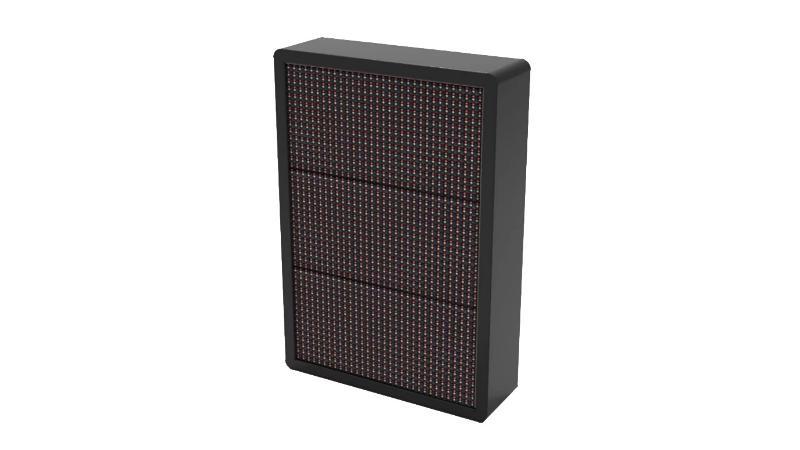

Hikvision Outdoor Guidance LED Screens DS-TVL223-2-10P

Specifications

Network Interface: 1 10 M/100 M self-adaptive Ethernet interface; EMC: EN 55032: 2015 + A11: 2020 + A1: 2020
EN 55035: 2017 + A11: 2020
EN IEC 61000-3-2: 2019
EN 61000-3-3: 2013 + A1: 2019 + A2: 2021; Security: IEC 62368-1: 2014
IEC 62368-1: 2018
EN 62368-1: 2014 + A11: 2017; Working Temperature & Humidity: Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
Humidity: ≤ 95% (non-condensing); Working Voltage: 100 to 240 VAC; Working Consumption: Max. 90 W; Dimensions: 362 mm × 522 mm × 110 mm (14.25 × 20.55 × 4.33 inch); : 9 ± 0.2 kg (19.84 ± 0.44 lb.); Weight (with Package): 10.5 ± 0.2 kg (23.15 ± 0.44 lb.); Package Size: 475 mm × 635 mm × 225 mm (18.70 × 25 × 8.86 inch); Resolution: 32 ×48; Screen Size: 320 × 480 mm (12.60 × 18.90 inch); Display Content: Number, letter, arrow; Screen Type: Full lattice screen; Color Display: Red, green, yellow; Number of Module: 3; Module Size: 320 × 160 mm (12.60 × 6.30 inch); Display Mode: Real-time display
