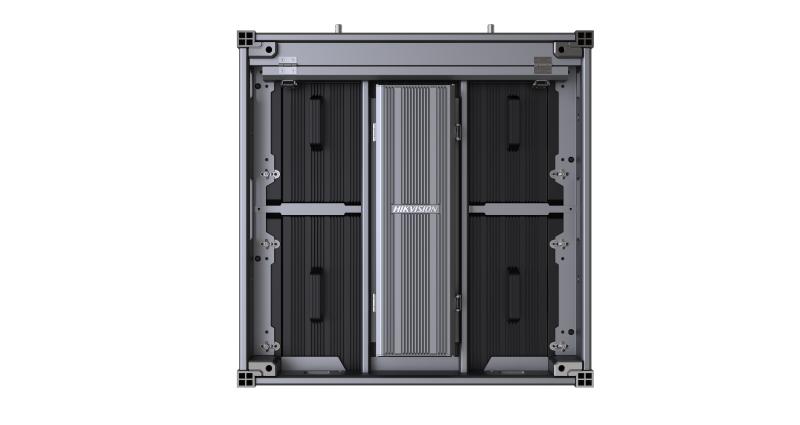

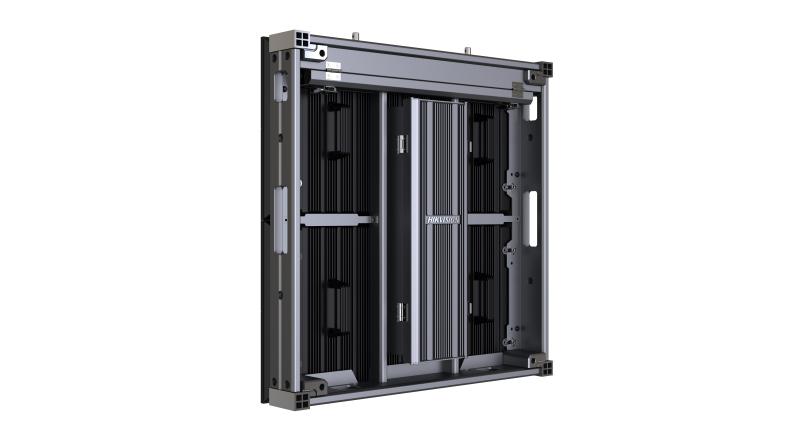

Hikvision P4.8 Outdoor LED Display Unit

Specifications

Pixel Configuration: SMD Triad LED; Pixel Pitch Category: P4.8; Pixel Pitch: 4.81mm; Modules Component: 1 × 2; Dimensions (W × H × D): 500 mm × 500 mm × 97 mm; Resolution: 104×104; Area: 0.25 m²; : 9.12 Kg; Pixel Density: 43264 dots/m²; Lamp Board Housing: With housing; Cabinet Material: Aluminum Profile; Maintenance Method: Front and Rear maintenance; Cabinet Flatness: 0.8 mm; Protection Level: IP66; Lamp Encapsulation: 1921; Control System: Hikvision; White Balance Brightness: 4500 nit (Factory preset brightness)
5000 nit (Peak); Color Temperature: 9300K adjustable; Viewing Angle: Horizontal 160°, vertical 128°; Contrast Ratio: ≥ 5000:1; Color Uniformity: ≤ ± 0.003Cx，Cy; Brightness Uniformity: ≥ 95％; Driving Method: Constant current driving; Frame Frequency: 60 Hz; Refresh Rate: Up to 3840 Hz; Grey Level: Up to 14 bit; Power Supply: 110~220 VAC ± 15%; Max. Consumption: ≤ 650W/㎡ （4500nits）; Average Consumption: ≤ 210 W/㎡ （4500nits）; Working Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉); Working Humidity: 10%~80%RH; Storage Humidity: 10%~90%RH; Storage Temperature: -40 ℃ to +60 ℃ (-40 ℉ to +140 ℉); Relative Humidity: Notice：If used in the following scenarios, please communicate with headquarters for customization：1）Seaside 2）Swimming pool 3）Ambient temperature ≤-40℃; Gross Weight: 10.85KG/1 in 1; Package Dimension (W × H × D): 610mm x 165mm x 606mm; Lifespan: Lamp 100,000 hours
