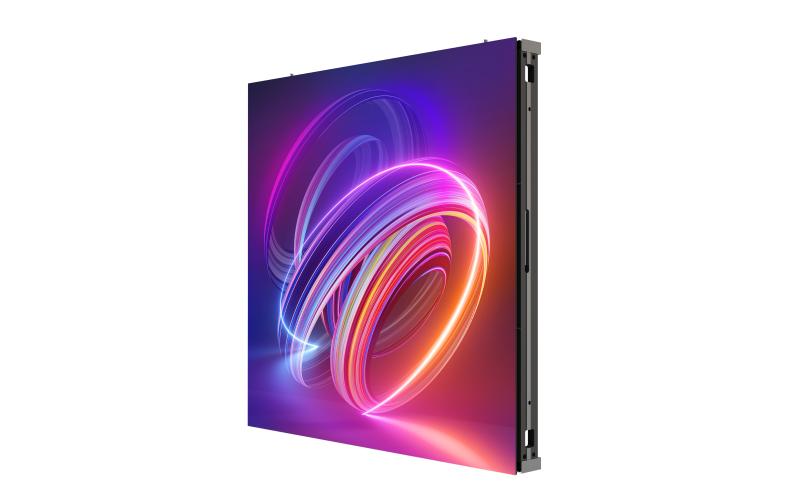

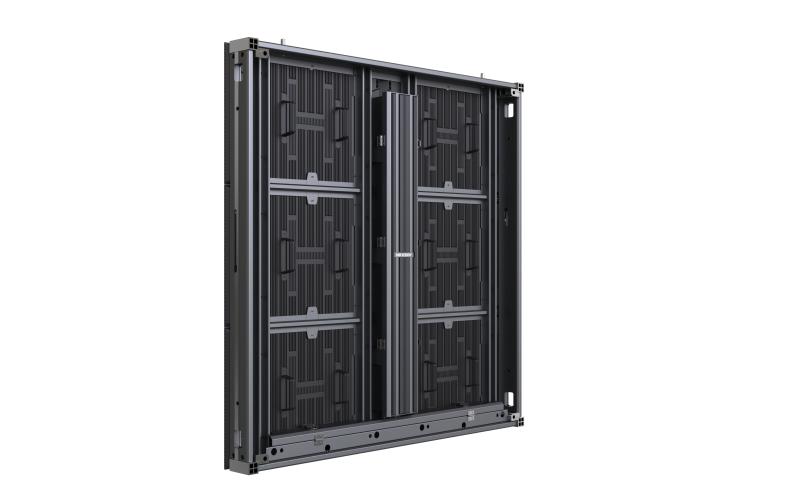

Hikvision P6.6 Outdoor LED Display Unit

Specifications

Modules Component: 3 × 2; Resolution: 144 × 144; Pixel Configuration: SMD Triad LED; Pixel Pitch Category: P6.6; Pixel Pitch: 6.67 mm; Lamp Bead Dimensions: 2727; Dimensions (W × H × D): 960 mm × 960 mm × 100 mm (37.795” × 37.795” × 3.973”); Area: 0.9216 m²; : 27.5 Kg; Pixel Density: 22500 dots/m²; Maintenance Method: Front/Rear maintenance; Waterproof Level: IP66; Component Material: Aluminum Profile; Lamp Encapsulation: 2727(gold wire); Control System: Hikvision; White Balance Brightness: 9000 nit (Factory preset brightness)
10000 nit (Peak); Color Temperature: 9300K adjustable; Viewing Angle: Horizontal 160°, vertical 130°; Contrast Ratio: ≥ 8000:1; Color Uniformity: ≤ ± 0.003Cx，Cy; Brightness Uniformity: ≥ 97％; Driving Method: Constant current driving; Frame Frequency: 50/60 Hz; Refresh Rate: Up to 3840 Hz; Grey Level: 14~16 bit adjustable; Power Supply: 110~220 VAC ± 15%; Max. Consumption: ≤509 W/m² （9000nits）; Average Consumption: ≤169 W/m² （9000nits）; Working Temperature: -40 ℃ to 60 ℃ (-4 ℉ to 140 ℉); Working Humidity: 10%~95%RH (No condensation); Storage Humidity: 10%~95%RH (No condensation); Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉); Gross Weight: 32.05 kg /1 in 1; Package Dimension (W × H × D): 1140 (W) mm × 244 (H) mm × 1068 (D) mm; Lifespan: Lamp 100,000 hours
