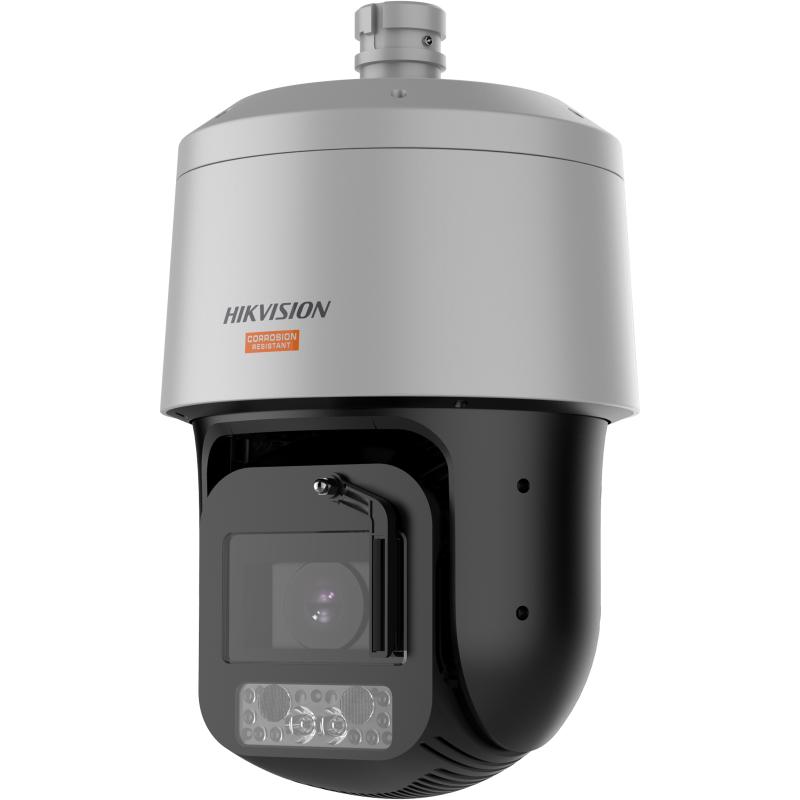

Hikvision Polymer 4MP 42x Anti-corrosion Speed Dome

Specifications

Image Sensor: 1/1.8″ progressive scan CMOS; Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2，AGC ON), 0 Lux with IR; Shutter Speed: 1s to 1/30,000 s; Slow Shutter: Yes; Day & Night: IR cut filter; Zoom: 42x optical, 16x digital; Max. Resolution: 2560 × 1440; Focus: Auto, semi-auto, manual; Focal Length: 6.0 mm to 252 mm; Zoom Speed: Approx. 5.4 s; FOV: Horizontal field of view: 58.8° to 1.97° (wide-tele),
Vertical field of view: 34.6° to 1.12° (wide-tele),
Diagonal field of view: 67.1° to 2.28° (wide-tele); Aperture: Max. F1.2; Supplement Light Type: Hybrid; Supplement Light Range: IR Distance: up to 500 m
White Light Distance: up to 100 m; Smart Supplement Light: Yes; Movement Range (Pan): 360°; Movement Range (Tilt): -20° to 90° (auto flip); Pan Speed: Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s; Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s; Proportional Pan: Yes; Presets: 300; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan; Power-off Memory: Yes; Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan; 3D Positioning: Yes; PTZ Status Display: Yes; Preset Freezing: Yes; Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output; Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); Video Compression: Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16384 Kbps; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 8 fixed regions for each stream; Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM, AAC; Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps~192 Kbps(MP2L2)/16 Kbps~64 Kbps(AAC); Network Storage: NAS (NFS, SMB/ CIFS), ANR; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets; API: ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T); Simultaneous Live View: Up to 20 channels; User/Host: Up to 32 users 3 user levels: administrator, operator, and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address); Client: HikCentral, iVMS-4200, Hik-Connect; Web Browser: IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+; Model Specification: Up to 4 models,
Model type: detection model, classification model, mixed model (detection model and classification model); Day/Night Switch: Day, night, auto, scheduled-switch; Image Enhancement: BLC, HLC, 3D DNR; Wide Dynamic Range (WDR): 120 dB; Defog: Optical defog; Image Stabilization: EIS (Built-in gyroscope to improve EIS performance); Regional Exposure: Yes; Regional Focus: Yes; Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser; Image Parameters Switch: Yes; Privacy Mask: Up to 24 masks, mosaic mask, mask color configurable, rectangle region; SNR: ≥ 52 dB; Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port; On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB; Alarm: 7 inputs, 2 outputs; Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω; RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive; Basic Event: Audio exception, motion detection, video tampering alarm, alarm input, alarm output, exception; Smart Event: Line crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection; Smart Tracking: Manual tracking, auto-tracking; Alarm Linkage: Preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, NAS video recording, audible warning; Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle); Power: 36 VDC ± 25%, max. 60 W,24 VAC ± 25%, max. 60 W; Operating Condition: Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%; Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; Wiper: Yes; Dimension: Ø 242 mm × 398.1 mm (Ø 9.53″ × 15.67″); : Approx. 6 kg (13.2 lb.); EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019); Safety: UL (UL 62368-1)
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);; Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006); Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018),C5; Protection: IP67 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
