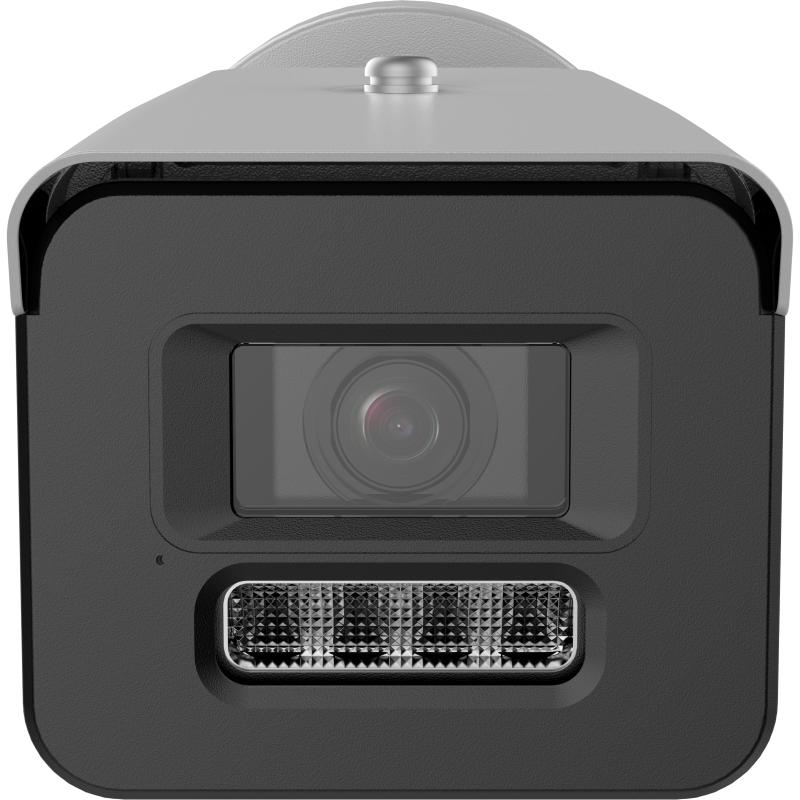

Hikvision Polymer 8MP Anti-Corrosion Fixed Bullet

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 3840 × 2160; Min. Illumination: Color: 0.0008 Lux @ (F1.2, AGC ON),0 Lux with light; Shutter Time: 1/3 s to 1/100,000 s; Day & Night: IR cut filter; Angle Adjustment: Pan: 0° to 90°,tilt: 0° to 360°,rotate: 0° to 360°; Lens Type: Fixed focal lens, 2.8 and 4 mm optional; Focal Length & FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°; Focus: Auto,Semi-auto,Manual; Iris Type: Fixed; Aperture: F1.0; Depth of Field: 2.8 mm: 3.3 m to ∞
4 mm: 3.8 m to ∞; DORI: 2.8 mm, D: 89 m, O: 35 m, R: 17 m, I: 8 m
4 mm, D: 109 m, O: 43 m, R: 21 m, I: 10 m; Supplement Light Type: IR,White Light; Supplement Light Range: Up to 50 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Open Resources: Memory: 60 MB,
Smart RAM: 371 MB,
eMMC: 2 GB; Computing Power: 1.5 TOPS; Open Capability: HEOP 2.0 OpendevSDK, Basic service, basic media capability, deep learning reasoning acceleration capability; Deep Learning Structure: Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX; Programming Language: C,C++,Go; Main Stream: 50 Hz:
20 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 20 fps (704 × 576, 640 × 480)
60 Hz: 24 fps (704 × 480, 640 × 480); Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
*Third stream is supported under certain settings.; Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.; Video Compression: Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
*Third stream and fourth stream are supported under certain settings.; Video Bit Rate: 32 Kbps to 16 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 5 fixed regions for main stream; Target Cropping: Yes; Audio Compression: -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC); Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/48 kHz; Environment Noise Filtering: -U: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP; Simultaneous Live View: Up to 20 channels; API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address); Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200,Hik-Connect,Hik-Central; Web Browser: Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Image Parameters Switch: Yes; Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger; Wide Dynamic Range (WDR): 130 dB; Image Enhancement: BLC,HLC,3D DNR,Defog; SNR: ≥ 52 dB; Privacy Mask: 4 programmable polygon privacy masks; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; Built-in Microphone: -U: Yes,1 built-in microphone; Audio: -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
-S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; Alarm: -S: 1 input, 1 output (max. 12 VDC, 0.1 A); RS-485: -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Reset Key: Yes; Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Smart Event: unattended baggage detection,object removal detection,scene change detection,audio exception detection,defocus detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,-S: trigger alarm output; Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle); Power: 12 VDC ± 25%, 0.84 A, max. 10 W,two-core terminal block,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 10 W; Material: Body: SMC+ 30% GF, Bracket: PA66+ 15% GF, Junction Box: Anodized ADC12; Dimension: 294.27 mm × 120.8 mm × 121.36 mm (11.59″ × 4.76″ × 4.77″); Package Dimension: 395 mm × 195 mm × 158 mm (15.55″ × 7.68″ × 6.22″); : Approx. 1480 g (3.26 lb.); With Package Weight: Approx. 2035 g (4.49 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,anti-banding; EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015; Safety: CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP68: IEC 60529-2013,IK10: IEC 62262:2002; Anti-Corrosion Protection: NEMA 4X: NEMA 250-2018 C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
