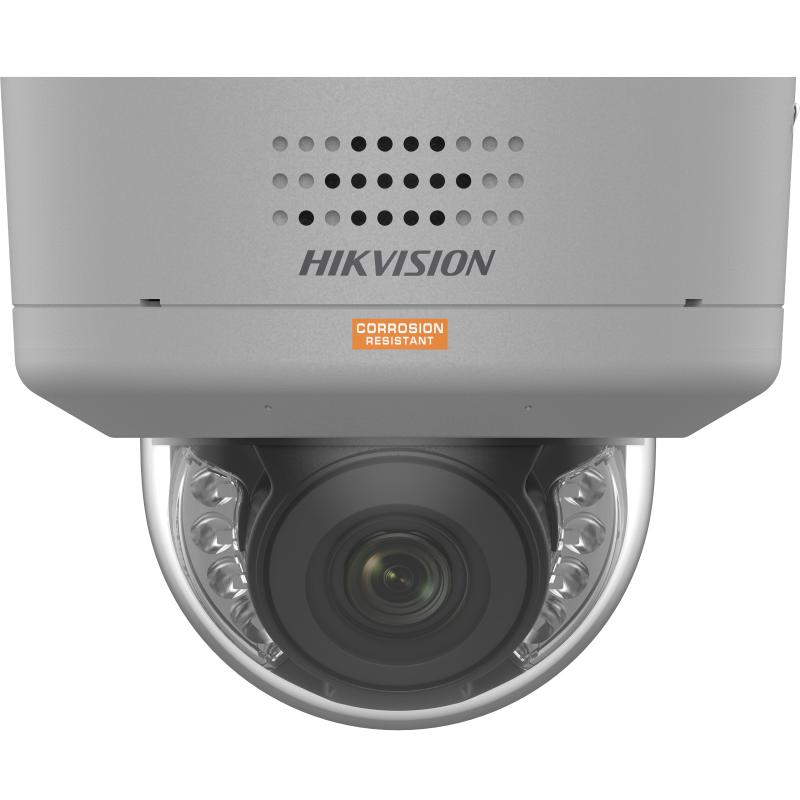

Hikvision Polymer 8MP Anti-Corrosion PTRZ Dome

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 3840 × 2160; Min. Illumination: Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light; Shutter Time: 1/3 s to 1/100,000 s; Day & Night: IR cut filter; Angle Adjustment: Remote adjustment (Max. 1000 cycles)
Pan: -175° to 175°,tilt: 0° to 85°,rotate: 0° to 350°; Lens Type: Varifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional; Focal Length & FOV: 2.7 to 13.5 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
7 to 35 mm, horizontal FOV 41.8° to 15°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°; Lens Mount: Integrated; Focus: Auto,Semi-auto,Manual; Iris Type: DC iris; Aperture: 2.7 to 13.5 mm: Max. F1.2
7 to 35 mm: Max. F1.7; Depth of Field: 1 m to ∞; DORI: 2.7 to 13.5 mm:
Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m
7 to 35 mm:
Wide: D: 218.0 m, O: 86.5 m, R: 43.6 m, I: 21.8 m
Tele: D: 580.0 m, O: 230.2 m, R: 116.0 m, I: 58.0 m; Supplement Light Type: IR,White Light; Supplement Light Range: Up to 40 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Open Resources: Memory: 150 MB,
Smart RAM: 371 MB,
eMMC: 1 GB; Computing Power: 1.5 TOPS; Open Capability: HEOP 2.0 OpendevSDK; Deep Learning Structure: Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX; Programming Language: C,C++,Go; Main Stream: 50 Hz:
20 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 20 fps (704 × 576, 640 × 480)
60 Hz: 24 fps (704 × 480, 640 × 480); Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480); Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360); Video Compression: Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 5 fixed regions for main stream and sub-stream; Target Cropping: Yes; Audio Compression: -S/-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Audio Bit Rate: -S/-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC); Audio Sampling Rate: -S/-U: 8 kHz/16 kHz/32 kHz/48 kHz; Environment Noise Filtering: -S/-U: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP; Simultaneous Live View: Up to 20 channels; API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address); Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200,Hik-Connect,Hik-Central; Web Browser: Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+; Image Parameters Switch: Yes; Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule; Wide Dynamic Range (WDR): 130 dB; Image Enhancement: BLC,HLC,3D DNR,Defog; SNR: ≥ 52 dB; Privacy Mask: 4 programmable polygon privacy masks; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; Built-in Microphone: -U: Yes, 2 built-in microphones; Audio: -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; Alarm: -S: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A); RS-485: -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Reset Key: Yes; Power Output: 12 VDC, max. 100 mA; Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Smart Event: unattended baggage detection,object removal detection,scene change detection,audio exception detection,defocus detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning; Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle); Power: 12 VDC ± 25%, 1.33 A, max. 16 W,two-core terminal block,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 21 W; Material: Base: SMC+ 30%GF, Cover: SMC+ 30%GF, Junction box: Anodized ADC12; Dimension: Ø154.9 mm × 128.53 mm (Ø6.10″ × 5.06″); Package Dimension: 206 mm × 206 mm × 230 mm (8.1″ × 8.1″ × 9.1″); : Approx. 1280 g (2.8 lb.); With Package Weight: Approx. 2750 g (6.1 lb.); General Function: Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter; Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015; Safety: CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IK10: IEC 62262:2002,IP68: IEC 60529-2013; Anti-Corrosion Protection: NEMA 4X: NEMA 250-2018 C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
