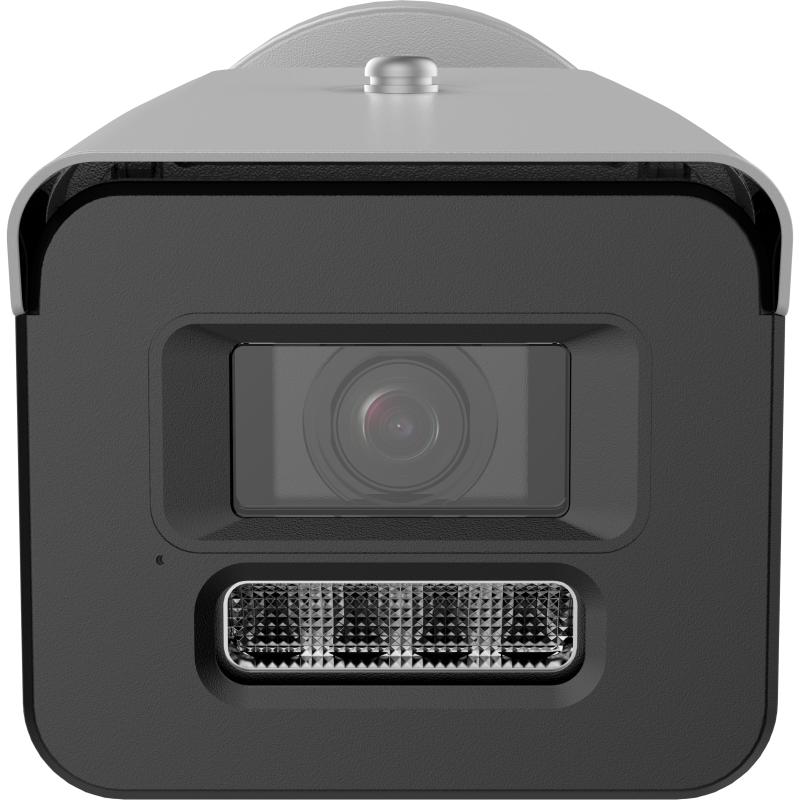

Hikvision Polymer 8MP Anti-Corrosion Vari-focal Bullet

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 3840 × 2160; Min. Illumination: Color: 0.0008 Lux @ (F1.2, AGC ON),0 Lux with light; Shutter Time: 1/3 s to 1/100,000 s; Day & Night: IR cut filter; Angle Adjustment: Pan: 0° to 90°,tilt: 0° to 360°,rotate: 0° to 360°; Lens Type: Varifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional; Focal Length & FOV: 2.7 to 13.5 mm, horizontal FOV 112.3 to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
7 to 35 mm： horizontal FOV 41.8to 15°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°; Focus: Auto,Semi-auto,Manual; Iris Type: DC iris; Aperture: 2.7 to 13.5 mm: max F1.2,
7 to 35 mm: max F1.7; Depth of Field: 1 m to ∞; DORI: 2.7 to 13.5 mm:
Wide: D: 89.2m, O: 35.4 m, R: 17.8 m, I: 8.9 m
Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m
7 to 35 mm:
Wide: D: 218.0 m, O: 86.5 m, R: 43.6 m, I: 21.8 m
Tele: D: 580.0 m, O: 230.2 m, R: 116.0 m, I: 58.0 m; Supplement Light Type: IR,White Light; Supplement Light Range: Up to 50 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Open Resources: Memory: 60 MB,
Smart RAM: 371 MB,
eMMC: 2 GB; Computing Power: 1.5 TOPS; Open Capability: HEOP 2.0 OpendevSDK, Basic service, basic media capability, deep learning reasoning acceleration capability; Deep Learning Structure: Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX; Programming Language: C,C++,Go; Main Stream: 50 Hz:
20 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 20 fps (704 × 576, 640 × 480)
60 Hz: 24 fps (704 × 480, 640 × 480); Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
*Third stream is supported under certain settings.; Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.; Video Compression: Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
*Third stream and fourth stream are supported under certain settings.; Video Bit Rate: 32 Kbps to 16 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 5 fixed regions for main stream; Target Cropping: Yes; Audio Compression: -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC); Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/48 kHz; Environment Noise Filtering: -U: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP; Simultaneous Live View: Up to 20 channels; API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address); Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200,Hik-Connect,Hik-Central; Web Browser: Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Image Parameters Switch: Yes; Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger; Wide Dynamic Range (WDR): 130 dB; Image Enhancement: BLC,HLC,3D DNR,Defog; SNR: ≥ 52 dB; Privacy Mask: 4 programmable polygon privacy masks; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB,
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. The memory card needs to be installed before leaving the factory.; Built-in Microphone: -U: Yes,1 built-in microphone; Audio: -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
-S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; Alarm: -S: 1 input, 1 output (max. 12 VDC, 0.1 A); RS-485: -S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Reset Key: Yes; Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Smart Event: unattended baggage detection,object removal detection,scene change detection,audio exception detection,defocus detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,-S: trigger alarm output; Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle); Power: 12 VDC ± 25%, 0.92 A, max. 11 W,two-core terminal block,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 11 W; Material: Body: SMC+ 30% GF, Bracket: PA66+ 15% GF, Junction Box: Anodized ADC12; Dimension: 294.27 mm × 120.8 mm × 121.36 mm (11.59″ × 4.76″ × 4.77″); Package Dimension: 395 mm × 195 mm × 158 mm (15.55″ × 7.68″ × 6.22″); : Approx. 1480 g (3.26 lb.); With Package Weight: Approx. 2035 g (4.49 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,anti-banding; EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015; Safety: CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP68: IEC 60529-2013,IK10: IEC 62262:2002; Anti-Corrosion Protection: NEMA 4X: NEMA 250-2018 C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
