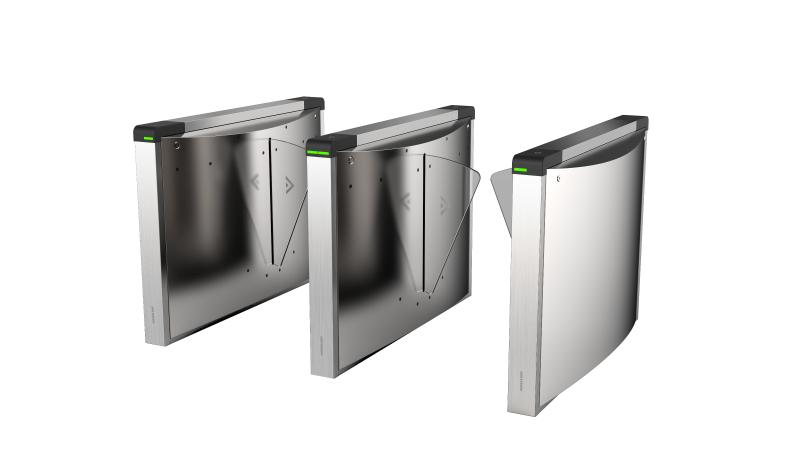

Hikvision Pro Flap Barriers DS-K3Y501SX-L1/Dp60

Specifications

Motor: Servo motor motor; MCBF: ≥ 6 million times; IR light detectors: 12 pairs; Network interface: 1; Lock control: 2; RS-485: 4; RS-232: 4; Card capacity: 60,000; Event capacity: 180,000; Throughput: 30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.; Lane width: 600 mm (23.62″); Barrier material: Acrylic; Pedestal material: SUS304 stainless steel; Working temperature: -20 °C to 70 °C (-4 °F to 158 °F); Working humidity: 0% to 95% (No condensing); Dimensions: Without package: 300 mm × 1010 mm × 1406.8 mm (11.81″ × 39.76″ × 55.38″)
With package: 490 mm × 1160 mm × 1640 mm (19.29″ × 45.67″ × 64.57″); : Without packaging: 74 kg (left and right)/90 kg (middle) (163 lb/198 lb) With packaging: 99 kg (left and right)/115 kg (middle) (218 lb/254 lb); Lane width: 600 mm; Pedestal length: 1410 mm; Module selection: YES; Pedestal width: 300 mm; Wall distance: 130 mm; Base: YES; Barrier material: Acrylic; Application environment: Indoor and outdoor; Authentication mode: Card;Face; Card type: EM;M1; Recommended width: 600 mm; Base model: DS-KSM01/Y501; Product type: Flap barrier; Remote controller type: 433Mhz;868Mhz; Convert Face: NO; Door Height: Default(0.85m); Door wing gap: Default:50mm
