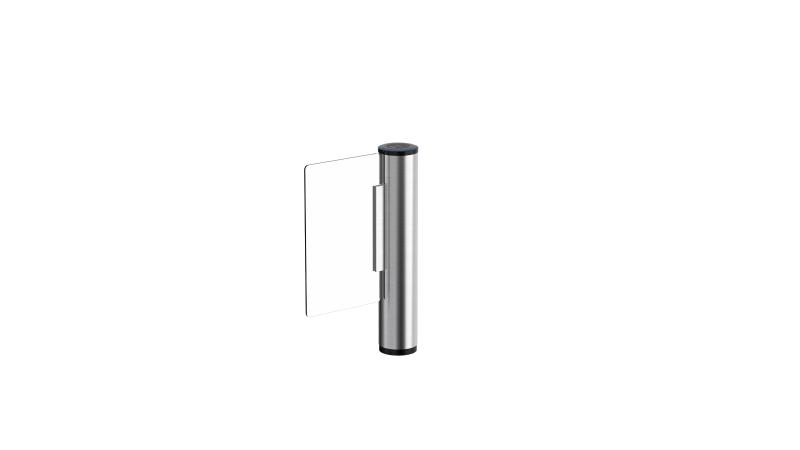

Hikvision Pro Swing Gates DS-K3BC430LX

Specifications

Motor: Brushless motor; MCBF: ≥ 6 Millions; IR light detectors: Not Support; Brake: Support; Exit button: 1; USB: 1; Fire alarm input: 1; Buzzer: Support; Access controller: Optional; Supercapacitor: Support; Network switch: Not supplied; Card receiver: Optional; AP mode: Not Support; Keyfob: Supplied, 433 MHz/868 MHz, within 30 m; Throughput: 30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method; Lane width: For pairs mode： 550~1400mm（Gap 50mm，Door wing height 950mm）For full-height door wing 550~900mm (Gap 50mm，Door wing height 1800mm) For single mode： 650~900mm（Gap 25mm，Door wing height 950mm); Distance between barrier and ground: 950mm – 1800mm; Barrier material: Acrylic glass or Tempered glass; Pedestal material: SUS304 stainless steel with the thickness of 2 mm (0.08″); Indicator: Support; Power: 100 to 240 VAC; 50 to 60 Hz; Power consumption: 36W (stand by); Working temperature: -10 °C to 55 °C (14 °F to 131 °F); Working humidity: 10% to 95% (No Condensing); Dimensions: 180mm x 180mm x 975mm (7.09′ x 7.09′ x 38.39′); : (Net) Left: 30kg (66.14 lbs)
(Rough) Left: 35 kg (77.16 lbs); Approval: CE/CB/CE-LVD/RoHS/REACH/WEEE; Power supply for face recognition module: Supplied; Lane width: double:650,750,900,1100,1200;single:650,700,750,800,850,900;; Pedestal length: 180 mm; Module selection: NO; Pedestal width: 180 mm; Wall distance: 20 mm; Base: NO; Barrier material: Acrylic; Application environment: Indoor; Authentication mode: Card;Face;QR code; Card type: Desfire;M1;EM; Recommended width: 650 mm; Base model: NO; Authentication exclusionary: Card;Face;QR code; Product type: Swing barrier; Remote controller type: 433Mhz;868Mhz; Movement Protrusion Width: 0 mm; Convert Face: NO; Door Height: Default(0.95m);1.8m;; Door wing gap: Default:50mm
