The Hikvision DS-K2M061 is a secure door control module designed for access control systems. It acts as a secure intermediary between the access controller and door hardware, enhancing security and protecting the system from tampering.
Access Control Accessories, Accessories

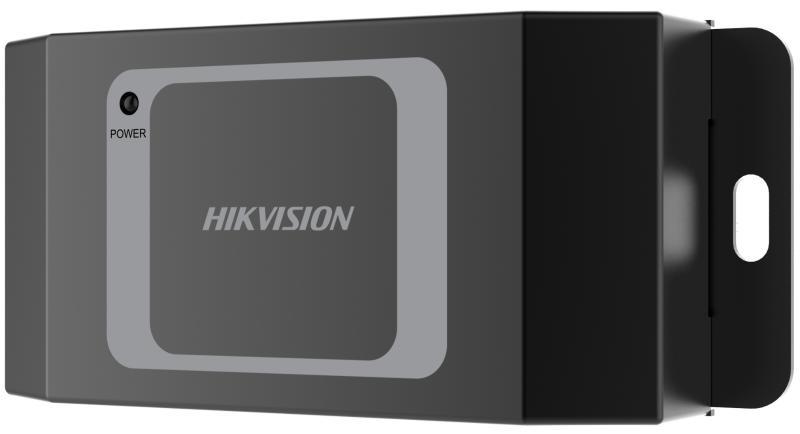

Hikvision Secure Door Control Module (DS-K2M061)
Hikvision DS-K2M061 secure door control module. Enhances security by protecting the access control door hardware from tampering and attacks.
Specifications
Lock control: 1; Exit button: 1; Door contact input: 1; Alarm input: 2; Alarm output: 1; RS-485: 1; Wiegand: 1; Indicator: 1 for power supply; Power supply: 12 VDC 0.5A; Working temperature: -40 °C to 70 °C; Working humidity: 0% to 90%; Dimensions: 48 mm × 115 mm × 26 mm (1.9″ × 4.5″ × 1.0″); Installation: Wall Mounting
