Hikvision Single Input Transmitter DS-PM1-I1-WE

Hikvision Single Input Transmitter DS-PM1-I1-WE

Hikvision DS-PM1-I1-WE wireless relay module. Controls lights and garage doors, enhancing the functionality of an alarm system.

SKU: DS-PM1-I1-WE Category: Brand:
Guaranteed Safe Checkout

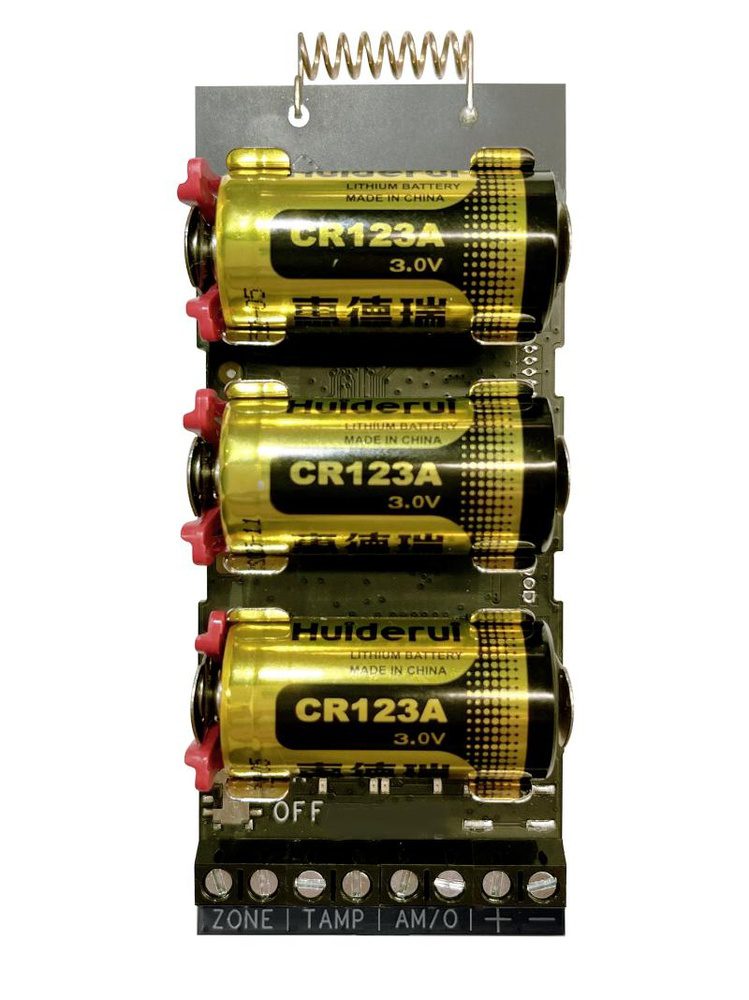

The Hikvision DS-PM1-I1-WE is a wireless relay module for alarm systems. It is designed to control various devices, such as lights and garage doors, with the alarm system. The module is easy to install and is a reliable solution for enhancing the functionality of a security system.

Specifications

Serial port: 1; Power switch: 1; Alarm input: 1 Alarm, 1 Tamper; Alarm output: 1 PGM, AM/Output; 3.3v Output: 1, up to 10mA; Indicator: 3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red); Power supply: 3 CR123; Operation humidity: 10% to 90%; Operation temperature: –10°C to 55°C; Power consumption: Quiescent current: 40.29 uA
Max current: 47.85 mA
Voltage: 3 VDC; Battery life span: Up to 5 years (standby time); RF frequency: 868 MHz; RF method: Two-way communication; RF modulation: 2GFSK; RF distance: 1700 m; Installation method: Put inside wireless ready detector; Dimension(WxHxD): 102 mm × 41 mm × 20 mm; : 35 g (without battery), 90 g (with battery)

DataSheet

Click Here for the DataSheet
