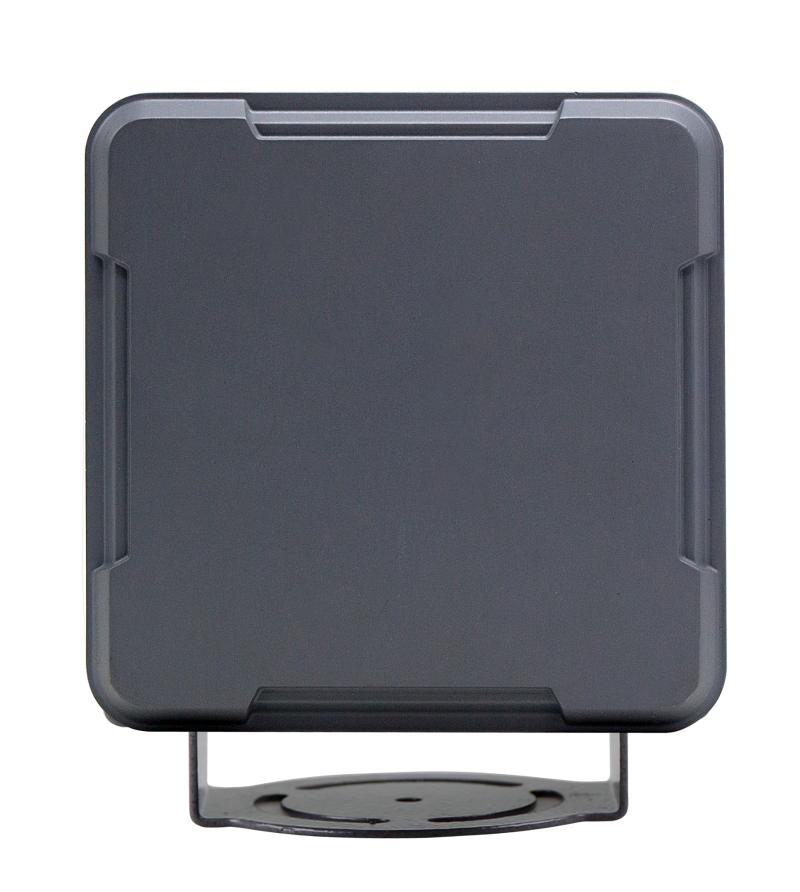

Hikvision Single-Lane Speed Inspection Radar DS-TD10N-1

Hikvision Single-Lane Speed Inspection Radar DS-TD10N-1

Hikvision DS-TD10N-1 traffic radar. Monitors vehicle speed and traffic flow for advanced traffic management, law enforcement, and toll collection.

SKU: DS-TD10N-1 Category: Brand:
Guaranteed Safe Checkout

The Hikvision DS-TD10N-1 is a highly accurate traffic detection radar designed for monitoring vehicle speed and traffic flow. It features a high-performance radar sensor that can detect and track up to 32 vehicles simultaneously. This radar is easy to install and can be used in various traffic applications, including traffic monitoring, law enforcement, and toll collection. It provides real-time data for effective traffic management.

Specifications

EMC: EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021; RF: CE-RED: EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 300440 V2.1.1, EN IEC 62311: 2020; Safety: CE-LVD: EN 61010-1:2010 + A1:2019,
CB: IEC 61010-1:2010,IEC 61010-1:2010/AMD1:2016; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529: 1989+A1: 1999+A2: 2013; Central Frequency: 24.15GHz; Central Frequency Deviation: ≤±45MHZ; Antenna Beam Width: 6°×6°; Capture Distance: single lane18～28m; Velocity Range: 10km/h～250km/h; Degree of Exactitude: （-4～0） km/h; Triggering Accuracy: ≤±1m; Communication Interface: RS485(RS232 optional); Temp range: -40℃～+70℃; Humidity Range: 5%RH～95%RH; Power Supply: 9 V ~12V DC

DataSheet

Click Here for the DataSheet
