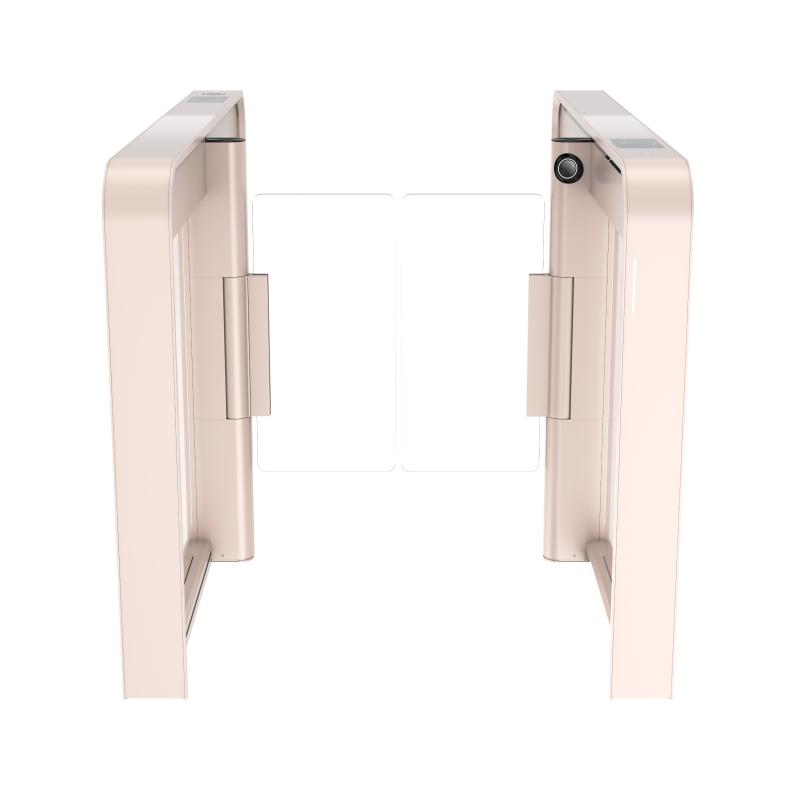

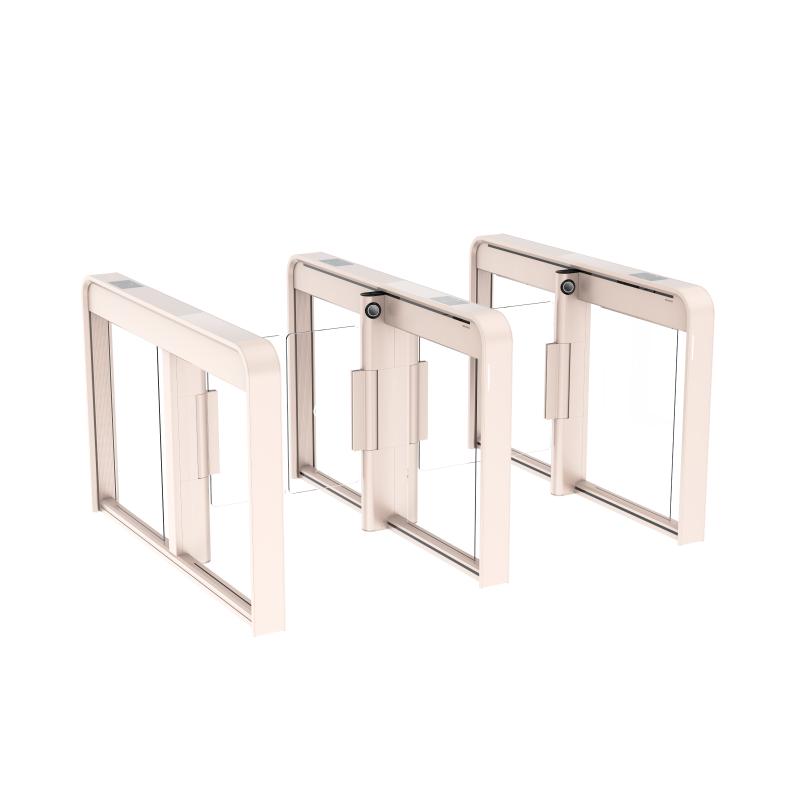

Hikvision Smart Pro Swing Barriers DS-K6B630TDX

Specifications

Motor: Servo motor; MCBF: ≥ 11 million times; Brake: Support; Door open duration: 5 to 60 sec; dToF sensor: 12; Screen size: 6.95-inch; Operation method: Display screen; Type: IPS screen; Resolution: 600 × 1024; Lens: Prime Lens; Video compression standard: H.264; Resolution: 2 MP; FOV: Horizontal: 59°
Vertical: 108°; WDR: Support; Video standard: PAL by default, support NTSC; Focal length: 2.8mm; Aperture: F1.6; Audio compression standard: G.711U; Audio compression bitrate: 16 Kbps; Audio output: Support; Volume adjustment: Support; Power output: 5.5W; Wired network: Support,10M/100M; Wi-Fi: For AP mode only; Network interface: 1; Exit button: Main: 1
Sub: 1; Alarm output: 4; Fire alarm input: 1; Case input: 2; Access controller: Support; Supercapacitor: Support; Network switch: Not supplied; Face capacity: 100,000; Card capacity: 500,000; Event capacity: 1000,000; Palm print and palm vein capacity: 10,000; Face recognition distance: 0 m to 2 m; Face recognition accuracy rate: ＞99%; Face recognition duration: ＜200 ms; Card: M1 or Desfire card; Card reading frequency: 13.56 MHz; Card reading distance: 3cm; Card reading duration: ＜1s; Configuration via PC Web: Support; Configuration via mobile Web: Support; Hik-Connect: Support; Multi-factor authentication: Support; Face anti-spoofing: Support; Face mask recognition: Support; Built-in face recognition: Support; Communication protocol: ISAPI; Keyfob: Support, 433 MHz/868 MHz, within 50 m; Lane width: 550 mm to 1100 mm (21.7″ to 43.3″); Barrier material: 10 mm acrylic glass; Pedestal material: Aluminium alloy; Indicator: Lane status indicator, barrier light; Power consumption: Standby: 70 W
Working: 180 W
Peak: 280 W; Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Working humidity: 10% to 95% (No condensing); Protective level: IP40; Dimensions: Without package: 1550 mm × 120 mm × 1002 mm (61.02″ × 4.72″ × 39.45″)
With package: 1760 mm × 500 mm × 1225 mm (69.30″ × 19.69″ × 48.23″); : Net:
Left: 34.19 kg (75.375 lb)
Middle: 42.46 kg (93.6 lb)
Right: 34.76 kg(76.63 lb)
Gross:
Left: 62.91 kg (138.7 lb)
Middle: 71.52 kg (157.67 lb)
Right: 63.58 kg (140.17 lb); Power supply method: 100 to 240 VAC~, 50/60 Hz, 1.6A; Color: Rose gold; Language: English, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine; Interconnecting cable length: 5.5m; Lane width: 650;750;900;1100; Pedestal length: 1550 mm; Module selection: NO; Pedestal width: 120 mm; Wall distance: 20 mm; Base: YES; Barrier material: Acrylic glass; Application environment: indoor; Authentication mode: Card;Face;QR code; Card type: EM;M1;Desfire; Recommended width: 650 mm; Base model: DS-K6B630X-BASE650-S; Product type: Swing barrier; Remote controller type: 433Mhz;868Mhz; Movement Protrusion Width: 71.6 mm; Convert Face: NO; Door Height: Default(0.85m); Door wing gap: Default:50mm; Integrated Auth: Card;Face;QR code;Screen
