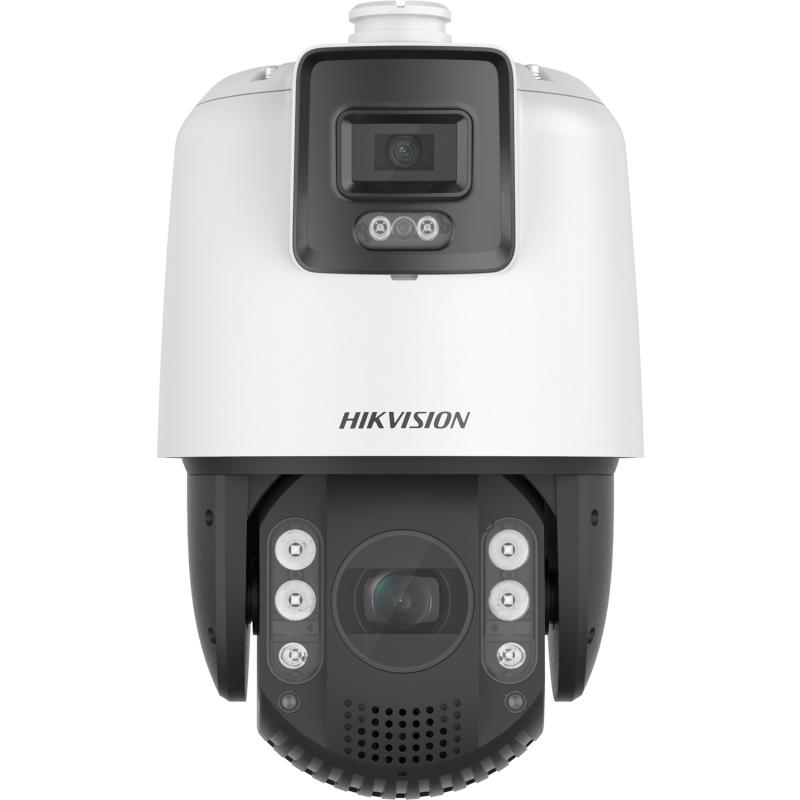

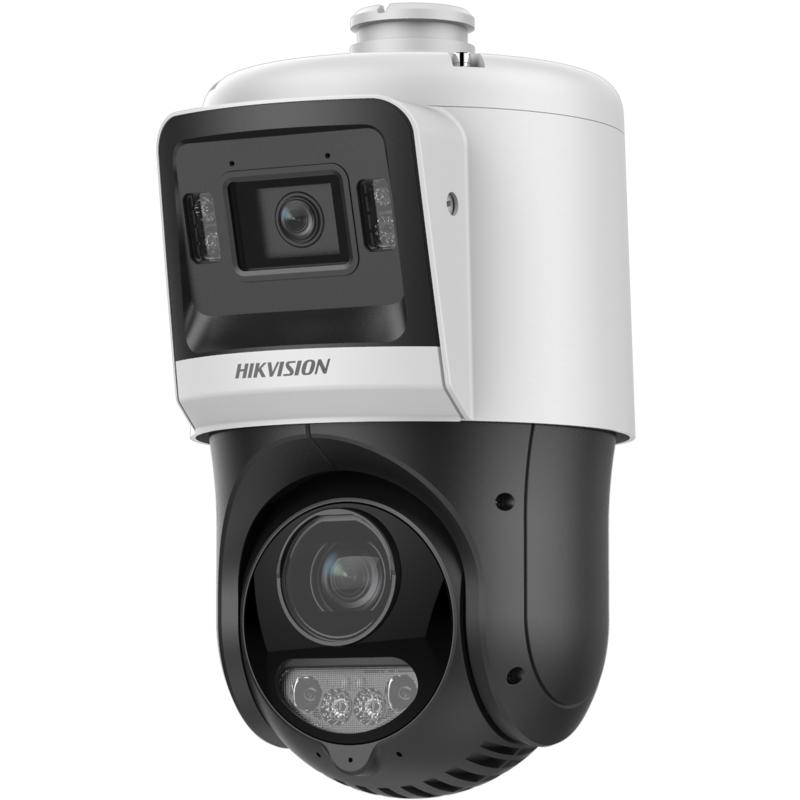

Hikvision TandemVu 4+4MP 25X ColorVu & IR Acusense Network Speed Dome

Specifications

Image Sensor: [Bullet channel]: 1/1.8″ Progressive Scan CMOS; [PTZ channel]: 1/1.8″ progressive scan CMOS; Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440; Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR; Shutter Speed: 1 s to 1/30,000 s; Day & Night: ICR; Zoom: [PTZ channel] 25 × optical, 16 × digital; Slow Shutter: yes; HLC: yes; 3D DNR: yes; Focal Length: [Bullet channel]: 4 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical; FOV: [Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°;
[PTZ channel]:
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele); Focus: semi-auto||manual||auto; Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6; Zoom Speed: [PTZ channel]: approx. 3.6 s; Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light; Supplement Light Range: [PTZ channel]: up to 200 m; [Bullet channel]: up to 30 m; Smart Supplement Light: Yes; Movement Range (Pan): 360°; Movement Range (Tilt): -15° to 90° (auto flip); Pan Speed: pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s; Tilt Speed: tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s; Proportional Pan: yes; Presets: 300; Preset Freezing: yes; Patrol Scan: 8 patrols, up to 32 presets for each patrol; Pattern Scan: 4 pattern scans; Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan; 3D Positioning: yes; PTZ Status Display: yes; Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output; Power-off Memory: yes; Main Stream: [Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: [Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); Third Stream: [Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); Video Compression: H.265||H.264||MJPEG; Video Bit Rate: 32 kbps to 16384 kbps; H.264 Type: baseline profile||main profile||high profile; H.265 Type: main profile; Scalable Video Coding (SVC): yes; Region of Interest (ROI): main stream, sub-stream and third stream respectively support eight fixed areas; Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM; Audio Bit Rate: 32 to 192 Kbps (MP2L2); Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz; Environment Noise Filtering: yes; Protocols: IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour; Simultaneous Live View: 20; API: Open-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP; User/Host: 32; Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter; Network Storage: NAS (NFS, SMB/ CIFS)|| ANR||ANR; Client: iVMS-4200||Hik-Connect; Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+; Image Parameters Switch: Yes; Image Settings: saturation||brightness||contrast||sharpness; Day/Night Switch: day, night, auto, scheduled-switch; Wide Dynamic Range (WDR): 120 dB WDR; SNR: ＞52dB; Defog: yes; Image Stabilization: EIS (Built-in gyroscope to improve EIS performance); Image Enhancement: BLC, HLC, 3D DNR; Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable; Regional Focus: yes; Regional Exposure: yes; Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port; On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,1 audio output, line level, impedance: 600 Ω; Alarm: 2 input(s), 1 output(s); Reset: yes; Basic Event: [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception; Smart Event: [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection; Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan); Smart Tracking: [PTZ channel] yes; Smart Linkage: Manual tracking, auto tracking, tracking takeover, track in turn; Face Capture: [Bullet channel] no,[PTZ channel] yes; Power: 24 VAC, Hi-PoE; Dimension: Ø 220 mm × 382.1 mm (Ø 8.66″ × 15.04″); : Approx. 6 kg (13.23 lb.); Material: ADC12; Operating Condition: -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH; General Function: mirror, password protection, watermark, IP address filter; Demist: Demist by heating the glass; Power Consumption and Current: Max. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light; Protection: IP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
