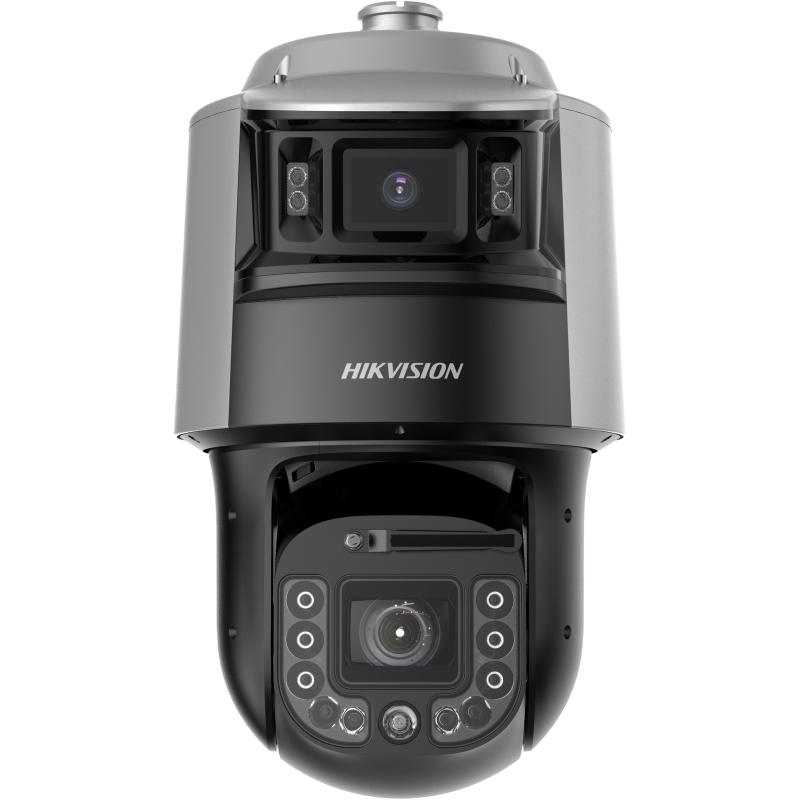

Specifications
Image Sensor: [Bullet channel] 1/1.8″” Progressive Scan CMOS, [PTZ channel] 1/1.8″” Progressive Scan CMOS; Max. Resolution: 2560 × 1440; Min. Illumination: [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR,
[PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR; Shutter Speed: 1/1~1/30000 s; Day & Night: [Bullet channel] 24/7 color imaging, [PTZ channel] IR cut filter; Zoom: [PTZ channel] 32 × optical, 16 × digital; Slow Shutter: yes; Focal Length: [Bullet channel] 4 mm, [PTZ channel] 7.1 to 227.2 mm; FOV: [Bullet channel]: 90°, [PTZ channel]: approx. 60.2° to 2.3° (wide-tele); Focus: semi-auto,manual,auto; Aperture: [Bullet channel] F1.0, [PTZ channel] F1.5; Zoom Speed: [Bullet channel] No, [PTZ channel] approx. 5.6 s; Supplement Light Range: [Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m; Smart Supplement Light: yes; Movement Range (Pan): [PTZ channel] 0° to 360°; Movement Range (Tilt): [PTZ channel] -20° to 90°; Pan Speed: [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s; Tilt Speed: [PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s; Proportional Pan: [Bullet channel] No, [PTZ channel] Yes; Presets: 300; Preset Freezing: yes; Patrol Scan: 8 patrols; Pattern Scan: 4 pattern scans; Park Action: preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan; 3D Positioning: yes; PTZ Status Display: yes; Scheduled Task: preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output; Power-off Memory: yes; Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); Video Compression: H.265,H.264,MJPEG; Video Bit Rate: 32 to 16384 Kbps; H.264 Type: Baseline Profile, Main Profile, High Profile; H.265 Type: Main Profile; Scalable Video Coding (SVC): yes; Region of Interest (ROI): fixed region; Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM; Audio Bit Rate: MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps, AAC-LC: 16 kbps, 32 kbps, 64 kbps; Audio Sampling Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz, AAC-LC: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; Environment Noise Filtering: yes; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, websocket, websockets; Simultaneous Live View: 20; API: ISUP, Open-ended API, ISAPI, Hikvision SDK, Ehome, Open Network Video Interface; User/Host: 32; Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter; Network Storage: ANR, NAS (NFS, SMB/CIFS); Client: iVMS-4200; Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+; Image Parameters Switch: yes; Image Settings: saturation, brightness, contrast, sharpness; Day/Night Switch: day, night, auto, scheduled-switch; Wide Dynamic Range (WDR): 120 dB WDR; SNR: ≥52dB; Defog: Optical defog; Image Stabilization: yes; Image Enhancement: BLC,HLC,3D DNR; Privacy Mask: [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable; Regional Focus: [Bullet channel] No, [PTZ channel] Yes; Regional Exposure: yes; Gyroscope: yes; Ethernet Interface: 1 RJ45 100M self-adaptive Ethernet port; On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB; Built-in Speaker: 1 built-in speaker; Audio: 1 audio input, 2.0 to 2.4 Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω; Alarm: 7 alarm inputs, 2 alarm output; RS-485: Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive; Reset: yes; Basic Event: audio exception, video tampering alarm, alarm in, alarm out, exceptions; Linkage: Upload to FTP/NAS/memory card, audible warning, preset, patrol scan, pattern scan, send email, notify surveillance center, white light flashing, trigger alarm output, trigger recording; Multi-Target-Type Detection: [Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle; Detection Distance: ≤100 m; Water Level Range: 0 to 40 m; Minimum Scale: 1 cm; Detection Accuracy: ±2 cm; Power: 12 VDC/5 A
max. 60 W (including 6 W for heater and 6 w for supplement light in panoramic channel, and 6 W for heater and 12 w for supplement light in PTZ channel); Dimension: Ø243 mm × 424 mm (Ø9.57″ × 16.69″); : Approx. 9.845 kg (21.7 lb.); Material: ADC12; Operating Condition: -40 °C to 70 °C (-40 °F to 158 °F). Humidity 90% or less (non-condensing)
Operationg temperature for the speaker: -30 ℃ to 55 ℃ (-22 °F to 131 °F).; General Function: mirror,password protection,watermark,IP address filter; Wiper: yes; Demist: yes; Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; Protection: IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
