The Hikvision DS-TP50-08H/4T is a high-performance traffic light controller designed for advanced traffic management. It features a variety of advanced features, including vehicle detection, pedestrian detection, and signal control. The controller is easy to install and can be used in a variety of traffic applications, including traffic monitoring, law enforcement, and toll collection.
Checkpoint Systems

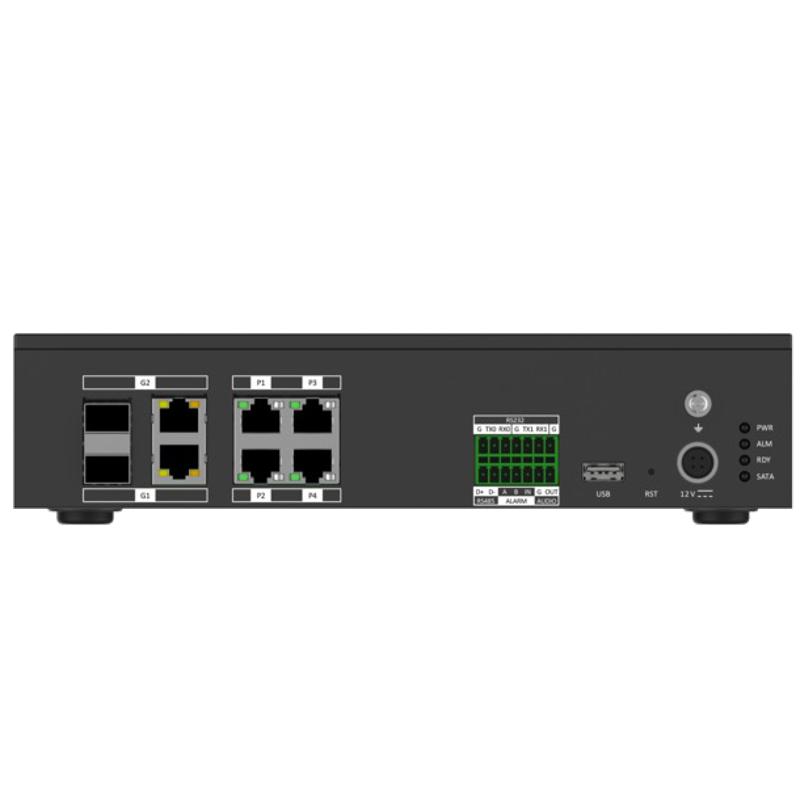

Hikvision Terminal Serve DS-TP50-08H/4T
Hikvision DS-TP50-08H/4T traffic light controller. Vehicle and pedestrian detection for advanced traffic management and law enforcement.
Specifications
Video: 4 × video inputs, 4 × video inputs via switches; Video Compression: H.264, H.265; Protocols: TCP/IP,HTTP,DNS,RTP,RTSP,NTP,FTP; Security: Heartbeat, password protection, and NTP time sync.; Ethernet Interface: 4 RJ45 100 M self-adaptive Ethernet port(s),2 RJ45 10/100/1000 M self-adaptive Ethernet port(s); Alarm: 1 input, 1 output; RS-485: 1 RS-485; RS-232: 2 RS-232; USB: 1 USB 2.0 interface(s); Indicator: 4 × indicator(s) (1 × power indicator, 1 × alarm indicator, 1 × SATA indicator, 1 × ready indicator); Power: 12 VDC ± 10%, max. 30 W; Dimension: 245 mm × 170 mm × 55 mm (9.6″ × 6.7″ × 2.1″); Weight: 2 kg (4.4 lb.); Operating Condition: -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing)
DataSheet
