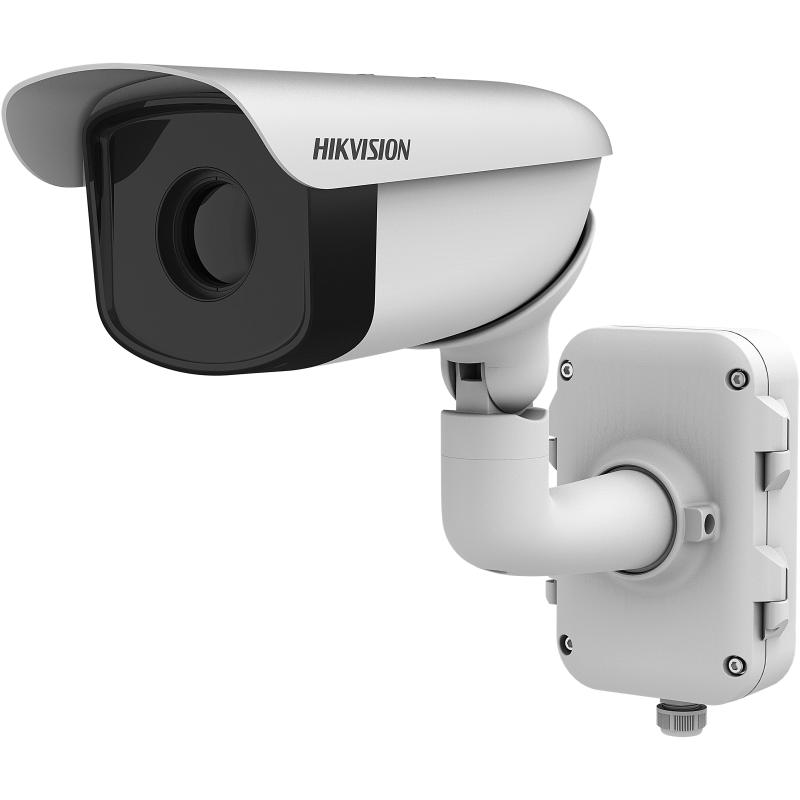

Hikvision Thermal Network Bullet Camera DS-2TD2367-50/PY

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 640 × 512; Pixel Interval: 17 μm; Response Waveband: 8 μm to 14 μm; NETD: < 35 mk (25 °C, F# = 1.0); Focal Length: 50mm; IFOV: 0.34 mrad; Field of View: 12.4° × 10° (H × V); Min. Focusing Distance: 50 m; Aperture: F 1.0; Digital Zoom: ×2, ×4, ×8; Target Coloration: Yes. Supported in white hot and black hot mode.; VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.; Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).; Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F); Temperature Accuracy: Max (±8 °C, ±8 %); Fire Detection: Dynamic fire detection, up to 10 fire points detectable.; Main Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288); Sub-stream: 50 Hz: 25 fps (704 × 576, 640 × 512,352 × 288); Third Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288); Video Compression: Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG; Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE SRTP, SFTP; API: ISAPI, HIKVISION SDK, open network video interface; Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering; Simultaneous Live View: Up to 20 channels; Client: iVMS-4200, Hik-Connect; Web Browser: IE 11, Chrome 41-44, Firefox 30-51; Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Alarm Input: 2, alarm input (0-5 VDC); Alarm Output: 2, alarm output; Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage; Audio Input: 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%; Audio Output: Linear level, impedance: 600 Ω; Communication Interface: 1, RJ45 10 M/100 M self-adaptive Ethernet interface 1, RS-485 interface 1, Single Mode Fiber interface; TX: 1310 nm; RX 1550 nm; Transmission Distance: 20 km; Transmission Speed: 100 M;; Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: 24 VAC ± 25%, two-core terminal block PoE (802.3at, class 4); Power Consumption: 18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W 9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W PoE (802.3at, class 4): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W; Working Temperature/Humidity: Temperature: - 40 °C to 65 °C (- 40 °F to 149 °F) Humidity: 90% or less; Protection Level: IP67 Standard TVS 6000V lightning protection, surge protection, voltage transient protection; Dimensions: 535mm × 400mm × 171mm (21.06" × 15.75" × 6.73"); : Approx. 6.40 kg (14.11 lb); VCA Range for Humans: 350 m; VCA Range for Vehicles: 1050 m
