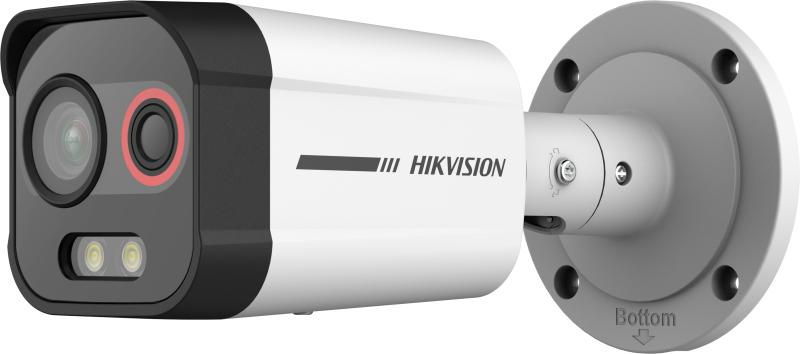

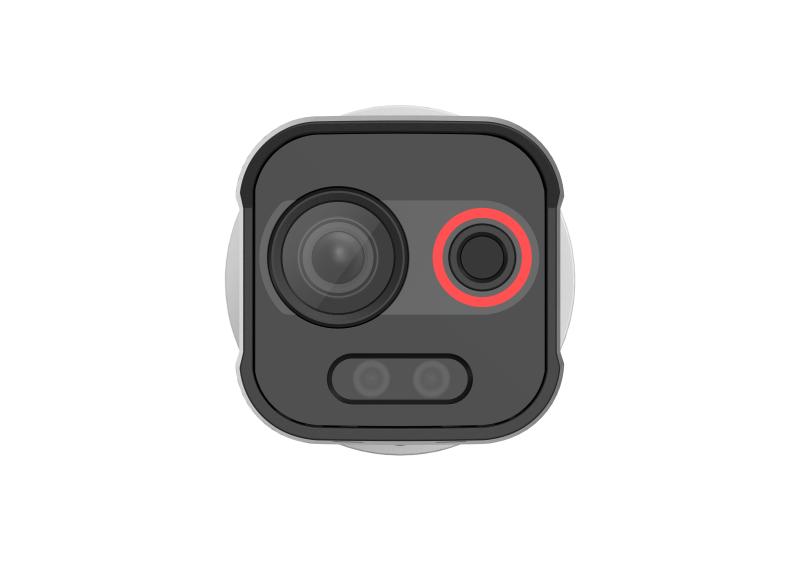

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera DS-2TD2608-1/QA/FP

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 96 × 72; Pixel Pitch: 12 μm; Spectral Range: 8 μm to 14 μm; NETD: < 55 mK (25°C, F1.0); Focal Length: 1.35 mm; IFOV: 8.89 mrad; Field of View: 50.0° × 37.5° (H × V); Min. Focusing Distance: 0.05 m; Aperture: F1.0; Digital Zoom: ×2, ×4; Image Sensor: 1/1.8" Progressive Scan CMOS; Resolution: 2688 × 1520; Min. Illumination: 0.0003 Lux @（F1.0，AGC ON）, 0 Lux with Light; Shutter Speed: 1 s to 1/100,000 s; Focal Length: 4 mm; Field of View: 94.0° × 50° (H × V); Aperture (Range): F1.0; WDR: 120 dB; Light Supplement: Warm Light; Light Supplement Distance: 30 m; White Light Range: Up to 30 m; Visual Alarm: Yes. White light alarm with adjustable flashing frequencies; Audio alarm: Yes 1 preset voice alerts 6 importable user-defined voice alerts; Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line); Temperature Range: -20°C to 300°C (-4°F to 572°F); Temperature Accuracy: Max (±4°C/7.2°F, ±4%), for ambient temperature 15°C to 35°C (59°F to 95°F) Max (±8°C/14.4°F, ±8%)，for other ambient temperature; Fire Detection: Support; Smoking Detection: Support; Main Stream: Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288，320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-stream: Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240); Video Compression: Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG; Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM; Protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,SSL; Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G); Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering; Client: iVMS-4200, Hik-Connect; Web Browser: Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +,macOS10.13 +,Safari 12+ Local service : Chrome 57.0 +, Firefox 52.0 +; Alarm Input: 2, alarm input (0-5 VDC); Alarm Output: 2, alarm output (alarm response actions configurable); Alarm Action: Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email; Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.; Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3); Power Consumption: 12 VDC ± 25%: 0.7 A, Max.8.5 W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W; Working Temperature/Humidity: Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less; Protection Level: IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing; Dimensions: 211.5 mm × 105 mm × 105 mm (8.32" × 4.13" × 4.13"); : 869.2 g (1.92 lb)
