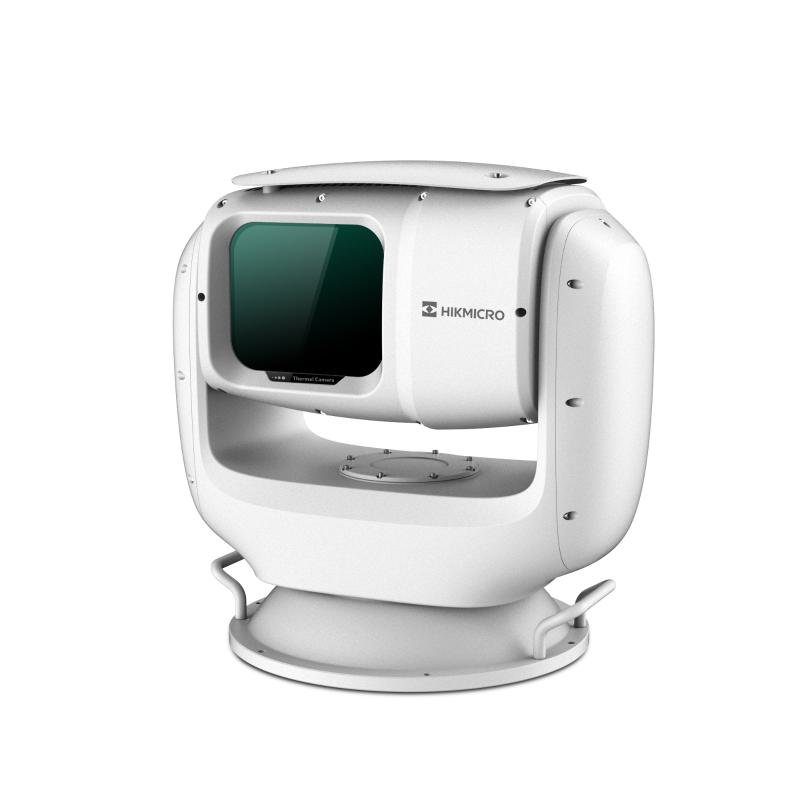

Hikvision Thermal Panoramic Scanner HM-TD71C8-55/W(B)

Specifications

Image Sensor: VOx Uncooled Focal Plane Arrays; Resolution: 26376 x 1280; Pixel Pitch: 12 μm; NETD: ≤ 25 mK (@25° C,F# = 1.0); Focal Length: 55 mm; Focus Mode: Semi-auto & Manual; IFOV: 0.22 mrad; Aperture: F1.0; Field of View: 360° × 17.5° (H × V); Min. Focusing Distance: 7.5 m; Target Coloration: Supported in white hot and black hot mode; Movement Range: Pan: 360° Continuous Rotate; Tilt: From -25° to + 45°; Pan Speed: 360° / 2.24s; VCA: Support 3 VCA rule types (Intrusion, Region Entrance, and Region Exiting), up to 200 VCA rules; Fire Detection: Dynamic fire point detection, up to 200 fire points detectable; Main Stream: 25 fps (4096 × 2160); Sub-stream: 25 fps (1024 × 1280); Video Compression: Main stream: H.265/H.264
Sub-stream: H.265/H.264; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE; Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); API: ISAPI, HIKVISION SDK, Open Network Video Interface (Profile S, Profile G, Profile T); Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering; Client: iVMS-4200, Hik-Connect, Hik-Central, HCP; Web Browser: Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +; Alarm Input: 1-ch inputs (0 to 5 VDC); Alarm Output: 1-ch relay outputs, alarm response actions configurable; Alarm Action: SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage; Communication Interface: 1, RJ45 10 M/100 M/1000 M Self-adaptive Ethernet interface.
1, RS-485 interface; Menu Language: 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: 30 VDC~60 VDC, two-core terminal block; Power Consumption: Max. 150 W; Working Temperature/Humidity: From -40°C to 60°C (-40°F to 140°F); Humidity: 90% ± 3% (no condensation); Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection; Dimensions: 408 mm × 310 mm × 407 mm; : Approx. 25kg (55.1 lb); VCA Range for Humans: 1000 m; VCA Range for Vehicles: 3000 m
