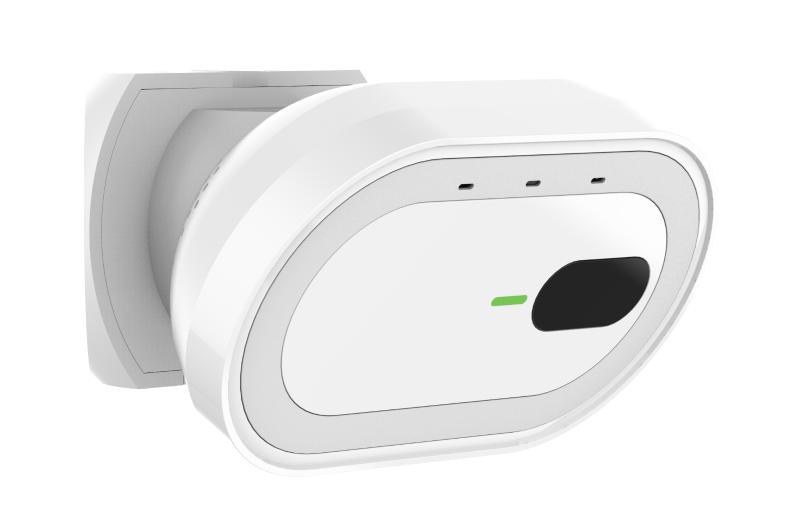

Hikvision Thermal Presence Detector HM-TD1018-1/QR

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 160 × 120; Pixel Pitch: 12 μm; Spectral Range: 8 μm to 14 μm; NETD: < 50 mK (25°C, F#=1.1); Focal Length: 1.3 mm; Field of View: 90.0° (H)x65.2° (V); Min. Focusing Distance: 0.01 m; Aperture: F1.0; Main Stream: Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240); Sub-stream: Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240); Video Compression: H.264/H.265/MJPEG, H.265/MJPEG encoding support Main Profile, H.264 support Baseline/Main/High Profile; Protocols: IPv4,HTTP,HTTPS,Qos,FTP,SNMP,DDNS,TCP,PPPoE,RTSP,UPnP; Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage; API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G); Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering; Client: iVMS-4200/EZVIZ/HIK-CONNCET/HIK-CENTRAL; Web Browser: Internet Explorer 11+, Chrome 18.0 +, Firefox 5.0 +, Safari5.02+; Alarm Output: 1, alarm output (alarm response actions configurable); Alarm Action: SD recording/Relay output/Smart capture/FTP upload; Audio Input: Built-In Mic; Audio Output: Built-In Speaker; Communication Interface: 1, RS-485 interface (half duplex); Reset Key: 1 reset button built in the motherboard; Working Frequency Range: 60GHz ~64GHz; Modulation Waveform: FMCW; Capture Distance: 0.3 m-4m; Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: DC 12 V（±20%）：0.5 A, max. 5W PoE (802.3af)：36 V to 57 V, 0.17 A to 0.11 A, max. 6W; Working Temperature/Humidity: Temperature: -20°C to 50°C (-4°F to 122°F) Humidity: 95% or less; Protection Level: IP40; Dimensions: 130mm*102mm*75mm; : 0.38kg (0.84 lb); Mount: Corner Mount; EMC: EN55032
