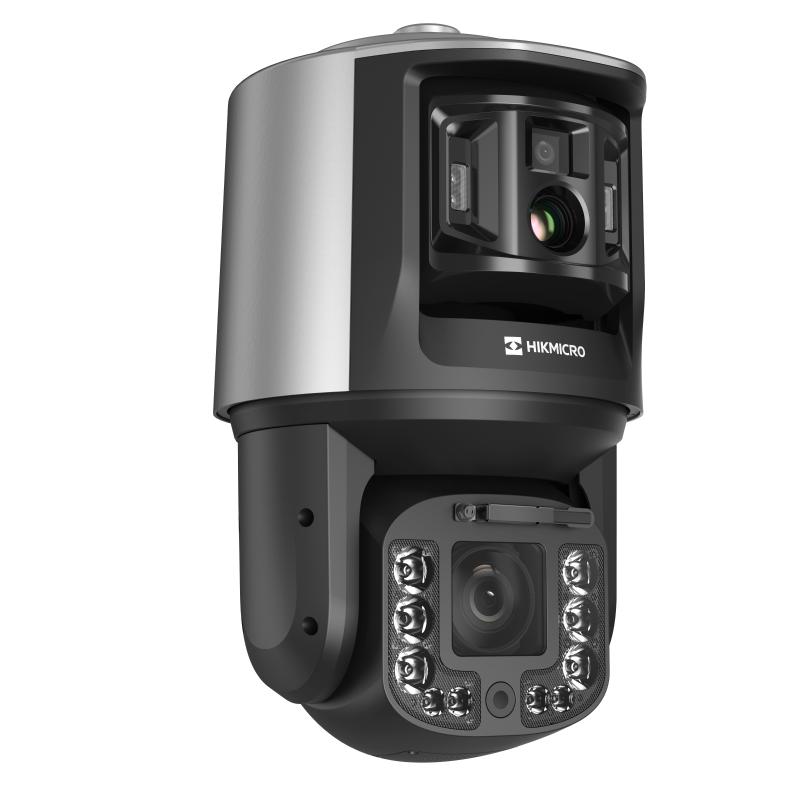

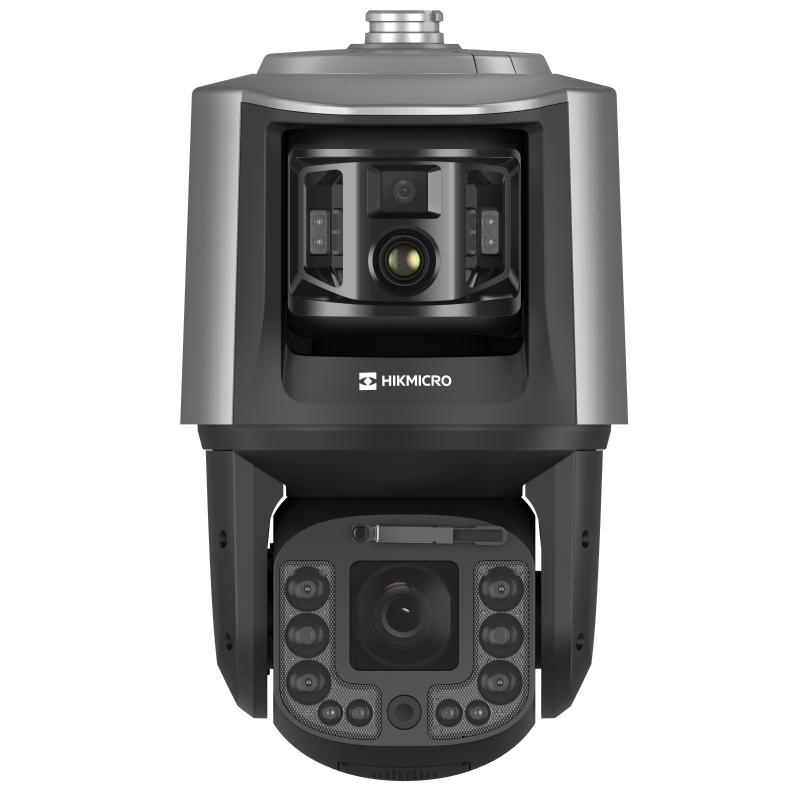

Hikvision Thermal Smart Linkage Tracking System HM-TX2840-10/G0/T1

Specifications

Light Supplement: Up to 250m whitelight supplement; VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.; Click Linkage: One-Touch automatically calibration; Tracking Mode: Manual/Auto; Event Tracking: Intrusion Detection, Line Crossing Detection; Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 256 x 192; Pixel Pitch: 12 μm; Spectral Range: 8 μm to 14 μm; NETD (Noise Equivalent Temperature Difference): < 25 mK (25°C, F1.0); Focal Length: 9.7 mm; IFOV: 1.2 mrad; Field of View: 19.5° × 15.4° (H × V); Min. Focusing Distance: 1.3 m; Aperture: F1.0; Digital Zoom: x2, x4, x8; Image Sensor: 1/1.8”CMOS; Resolution: 2688 × 1520; Focal Length: 8 mm; Field of View: 39.4° × 21.96° (H × V); Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON); Aperture: F1.5; Main Stream: Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-stream: Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240); Video Compression: Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG; Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/AAC; Alarm Input: 2-ch inputs (0-5 VDC); Alarm Output: 2-ch relay outputs, alarm response actions configurable; Audio Input: 1-ch, Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%; Audio Output: 1-ch, Linear Level; Impedance: 600 Ω; Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface 1, BNC 1.0 V [p-p]/75 Ω video output; Image Sensor: 1/1.8'' progressive scan CMOS; Resolution: 2688 x 1520; Min. Illumination: Color: 0.0003 Lux @(F1.3, AGC ON), 0 Lux with light on; Focal Length: 6 - 240mm, 40 × optical zoom; Field of View: 59°(H)*34.16°(V)-1.77°(H)*1.0°(V); Digital Zoom: ×2, ×4, ×8, x16; Aperture Range: F1.3-F4.6; Focus Mode: Auto/Semi-auto/Manual; WDR: 120 dB; Optical Defog: Yes; Image Enhancement: 3D DNR, EIS, HLC/BLC; Pan Speed: configurable from 1° to 160°/s; Tilt Speed: configurable from 1°/s to 90°/s; Main Stream: 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-Stream: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120) 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144); Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE; Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G); Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering; Client: iVMS-4200, Hik-Connect; Web Browser: Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +; Power Supply: DC36V,AC24V,PoE++; Power Consumption: Max. 90W; Working Temperature/Humidity: -40 °C to +70 °C (- 40 °F to 149 °F), Humidity: 90% or less; Protection Level: IP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection; Dimensions: 458.7mm x 266.6mm x 290mm; : 13.5kg
