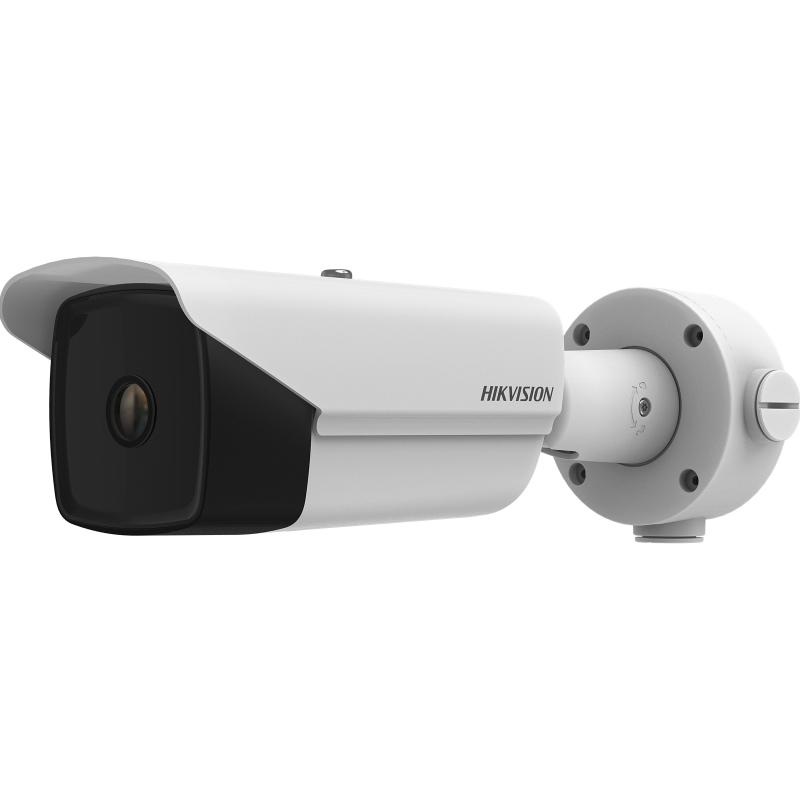

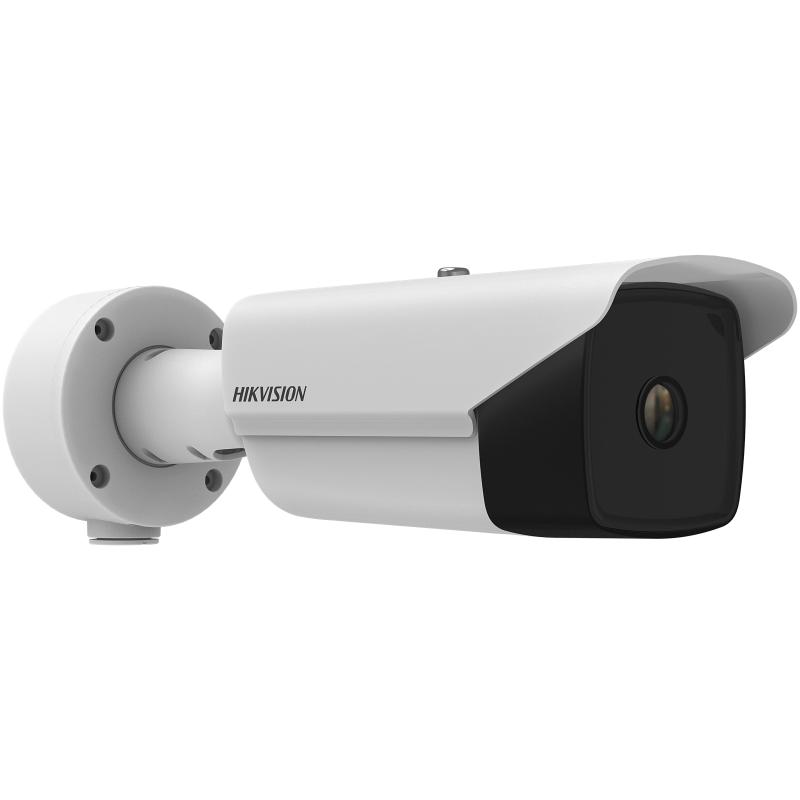

Hikvision Thermographic Network Bullet Camera DS-2TD2137T-4/QY

Specifications

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays; Resolution: 384 x 288; Pixel Pitch: 17 μm; Spectral Range: 8 μm to 14 μm; NETD: ≤ 35 mK (@25° C,F# = 1.0); Focal Length: 4.4 mm; IFOV: 3.86 mrad; Aperture: F1.0; Field of View: 90° × 65.3° (H × V); Min. Focusing Distance: 0.3 m; Digital Zoom: ×2, ×4, ×8; Target Coloration: Yes. Supported in white hot and black hot mode.; VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.; Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line); Temperature Range: -20°C to 550°C (-4°F to 1022°F);; Temperature Accuracy: Max (±2°C, ±2 %); Main Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288); Sub-stream: 50 Hz: 25 fps (704 × 576, 352 × 288, 384 × 288); Third Stream: 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 384 × 288); Video Compression: Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG; Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM; Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL; Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G); Simultaneous Live View: Up to 20 channels; User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User; Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering; Client: iVMS-4200, Hik-Connect; Alarm Input: 2, alarm input (0-5 VDC); Alarm Output: 2, alarm output (alarm response actions configurable); Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage; Audio Input: 1, 3.5 mm Mic in/Line in interface
Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%; Audio Output: Linear level, impedance: 600 Ω; Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex); Analog Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC; Menu Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil); Power Supply: 24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3); Power Consumption: 24 VAC ± 25%: 0.13 A to 0.22 A, max 5 W
12 VDC ± 25%: 0.37 A to 0.61 A, max 5 W
24VDC: 0.21A, max 5 W
PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W; Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less; Protection Level: IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing; Dimensions: 351.3 mm × 113.5 mm × 115.2 mm (13.83″ × 4.47″ × 4.53″); : Approx. 1.77 kg (3.90 lb); VCA Range for Humans: 28 m; VCA Range for Vehicles: 84 m
